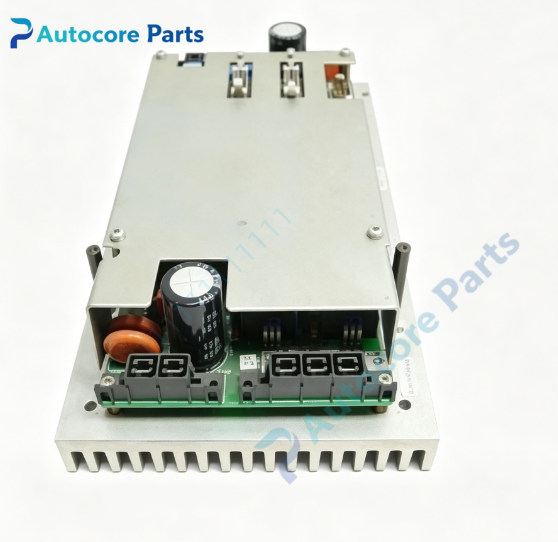

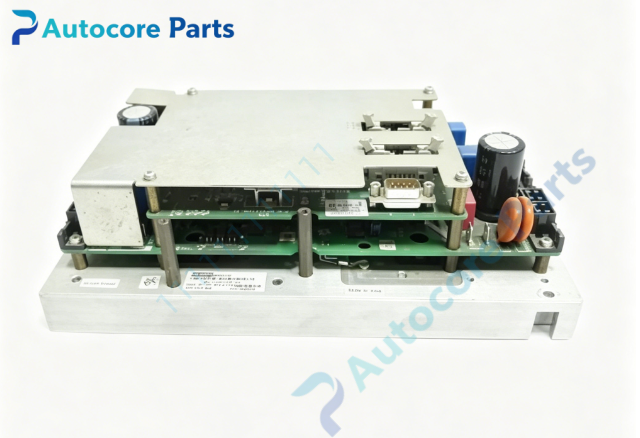

Kollmorgen PRD-0046000F-23 Servo Drive Spare Part

Technical Specifications

Model:PRD-0046000F-23

Brand:Kollmorgen

Part No:PRD-0046000F-23

Product type:Digital servo amplifier

Input voltage:3 phase 400V AC

Continuous output current:15A RMS

Peak output current:23A

Rated apparent power:11kVA

Dimension:320mm185mm105mm

Weight:4.6kg

Feedback interface:Resolver, incremental encoder

Mounting:Cabinet panel mounting

Cooling:Air cooling

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

PRD-0046000F-23 belongs to Kollmorgen PRD servo drive family,matched with Kollmorgen AKM,6SM series brushless servo motors,widely used in CNC machine tools,packaging machinery,printing equipment and multi-axis positioning automation systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

PRD-0046000F-23 is panel-mounted digital servo amplifier.It adopts four-quadrant regenerative braking control,supports torque,speed and position operating modes,accept ±10V analog command,step/direction signal or fieldbus command.Resolver or incremental encoder feedback realizes high precision closed-loop motion control.Built-in auto-tuning and electronic gearing function;overcurrent,overvoltage,undervoltage,overtemperature protection,parameter setting and motor tuning can be completed by dedicated software.

Installation

Install PRD-0046000F-23 inside electrical cabinet by panel mounting.Connect three-phase AC power wiring,motor power cable,feedback cable and control signal wiring.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑400V AC three phase power terminal

‑3 phase motor power output terminal

‑Resolver / incremental encoder feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 service port

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT four-quadrant power stage,integrated dynamic braking circuit,multi fault protection circuit,air cooling,strong overload capacity and fast dynamic response.

Feature

PRD-0046000F-23 is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,feedback circuit failure,cooling fan failure,auxiliary power breakdown,connector corrosion.Test DC bus voltage,three-phase output balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no rotation,position drift,axis abnormal vibration,positioning inaccuracy.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen legacy servo amplifier spare replacement.

Product Brief

PRD-0046000F-23 is Kollmorgen PRD series compact servo amplifier,11kVA rated power,15A continuous output,matched with AKM /6SM servo motors for CNC and multi-axis automation systems.Confirm power rating,feedback type and control signal before ordering.ESD protection required during handling and installation.
