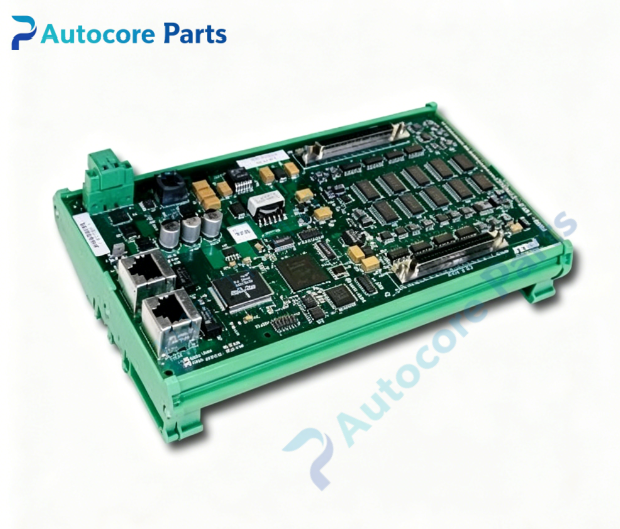

Kollmorgen RMB-10V2-SYNQNET SynqNet Remote Motion Block Spare Part

Technical Specifications

Model:RMB-10V2-SYNQNET

Brand:Kollmorgen

Part No:RMB-10V2-SYNQNET

Product type:SynqNet Remote Motion Block (Motion control adapter module)

Input voltage:24V DC

Analog output:±10V analog command signal,4 axes

Encoder channel:4 channel digital encoder feedback

Dimension:263mm58mm28mm

Weight:0.43kg

Communication interface:SynqNet

Mounting:DIN rail mounting

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE

System compatibility

RMB-10V2-SYNQNET belongs to Kollmorgen SynqNet motion control accessory family.It can connect traditional ±10V analog servo amplifiers to SynqNet motion network,support up to 4 axes analog drives,compatible with Kollmorgen 04S,64WKS,PRD series analog servo drives.Widely used for old CNC machine renovation,packaging machine,printing press multi-axis synchronous control.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

RMB-10V2-SYNQNET is a remote motion block for SynqNet network.It realizes bidirectional conversion between SynqNet digital bus signal and ±10V analog speed/torque command. It collects encoder position feedback from each axis and upload to SynqNet motion controller.Each module supports 4 independent axes,equipped with DAC analog output and digital encoder receiving circuit,realize high precision multi-axis synchronous motion control without replacing original analog servo drives.

Installation

Install RMB-10V2-SYNQNET on standard DIN rail inside electrical cabinet.Connect 24V DC power supply,SynqNet bus cable,±10V analog command cable and encoder feedback cable.Fasten wiring terminals,complete shielding and grounding inspection before power-on test.

Interface

‑24V DC power terminal

‑SynqNet bus port

‑±10V analog output terminal (4 axes)

‑Digital encoder feedback port (4 axes)

‑Digital input and output terminal

‑Shield grounding terminal

Feature

RMB-10V2-SYNQNET is obsolete Kollmorgen spare part.Typical faults:bus transceiver damage,DAC circuit failure,encoder receiving channel fault,power circuit damage,connector corrosion.Test 24V power supply,SynqNet communication and analog output signal before replacement.

Diagnostic

Module faults will trigger bus node offline,analog command loss,position feedback abnormal,axis synchronization error;machine axis jitter,position deviation,intermittent motion stop.

Built‑in function:Realize conversion between SynqNet digital bus and analog servo ±10V signal,collect encoder feedback,connect legacy analog servo drives to SynqNet motion control network,as Kollmorgen SynqNet remote motion block spare replacement.

Product Brief

RMB-10V2-SYNQNET is Kollmorgen SynqNet remote motion block,support 4 axes ±10V analog servo connection,used for legacy analog servo system upgrading and multi-axis synchronous motion control.Confirm axis quantity,encoder signal type and bus topology before ordering.ESD protection required during handling and installation.
