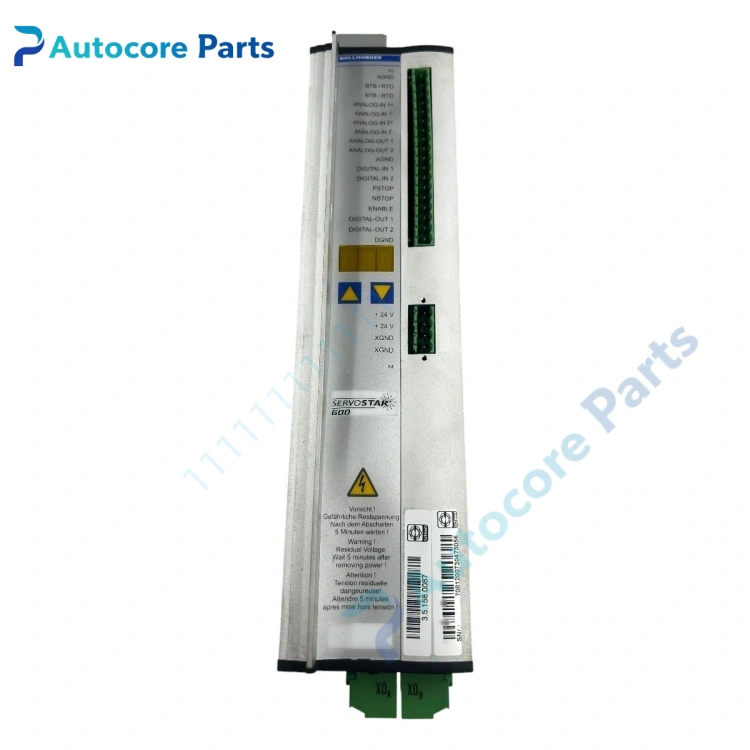

Kollmorgen Servostar 20A Servo Drive

Feature & Principle

It is Kollmorgen SERVOSTAR 620 series full digital servo amplifier with 20A continuous rated current. It executes high-speed closed-loop control for torque, speed and position. It supports multiple feedback signals including resolver, incremental encoder and SFD. Built-in auto-tuning function simplifies load matching, integrated brake chopper and DC bus sharing function for multi-axis system. This model is discontinued and widely used for maintenance replacement of old CNC machines, packaging equipment and gantry automation.

Specifications

Model: Servostar 20A (SERVOSTAR 620) Brand: Kollmorgen Continuous output current: 20 A RMS Peak output current: 40 A Input: 3 × 208-480 VAC Control modes: Torque, velocity, position Feedback: Resolver, incremental encoder, SFD Switching frequency: 8 kHz Protection: Overcurrent, overvoltage, overtemperature, short circuit Mounting: Panel mount Protection class: IP20 Application: CNC machine, packaging machine, gantry, robotic automation Certification: CE, UL

Components & Diagnostics

Main power board, control CPU board, gate drive circuit, brake unit, encoder interface, status LED indicators. Common faults: output current imbalance, encoder feedback loss, overcurrent alarm, communication failure, power board burnout.

Product Brief

Servostar 20A servo amplifier, Kollmorgen SERVOSTAR 620 digital motion spare widely used for CNC and automation equipment overhaul and replacement.
