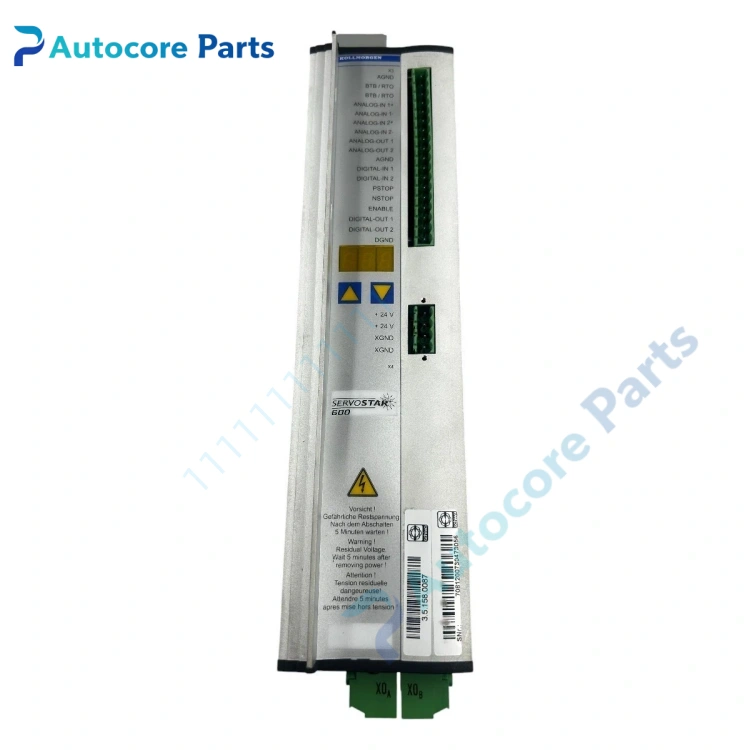

Kollmorgen SERVOSTAR 606 Servo Drive

Feature & Principle

It is Kollmorgen S600 series full digital servo amplifier with 6A continuous rated current. It provides high-speed closed-loop control for torque, speed and position. Compatible with resolver, incremental encoder and SFD feedback. It supports auto-tuning, built-in brake chopper and DC bus sharing for multi-axis configuration. Expansion cards for SERCOS and fieldbus are optional. This model is discontinued and widely used for maintenance replacement of old CNC, packaging and gantry equipment.

Specifications

Model: SERVOSTAR 606 Brand: Kollmorgen Continuous output current: 6 A RMS Peak output current: 12 A Rated power: 4 kVA Input: 3 × 208-480 VAC Control modes: Torque, velocity, position Feedback: Resolver, incremental encoder, SFD Switching frequency: 8 kHz Protection: Overcurrent, overvoltage, overtemperature, short circuit Mounting: Panel mount Protection class: IP20 Application: CNC machine, packaging machine, gantry, robotic automation Certification: CE, UL

Components & Diagnostics

Main power board, control CPU board, gate drive circuit, brake unit, encoder interface, 3-digit LED status display. Common faults: encoder feedback loss, overcurrent alarm, communication failure, power board burnout, unstable operation.

Product Brief

SERVOSTAR 606 servo amplifier, Kollmorgen S600 digital motion spare widely used for CNC and automation equipment overhaul and replacement.
