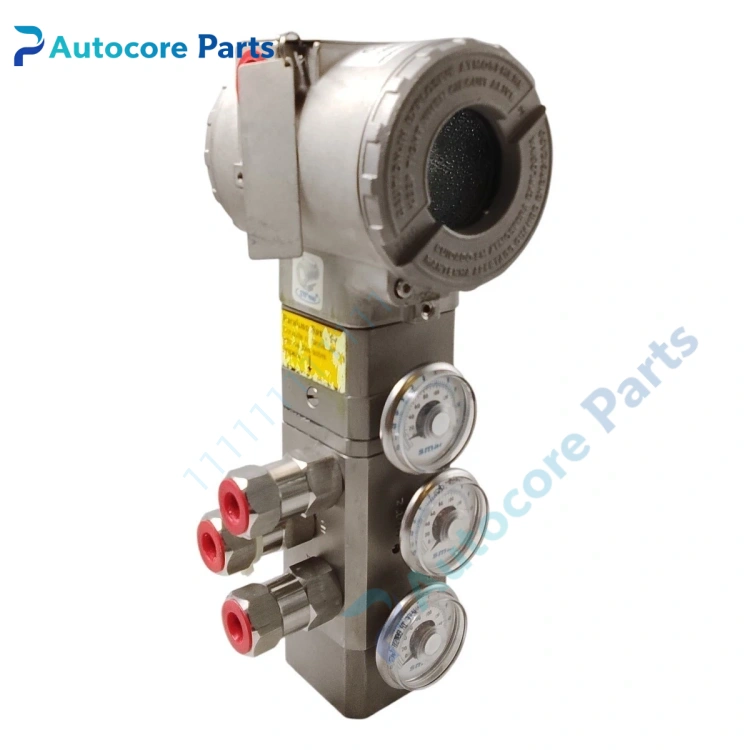

SMAR FY301 Valve Positioner

Feature & Principle

It is SMAR FY301 digital intelligent electro-pneumatic valve positioner belonging to SMAR 301 instrument series. It receives 4-20mA control signal from DCS system and converts it to pneumatic output pressure to drive pneumatic actuator. It adopts piezo flapper pilot valve and non-contact Hall effect position sensor, featuring low air consumption and high positioning accuracy. It supports HART digital communication for remote configuration, auto calibration and valve diagnostic. Multiple flow characteristic curves can be set, compatible with linear and rotary control valves. Explosion-proof and intrinsically safe versions are available for hazardous areas.

Specifications

Model: FY301 Brand: SMAR Signal input: 4-20mA Communication: HART Actuator type: Single acting / Double acting, linear or rotary Air supply pressure: 1.4 ~ 7 bar Position feedback: Non-contact Hall sensor Mounting standard: NAMUR Protection: IP67 Certification: ATEX, IECEx, SIL optional Application: Petrochemical, refining, chemical plant, boiler and pipeline control valve

Components & Diagnostics

Main control board, piezo flapper pilot assembly, Hall position sensor, pneumatic manifold, optional local LCD indicator, explosion-proof housing. Common faults: calibration failure, unstable valve stroke, HART communication offline, pneumatic blockage, feedback sensor drift.

Product Brief

FY301 intelligent valve positioner, SMAR 301 series electro-pneumatic control spare widely used for process control valve overhaul and replacement.
