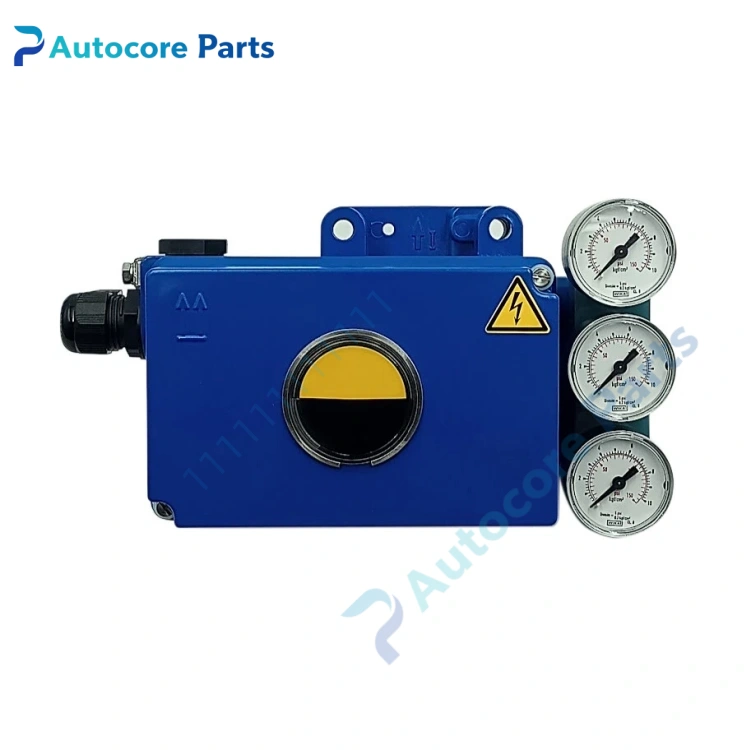

CDNV7ZZZNR Valve Positioner

Feature & Principle

It is a digital intelligent electro-pneumatic valve positioner for process control valves. It receives 4-20mA setpoint signal from DCS system and converts the signal into pneumatic output pressure to drive pneumatic actuator. It adopts non-contact position feedback sensor with low air consumption and high positioning repeatability. It supports HART communication for remote parameter setting, auto-calibration and valve diagnostic, including partial stroke test and friction monitoring. It complies with NAMUR mounting standard and can be fitted on both linear and rotary actuators. Explosion-proof version is available for hazardous process areas.

Specifications

Model: CDNV7ZZZNR Signal input: 4-20mA Communication: HART Actuator type: Single acting / Double acting Air supply: 1.4 ~ 7 bar Position feedback: Non-contact sensor Mounting standard: NAMUR Protection rating: IP67 Certification: ATEX, IECEx, SIL optional Application: Petrochemical, refining, chemical plant, pipeline control valve

Components & Diagnostics

Main control circuit board, pneumatic pilot assembly, position feedback sensor, pneumatic manifold, local operation button and indicator, explosion-proof housing. Common faults: calibration failure, unstable stroke, HART communication offline, pneumatic port blockage, feedback signal drift.

Product Brief

CDNV7ZZZNR intelligent valve positioner, digital electro-pneumatic control spare widely used for process control valve overhaul and replacement.
