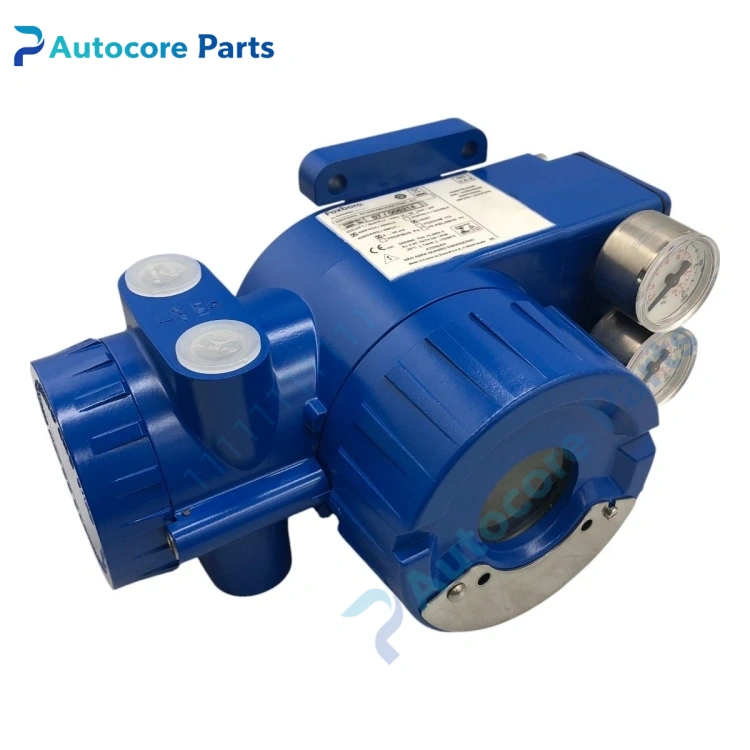

Foxboro Eckardt BHNDMN6BDZNC Valve Positioner

Feature & Principle

It is Foxboro Eckardt SRD960 series flameproof intelligent electro-pneumatic valve positioner. It receives 4-20mA control signal from DCS and converts it into pneumatic output to drive valve actuator. It supports automatic startup and self-calibration, built-in comprehensive diagnostic functions including partial stroke test, friction analysis and valve signature. It adopts rugged Ex d explosion-proof housing, low air consumption and strong anti-vibration performance. It can be mounted on linear or rotary actuators following NAMUR and VDI/VDE standards.

Specifications

Model: BHNDMN6BDZNC Brand: Foxboro Eckardt Series: SRD960 Communication: HART Signal input: 4-20mA Actuator type: Single acting / Double acting Air supply: Max 6 bar Explosion protection: Ex d flameproof Stroke range: 8 ~ 260 mm linear, up to 95° rotary Display: Graphic LCD with local push buttons Application: Petrochemical, oil & gas, refinery, hazardous process control Certification: ATEX, IECEx, SIL optional

Components & Diagnostics

Electro-pneumatic conversion unit, position feedback sensor, main control circuit board, graphic LCD display, pneumatic manifold, explosion-proof enclosure. Common faults: air supply failure, feedback sensor drift, communication offline, pneumatic blockage, calibration failure.

Product Brief

BHNDMN6BDZNC intelligent valve positioner, Foxboro Eckardt SRD960 explosion-proof positioner spare widely used for control valve overhaul and replacement.
