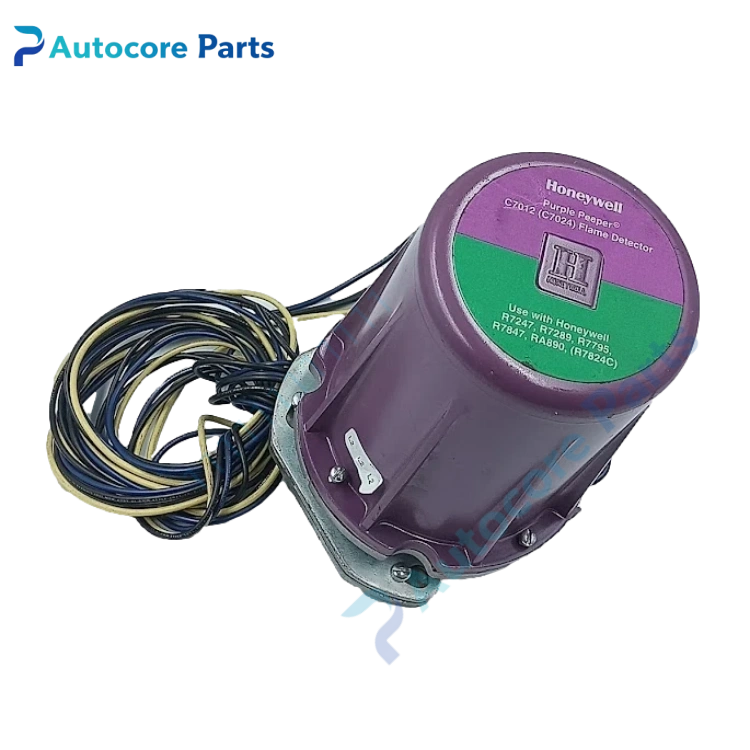

Honeywell C7012 Flame Detector

Feature & Principle

It is Honeywell Purple Peeper C7012 ultraviolet flame detector. The UV tube captures ultraviolet radiation generated during fuel combustion and converts it into electrical signal, then transmits the signal to flame safeguard amplifier for flame status judgment. Self-checking shutter design is available for automatic sensor health verification. Explosion-proof housing variant is suitable for hazardous areas. Fast response helps cut fuel supply once flame loss is detected, widely used for boiler and industrial burner safety monitoring.

Specifications

Model: C7012 Brand: Honeywell Sensing principle: Ultraviolet detection Response time: Less than 0.1 second Housing: NEMA4 / explosion-proof optional Fuel applicable: Natural gas, oil, pulverized coal Mounting: Multi-angle installation Certification: CE, UL optional Application: Industrial boiler, burner management system, furnace flame monitoring

Components & Diagnostics

UV sensing tube, solid-state circuit board, self-check shutter (E/F type), aluminum housing, viewing window, wiring terminal. Common faults: window contamination, UV tube aging, signal loss, shutter failure, wiring open circuit.

Product Brief

C7012 UV flame detector, Honeywell Purple Peeper burner safety spare widely used for boiler and combustion control overhaul and replacement.
