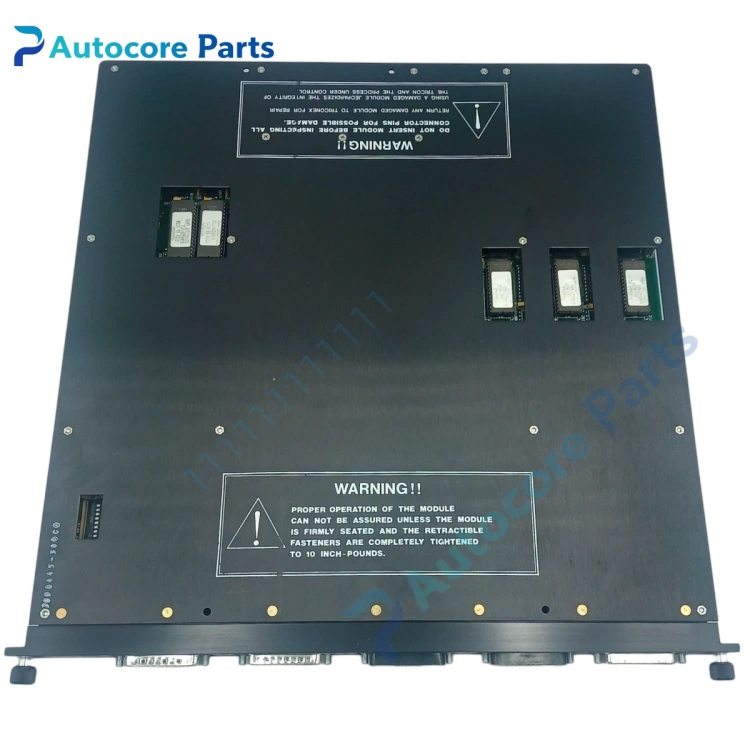

Triconex EICM4119A Communication Module

Feature & Principle

It is Triconex EICM4119A enhanced intelligent communication module for Tricon triple modular redundant safety instrumented system. It offloads communication tasks from the main processor, realizing data interaction between Tricon controller and Modbus devices, TriStation debugging software and printers. Four isolated serial ports support RS232, RS422 and RS485. Each port can be independently configured as Modbus master or slave. 500VDC port isolation protects the safety system from external interference. Online replacement is available without system shutdown.

Specifications

Model: EICM4119A Brand: Triconex Interface: 4 × isolated serial port, 1 × Centronics parallel port Serial standard: RS232 / RS422 / RS485 Supported protocol: Modbus RTU, Modbus ASCII, TriStation Isolation voltage: 500 VDC Mounting: Rack plug-in Application: Petrochemical, power plant, oil & gas Tricon SIS cabinet Certification: CE, SIL optional

Components & Diagnostics

Main control PCB, serial isolation circuit, communication transceiver chip, backplane connector, status LED indicators. Common faults: port communication interruption, module identification failure, signal interference, circuit burnout.

Product Brief

EICM4119A communication module, Triconex Tricon SIS serial communication spare widely used for safety control cabinet overhaul and replacement.
