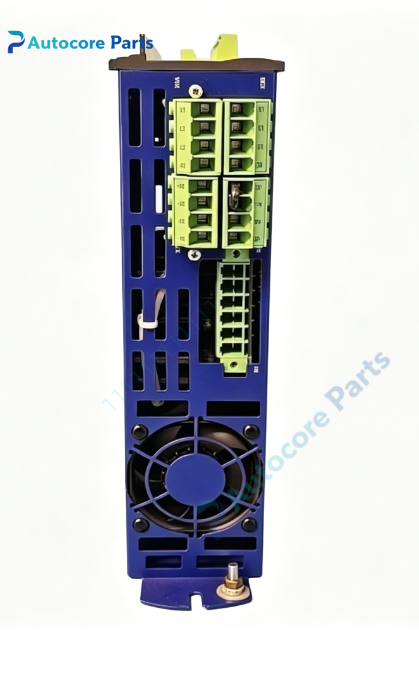

Kollmorgen SERVOSTAR610 10A Servo Drive Spare Part

Technical Specifications

Model:SERVOSTAR610 10A

Brand:Kollmorgen

Part No:SERVOSTAR610 10A

Product type:Digital servo amplifier

Input voltage:3 phase 208-480V AC,50/60Hz

Continuous output current:10A RMS

Peak output current:20A RMS

Rated apparent power:8.1kVA

Dimension:220mm70mm165mm

Weight:2.1kg

Feedback interface:Resolver, incremental encoder,SFD sine encoder

Mounting:Cabinet panel mounting

Cooling:Natural convection

Protection class:IP20

Operating temperature:0~40℃

Storage temperature:-20~70℃

Relative humidity:5~95% non-condensing

Certification:CE,UL

System compatibility

SERVOSTAR610 10A belongs to Kollmorgen SERVOSTAR600 servo drive family,matched with Kollmorgen AKM,6SM series brushless servo motors,widely used in CNC machine tools,engraving equipment,packaging machinery and medium-duty positioning automation systems.This is discontinued industrial spare part for equipment overhaul and maintenance.

Function

SERVOSTAR610 10A is panel-mounted digital servo amplifier.It adopts four-quadrant regenerative braking control,supports torque,speed and position operating modes,accept ±10V analog command,step/direction signal or optional fieldbus card command.Resolver,incremental encoder or SFD sine encoder feedback realizes high precision closed-loop motion control,supports multi-axis shared DC bus connection.Built-in auto-tuning and electronic gearing function;overcurrent,overvoltage,undervoltage,overtemperature protection,parameter setting and motor tuning can be completed by dedicated software.

Installation

Install SERVOSTAR610 10A inside electrical cabinet by panel mounting.Connect three-phase AC power wiring,motor power cable,feedback cable and control signal cable.Fasten terminals,complete shielding and grounding inspection before power-on test.

Interface

‑208-480V AC three phase power terminal

‑3 phase motor power output terminal

‑Resolver / incremental encoder / SFD feedback connector

‑±10V analog command / step direction port

‑Digital input and output terminal

‑RS232 service port

‑Optional fieldbus slot

‑Shield grounding terminal

Circuit feature

Digital closed-loop control design,IGBT four-quadrant power stage,integrated dynamic braking circuit,multi fault protection circuit,natural convection cooling,stable dynamic response.

Feature

SERVOSTAR610 10A is obsolete Kollmorgen spare part.Typical faults:IGBT module damage,electrolytic capacitor aging,feedback circuit failure,auxiliary power breakdown,connector corrosion.Test DC bus voltage,three-phase output balance and feedback signal before replacement.

Diagnostic

Drive faults will trigger overcurrent,overvoltage,undervoltage or overtemperature alarm;motor no rotation,position drift,axis abnormal vibration,positioning inaccuracy.

Built‑in function:Command signal processing,motor power amplification,speed/torque/position closed-loop control,fault safety protection,as Kollmorgen SERVOSTAR600 series servo amplifier spare replacement.

Product Brief

SERVOSTAR610 10A is Kollmorgen SERVOSTAR600 series servo amplifier,8.1kVA rated power,10A continuous output,matched with AKM /6SM servo motors for CNC and medium-duty automation positioning systems.Confirm power rating,feedback type and bus option before ordering.ESD protection required during handling and installation.
