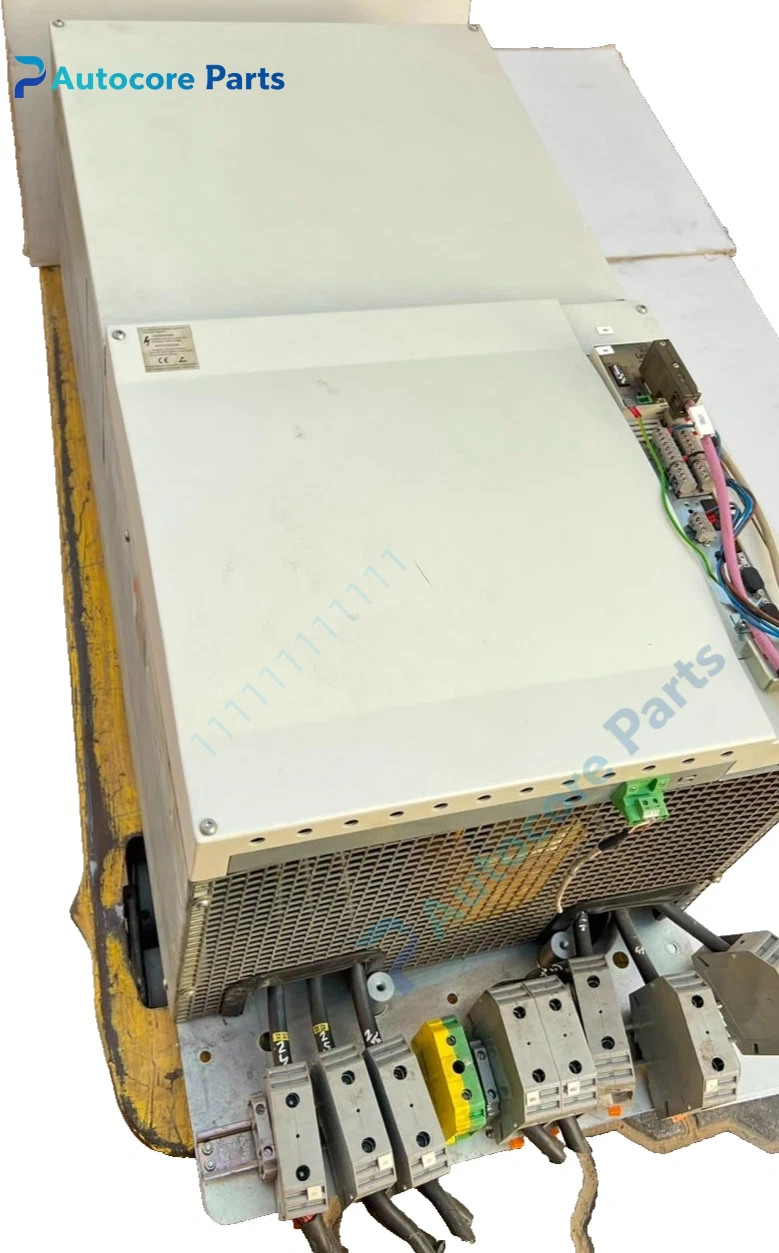

Lenze EVF9336-EVV060 Vector Drive Inverter Unit

Module Feature

EVF9336-EVV060 belongs to Lenze classic 9300 vector series cabinet type high-power frequency inverter. It supports V/F control and closed-loop vector control with encoder feedback, realizes high torque output at low speed. This variant is equipped with EVV060 option configuration, integrated RFI EMC filter, suitable for industrial heavy load continuous operation scenarios. It has rich onboard I/O, CAN system bus, and can expand PROFIBUS, encoder feedback interface. Widely used in extruders, large conveyors, mixers, papermaking and metallurgy main drive systems.

Working principle

Three-phase AC mains input is rectified into DC bus voltage, then IGBT power unit outputs adjustable frequency and adjustable voltage three-phase AC. Closed-loop vector algorithm calculates motor flux and torque separately according to encoder feedback signal, realizes high-precision speed and torque control. Built-in brake circuit interface can match external braking resistor for rapid deceleration.

Onboard components

Three-phase rectifier bridge, IGBT power module, DC bus capacitor bank, drive control motherboard, encoder feedback interface, CAN communication circuit, digital and analog I/O terminal block, EMC filter assembly, cooling fan group, operation panel interface.

LED indicators

Front panel has power, run, fault, alarm LED indicators; the matching operation keypad can display running frequency, current, fault code and parameter group.

Hardware self‑diagnosis

Power-on self-check covers overvoltage, undervoltage, overcurrent, over-temperature, motor overload, encoder signal loss, communication failure. Fault codes are stored in drive memory for query.

Programming software

Parameter configuration, commissioning and fault diagnosis adopt Lenze Engineer software; local parameter modification via EMZ9371BC keypad.

Electrical & Process Parameters

Model:EVF9336-EVV060 Brand:Lenze Device type:9300 Vector Frequency Inverter Rated supply:3‑phase 400V AC Control mode:V/F, closed-loop vector control Communication:CAN bus, optional PROFIBUS Function:Heavy-duty motor speed regulation, torque control for industrial main drive

Mechanical & Structure

Mounting:Cabinet backplane wall mounting Protection class:IP20 Housing:Heavy-duty metal cabinet with internal forced air cooling

Environmental

Operating temperature:0℃ ~ +50℃ (derating above 40℃) Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE compliant Status:Lenze legacy high power vector drive, spare for old automation equipment

Installation

Mount the inverter on the cabinet backplane, reserve enough cooling air channel space. Complete three-phase power wiring, motor cable, shielded encoder cable and control signal wiring. Set motor nameplate parameters, carry out auto-tuning, configure speed or torque mode, then run commissioning.

Interface

Three-phase power terminal, motor output terminal, encoder X8/X9 interface, CAN bus interface, digital/analog I/O terminal, keypad socket.

Diagnostic

Overcurrent alarm:Motor short circuit, cable insulation damage or acceleration time too short. Over-temperature alarm:Fan failure, dust blockage on radiator, insufficient cabinet ventilation. No encoder feedback:Encoder wiring break, wrong signal type setting. Communication interruption:CAN bus terminal resistance missing or cable damage.

Product Brief

Lenze EVF9336-EVV060 9300 series high-power vector inverter, 400V three-phase, closed-loop vector control with EMC filter, used for heavy-duty industrial main drive speed and torque control.
