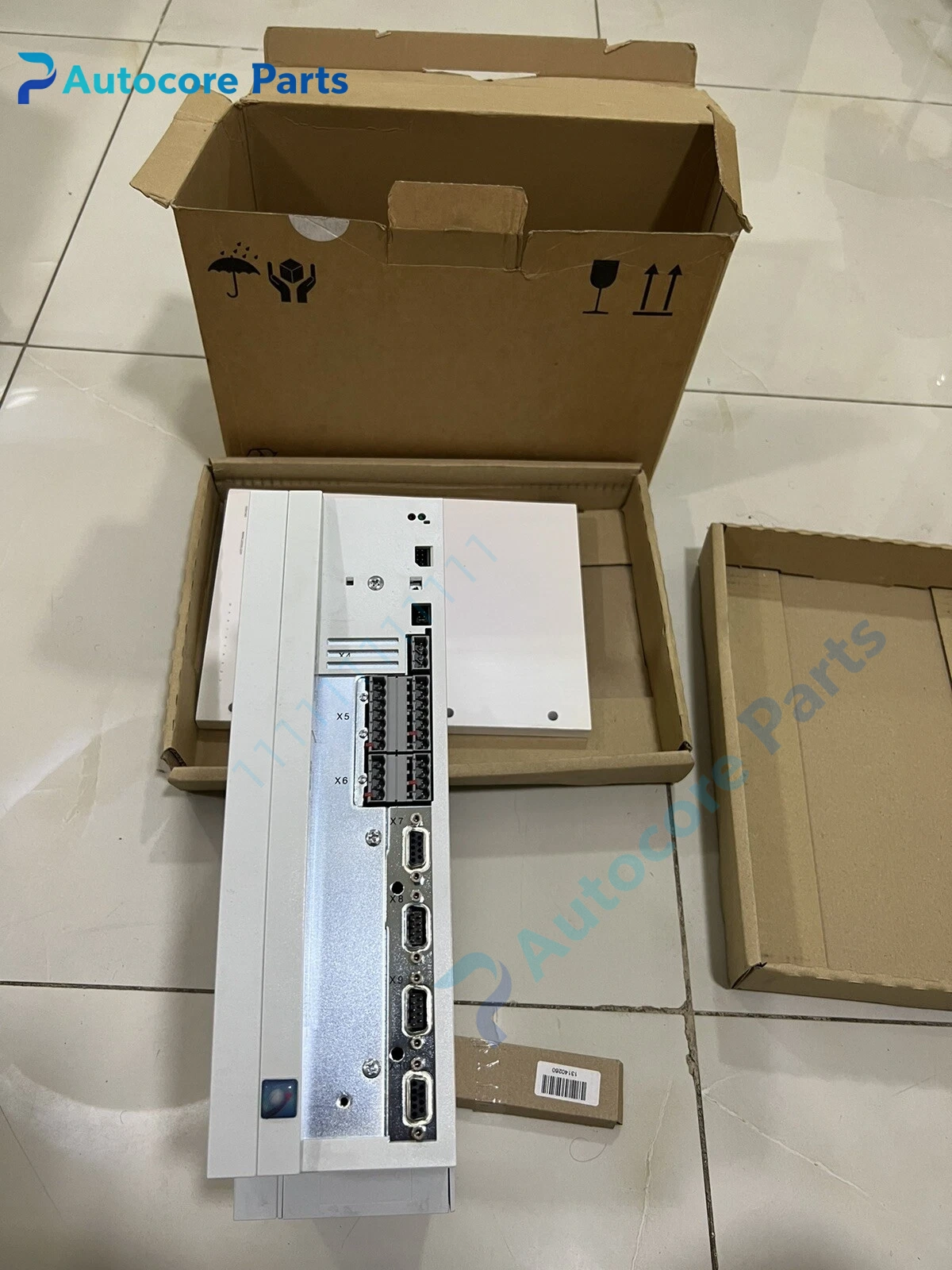

Lenze EVS9323-EP 9300 Servo Position Controller Unit

Feature & Principle

This servo drive is dedicated positioning version of 9300 series. It receives position commands, realizes fixed point movement, homing and electronic cam curve control through encoder feedback. It supports bus communication expansion, rich internal motion function blocks and multiple protection mechanisms, suitable for synchronous and positioning motion requirements.

Specifications

Model: EVS9323-EP Brand: Lenze Series: 9300 Servo Rated power: 1.5kW Input: 3-phase 400V AC Control mode: Servo positioning, electronic cam Enclosure: IP20 Cooling: Internal fan cooling Certification: CE, UL

Components & Diagnostics

Power IGBT module, main control board, encoder interface, status display panel, cooling fan and power signal terminals. Common faults: positioning deviation, overcurrent alarm, encoder signal loss, fan damage and communication failure.

Product Brief

EVS9323-EP servo controller, Lenze motion spare widely used for printing machine, packaging equipment, textile machinery and automated positioning production lines.
