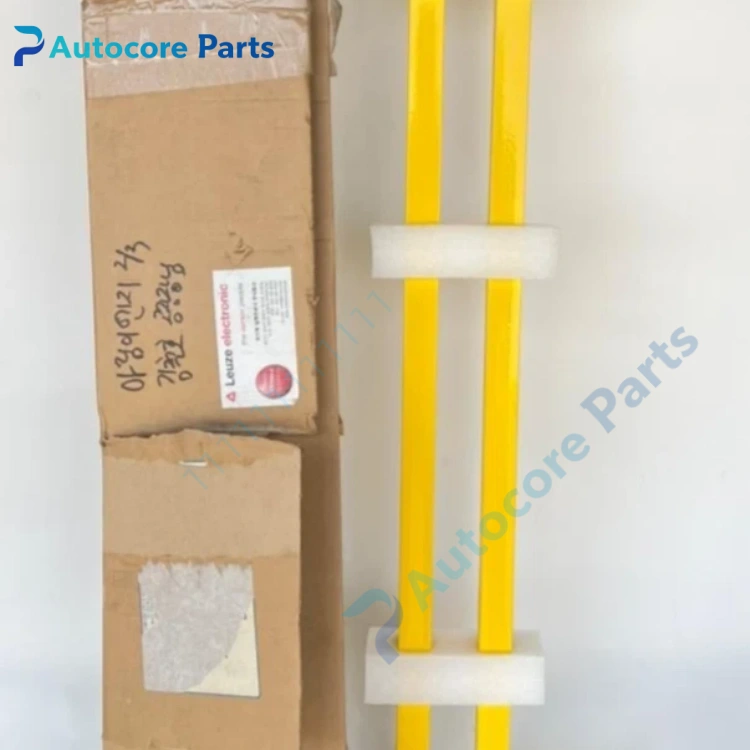

Leuze MLC500T90-900 Safety Light Curtain Transmitter Unit

Feature & Principle

This safety light curtain transmitter sends pulsed infrared beams to the paired receiver. If any beam is interrupted, the safety output will switch off and trigger machine emergency stop. It adopts optical synchronization and meets Type4, SIL3, PL e safety standards for body protection applications.

Specifications

Model: MLC500T90-900 Brand: Leuze Series: MLC500 Type: Transmitter Resolution: 90 mm Protective height: 900 mm Max operating distance: 20 m Safety rating: Type4, SIL3, PL e Power supply: 24VDC Connector: M12 Protection: IP67 Certification: CE

Components & Diagnostics

Infrared LED array, drive circuit, status LED indicator, M12 connector, extruded aluminum housing. Common faults: beam misalignment, lens dirt, power supply failure, internal emitter circuit damage.

Product Brief

MLC500T90-900 light curtain emitter, Leuze machine safety spare widely used for access guarding, robot cell and heavy machinery body protection.
