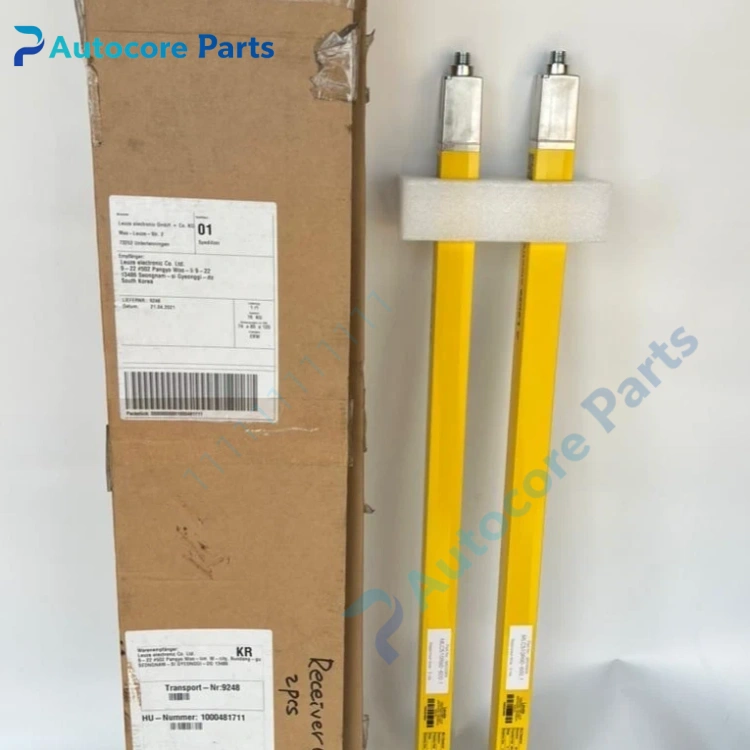

Leuze MLC510R90-600 Safety Light Curtain Receiver Unit

Feature & Principle

This receiver receives infrared beams from the paired transmitter. When the protective beam path is blocked, the safety output signal is cut off to trigger machine emergency stop. It adopts optical synchronization, complies with Type4, SIL3, PL e safety standards for body protection applications.

Specifications

Model: MLC510R90-600 Brand: Leuze Series: MLC500 Type: Receiver Resolution: 90 mm Protective height: 600 mm Max operating distance: 15 m Safety rating: Type4, SIL3, PL e Power supply: 24VDC Connector: M12 Protection: IP67 Certification: CE

Components & Diagnostics

Infrared receiving diode array, signal processing circuit, status LED indicator, M12 connector, extruded aluminum housing. Common faults: beam misalignment, lens contamination, power supply failure, internal receiving circuit damage.

Product Brief

MLC510R90-600 light curtain receiver, Leuze machine safety spare widely used for access guarding, robot cell and heavy machinery body protection.
