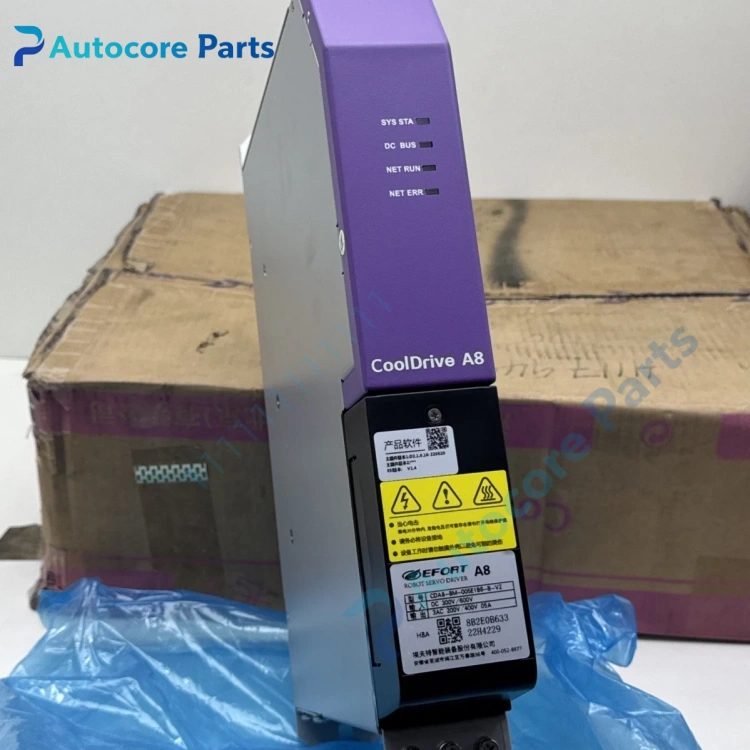

Tsino Dynatron CDA8-BM-005E1B6-B-V2 CoolDrive A8 Servo Drive Unit

Feature & Principle

This servo drive receives motion command from robot controller, outputs three-phase AC power to servo motor. It acquires encoder feedback signal to form closed-loop control, supports high dynamic response. It integrates overcurrent, overvoltage, overtemperature and short-circuit protection, realizes stable joint motion of robot.

Specifications

Model: CDA8-BM-005E1B6-B-V2 Brand: Tsino Dynatron Series: CoolDrive A8 Input: DC 300-600V Output: 3AC 200V Rated current: 05A Control mode: Torque / Speed / Position Communication: Robot dedicated bus Mounting: Book type cabinet installation Protection: IP20 Certification: CE

Components & Diagnostics

IGBT power module, main control board, encoder interface, status indicator, power terminal block. Common faults: overcurrent alarm, encoder feedback error, bus communication interruption, over-temperature trip.

Product Brief

CDA8-BM-005E1B6-B-V2 servo drive, Tsino Dynatron motion spare specially used for EFORT industrial robot joint control.
