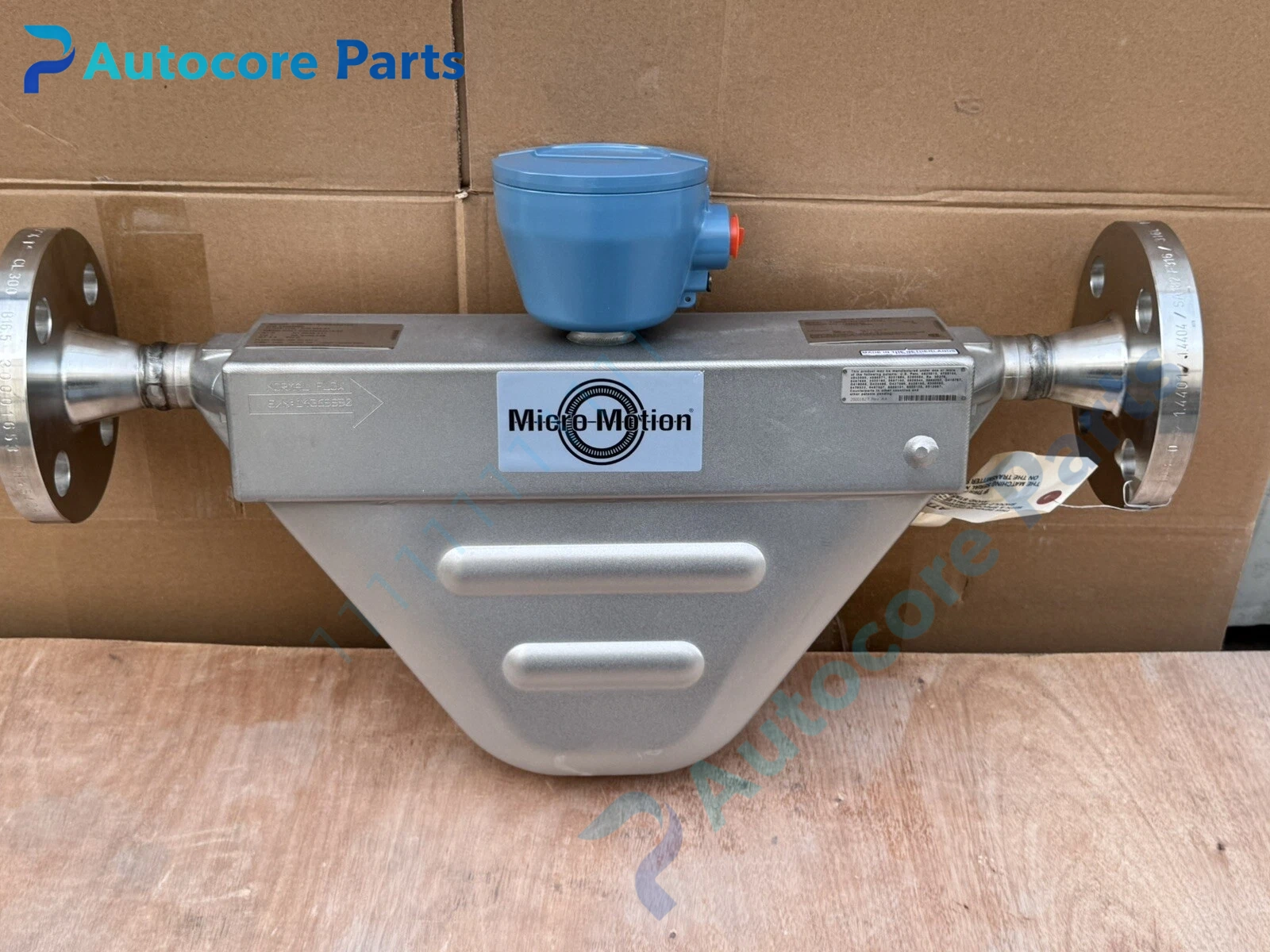

Micro Motion F100SB18CQBAEZ1ZZ Mass Flowmeter Unit

Module Feature

F100SB18CQBAEZ1ZZ is Micro Motion F100 series compact Coriolis mass flowmeter.

It adopts dual bent-tube Coriolis sensing structure, directly measures mass flow, fluid density and process temperature simultaneously, no need for temperature and pressure compensation. Wetted parts are 316L stainless steel, compatible with most liquid, gas and homogeneous slurry media. It supports HART digital communication, and can be paired with local display transmitter or remote electronics. It has high turndown ratio and excellent anti-vibration performance, widely used for custody transfer, batch control and continuous flow monitoring of chemical, oil & gas and food & beverage plant. It is stocked as critical process instrument maintenance spare.

Working principle

Drive circuit excites the two flow tubes to vibrate at resonant frequency.

When fluid flows through the tubes, Coriolis force generates phase shift between the two vibrating tubes. The phase difference is proportional to mass flow rate; vibration frequency changes with fluid density. The pickup sensors capture vibration signal and send to transmitter electronics for calculation, output 4-20mA analog and digital bus signal to DCS/PLC. The meter continuously monitors tube vibration amplitude, drive gain and sensor health status.

Onboard components

Dual measuring flow tubes, drive coil, pickoff sensing coils, hermetically sealed sensor housing, process flanged connections, internal temperature RTD, wiring terminal enclosure and corrosion resistant coating.

LED indicators

Status LED located on matched transmitter assembly, indicating power, flow active, density valid, drive fault and sensor alarm.

Hardware self‑diagnosis

Built-in supervision detects sensor coil open/short, drive gain out of limit, tube excitation failure, temperature sensor fault and signal loss. Configuration, zero calibration and fault checking are completed by Micro Motion ProLink software.

Programming software

ProLink, used for flow calibration, density trim, HART address setting, zero adjustment and event log reading.

Electrical & Process Parameters

Model:F100SB18CQBAEZ1ZZ Brand:Micro Motion (Emerson) Device type:F100 Coriolis mass flow sensor Function:Direct mass flow, density and temperature measurement for process fluid batching, custody transfer and continuous monitoring

Mechanical & Structure

Mounting:Pipeline flange installation Protection class:IP67 / NEMA 4X Housing:Stainless steel sensor body, 316L wetted parts

Environmental

Operating temperature:-40℃ ~ +200℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, ATEX optional Status:Original Emerson process instrument spare

Installation

Isolate process piping before replacement.

Install according to flow direction marking, avoid strong vibration and heat radiation, support piping properly to reduce stress on sensor flanges, perform zero calibration and loop test after commissioning.

Interface

Process flange connection, signal cable terminal block for connection to transmitter.

Diagnostic

Drive over-gain alarm: Empty tube, coating buildup on tube or excessive process noise. No valid density reading: Fluid two-phase mixing, gas entrainment or sensor aging. Flow zero drift: Piping stress, improper zero calibration or vibration interference.

Product Brief

Micro Motion F100SB18CQBAEZ1ZZ mass flowmeter, F100 Coriolis sensor spare for chemical and oil & gas process mass metering system replacement.
