MODICON 110CPU51202 PLC Controller

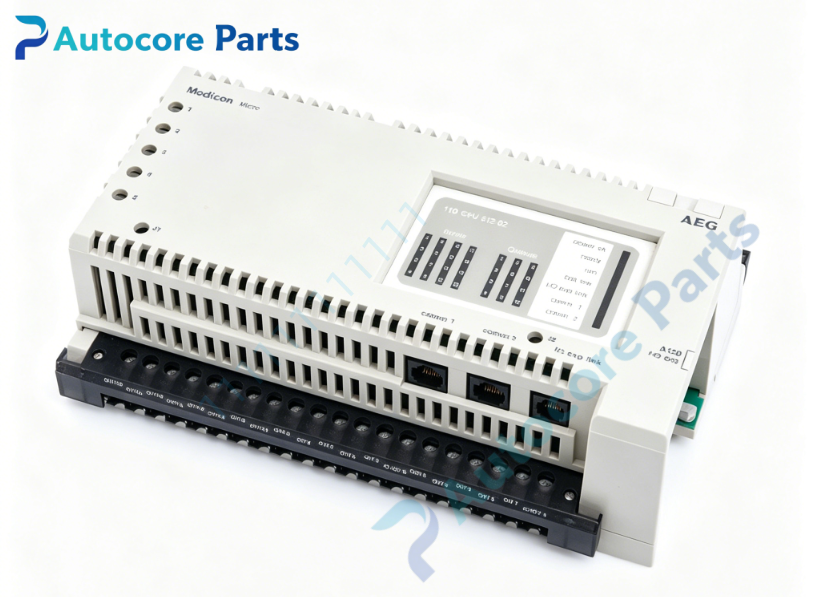

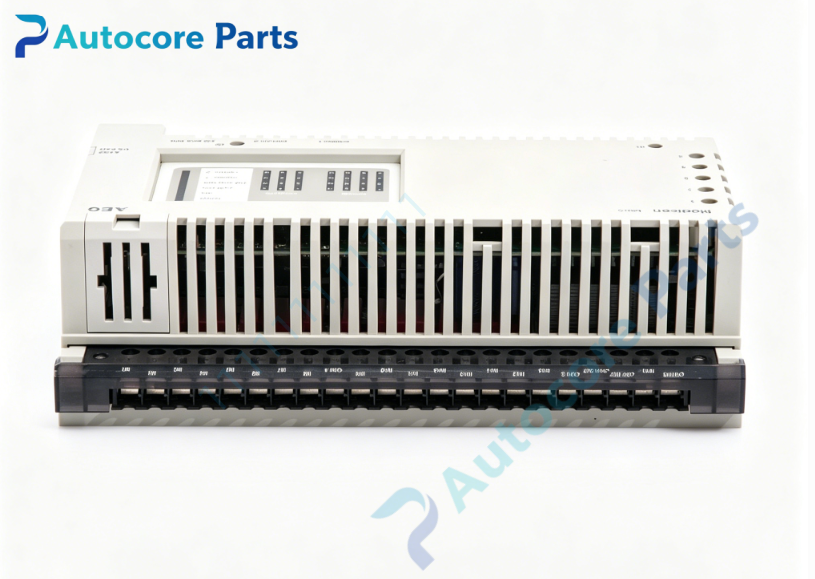

Technical SpecificationsModel:110CPU51202 Brand:MODICON Product Type:Micro Series Compact Integrated PLC CPU User Logic Memory:2K words Data Memory:1920 words Scan Speed:2.5ms per K logic Built-in I/O:16DI,12DO (8 Triac +4 Relay) Communication:2 Modbus/ASCII ports High Speed Input:2 dedicated high-speed DC inputs Input Voltage:164~253V AC Mounting:Panel mounting Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.1kg Dimension:180mm110mm60mm Protection:IP20

System compatibility110CPU51202 belongs to MODICON Micro series compact PLC controller. Compatible with MODICON Micro series expansion I/O modules. It can communicate with HMI, inverter and upper monitoring equipment via Modbus protocol. Suitable for small machinery,conveyor system,packaging equipment,water treatment small automation control renovation and replacement as industrial spare part.

Function110CPU51202 integrated compact PLC controller. It executes LL984 ladder logic program,collects digital switch signals from built-in DI channels and outputs on-off signals through built-in DO to drive relays and solenoid valves. It supports extended I/O expansion,dual Modbus communication,built-in watchdog timer and module self-diagnosis function. Widely used for small equipment logic control, serving as reliable compact control spare part.

InstallationCut off power supply before installation. Fix 110CPU51202 PLC on control cabinet panel with standard mounting clips. Connect power cable,field input/output wiring and communication cable. Download PLC program and complete I/O point verification and communication test before formal operation.

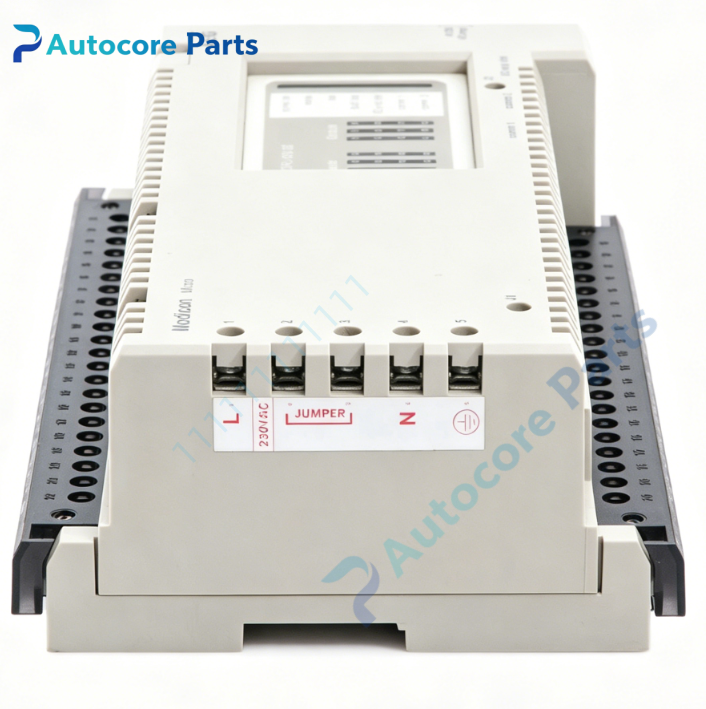

InterfacePower terminal,built-in DI/DO terminal block,Modbus communication port,status and fault LED indicators for 110CPU51202 MODICON Micro PLC controller.

FeatureMODICON 110CPU51202 Micro integrated PLC,compact all-in-one design,built-in discrete input and output,dual Modbus communication ports,relay and triac mixed output,hardware watchdog protection,panel mounting design for small cabinet,IP20 housing protection for industrial workshop environment. This discontinued legacy industrial spare part used for old MODICON Micro PLC system maintenance and replacement.

DiagnosticPLC no power: check AC input power supply,fuse and terminal loose for 110CPU51202. CPU run stop fault: check program error,memory fault and hardware abnormality. Input signal no response: check field sensor wiring and sensor power supply. Output cannot act: inspect output load fault,burned relay or triac damage. Communication failure: check Modbus cable,terminal resistor and station address setting.

Product Brief110CPU51202 is MODICON Micro series compact integrated PLC CPU controller. Equipped with built-in I/O and dual Modbus ports,used for small automation machinery logic control,classic spare part for legacy MODICON industrial automation equipment overhaul.
