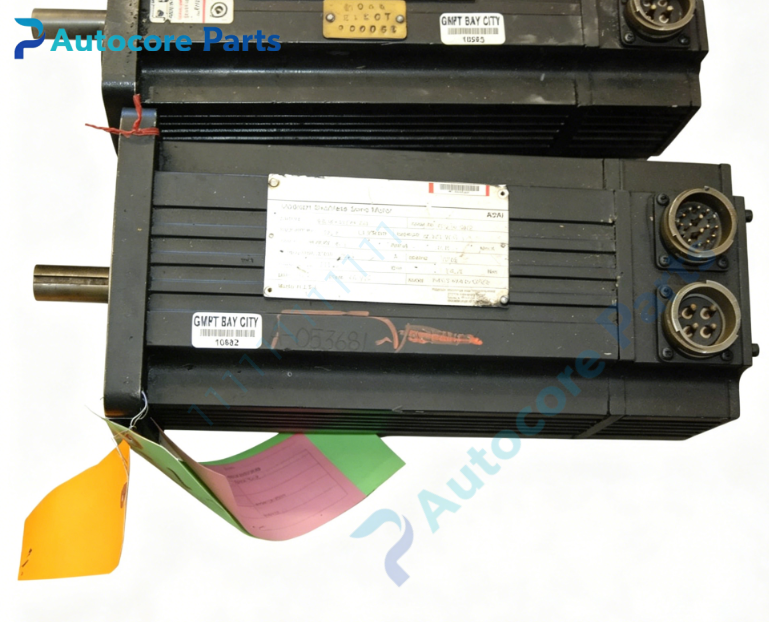

MODICON 563K-AC0-F0V0 Servo Motor

Technical SpecificationsModel:563K-AC0-F0V0 Brand:MODICON Product Type:563K Series AC Brushless Servo Motor Control Mode:Digital closed-loop servo control Feedback:Built-in high resolution encoder Cooling:Natural cooling Mounting:Flange mounting Operating temperature:0℃ ~ +40℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:3.7kg Dimension:220mm130mm110mm Protection:IP65

System compatibility563K-AC0-F0V0 belongs to MODICON 563K series AC servo motor. Compatible with MODICON MM series motion processor modules and supporting servo drives. It works with MODICON PLC to realize high-precision positioning and synchronous motion. Suitable for machine tool,packaging machinery,textile equipment,automated assembly line motion control renovation and replacement as industrial spare part.

Function563K-AC0-F0V0 brushless AC servo motor. It receives speed and position command signals from servo drive,converts electrical signal into mechanical rotation. Built-in encoder feeds back real-time position and speed to form closed-loop control. It features fast response,stable torque output,used for precise positioning,electronic cam and multi-axis synchronous operation. Widely used for high-precision motion drive of automation equipment, serving as reliable servo motor spare part.

InstallationCut off servo drive power before installation. Fix 563K-AC0-F0V0 servo motor on mechanical flange. Connect power cable and encoder feedback cable to servo drive. Confirm wiring sequence,set motor parameters,complete servo tuning and motion test before formal operation.

InterfaceMotor power terminal,encoder feedback terminal,grounding terminal for 563K-AC0-F0V0 MODICON AC servo motor.

FeatureMODICON 563K-AC0-F0V0 AC servo motor,brushless structure,high dynamic response,encoder closed-loop feedback,IP65 dustproof and waterproof for motor body,flange mounting design,anti-interference design for industrial workshop environment. This discontinued legacy industrial spare part used for old MODICON multi-axis motion automation system maintenance and replacement.

DiagnosticMotor no rotation: check servo power supply,enable signal and wiring sequence for 563K-AC0-F0V0. Motor vibration abnormal: inspect encoder wiring,parameter gain setting and mechanical load stuck. Overheat alarm: check ambient temperature,ventilation and overload condition. Position deviation: inspect encoder damage,cable shielding and grounding. Intermittent fault: check cable aging and connector loose.

Product Brief563K-AC0-F0V0 is MODICON 563K series AC brushless servo motor. It cooperates with MODICON motion control system to realize high-precision positioning and multi-axis synchronous operation,classic spare part for legacy MODICON industrial motion equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
