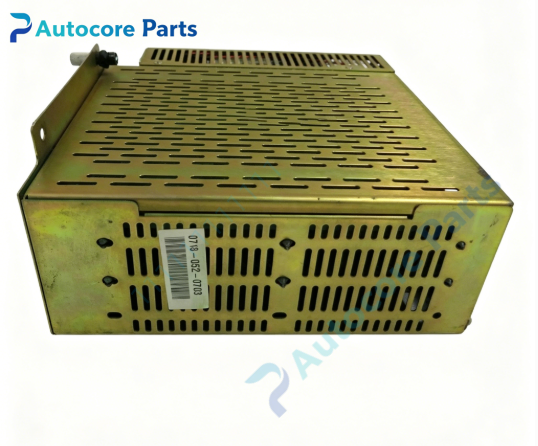

MODICON 92-00688-01 HMI Main Circuit Board

Technical SpecificationsModel:92-00688-01 Brand:MODICON(Schneider) Product Type:PanelMate HMI Main Circuit Board Mounting:Installed inside PanelMate operator panel housing Operating temperature:0℃ ~ +50℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.48kg Dimension:220mm160mm20mm Protection:IP20 (when assembled in panel enclosure)

System compatibility92-00688-01 belongs to MODICON PanelMate HMI series mainboard. Compatible with matching PanelMate touch screen display assembly,can communicate with MODICON 984 and Momentum PLC via serial port. Suitable for chemical plant,water treatment,packaging machinery old on-site operator touch panel maintenance and replacement as industrial spare part.

Function92-00688-01 HMI main control board. It is the core circuit board of MODICON PanelMate operator panel. It processes touch input signal,stores HMI screen project,realizes serial communication with PLC to read/write process data. It drives display to show real-time parameters,alarm information and operation interface. Built-in watchdog and hardware self-diagnosis function. Widely used for on-site human-machine interaction of legacy MODICON automation system, serving as reliable HMI core spare part.

InstallationCut off HMI power before installation. Open PanelMate panel housing,disconnect original board wiring and connector. Install 92-00688-01 mainboard,align all connectors and fix screws. Reconnect display,touch screen and communication cable. Download HMI project,verify screen display and touch function before formal operation.

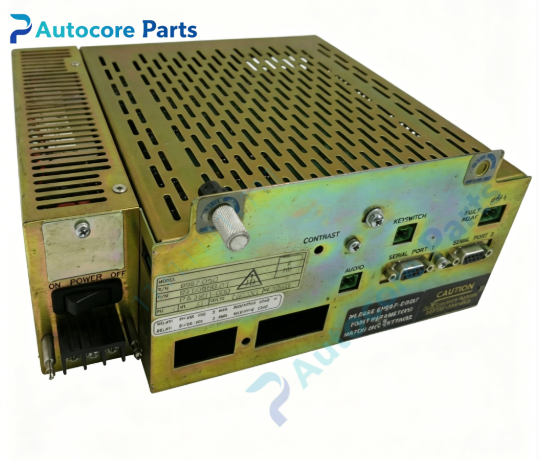

InterfaceDisplay connector,touch screen connector,serial communication port,power terminal,status LED indicators for 92-00688-01 MODICON HMI mainboard.

FeatureMODICON 92-00688-01 PanelMate mainboard,onboard project memory,serial Modbus communication,touch signal processing,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON PanelMate operator panel hardware maintenance and replacement.

DiagnosticPanel no display: check board power supply,backlight cable and mainboard hardware for 92-00688-01. Touch no response: inspect touch screen wiring and touch interface circuit. Project loss: verify onboard backup battery voltage. PLC communication failure: check serial cable,baud rate and board communication chip. Intermittent screen crash: check connector loose and component aging.

Product Brief92-00688-01 is MODICON PanelMate HMI main control circuit board. It is the core board for PanelMate operator touch panel,responsible for screen display,touch input and PLC serial data exchange,classic spare part for legacy MODICON industrial HMI equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
