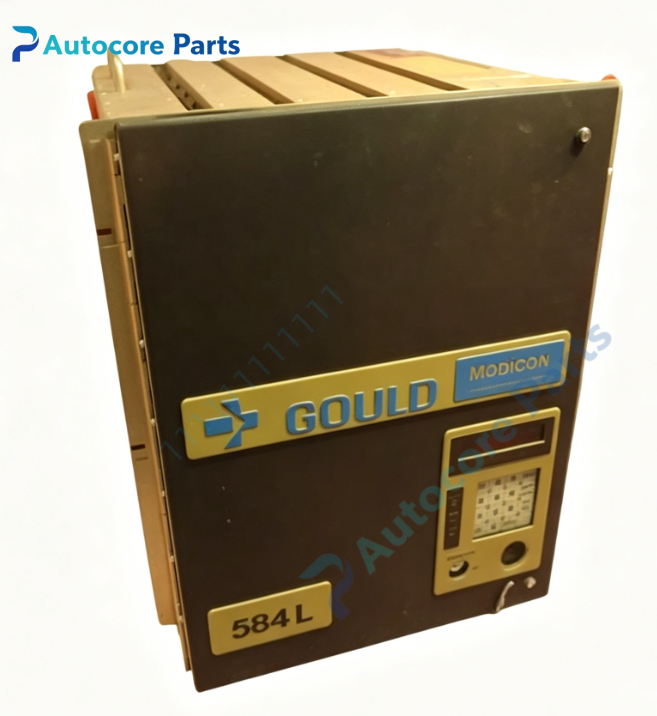

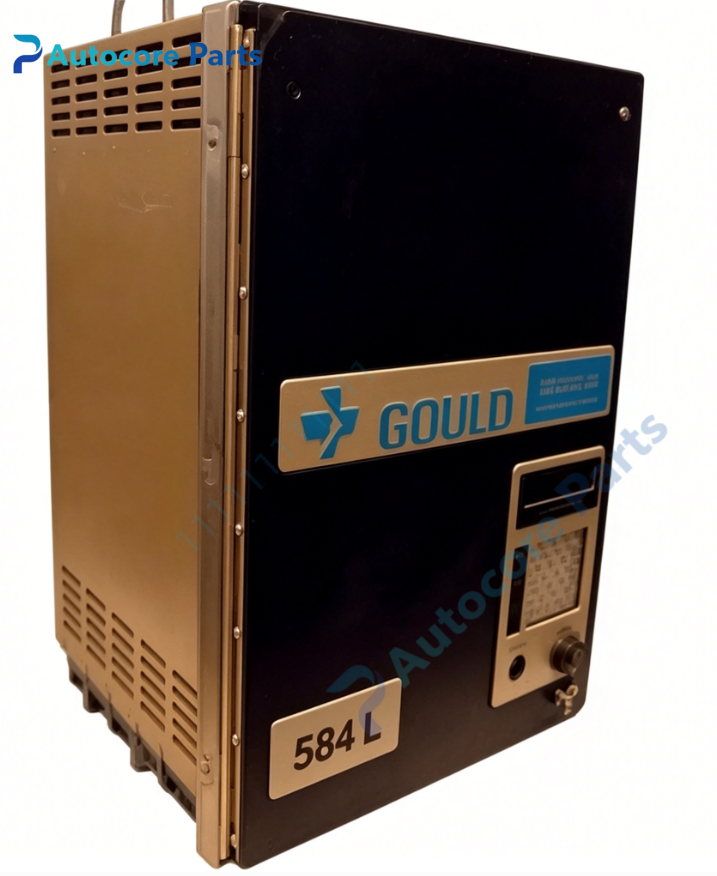

MODICON AS-584L-231 PLC Processor Module

Technical SpecificationsModel:AS-584L-231 Brand:MODICON Product Type:584L Series PLC Central Processor Module Input Power:115/230V AC,50Hz Power Consumption:2.9A Backplane Bus:584L backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.55kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-584L-231 belongs to MODICON 584L series PLC CPU processor. Compatible with MODICON 584L backplane and matching discrete/analog I/O modules. It can connect operator panels and SCADA system via serial communication. Suitable for chemical industry,water treatment,conveyor line,packaging machinery old automation control renovation and replacement as industrial spare part.

FunctionAS-584L-231 PLC central processor module. It executes user ladder logic program,scans I/O signals in real time,calculates control logic and sends instructions to I/O modules. It manages system memory,program storage and serial communication data exchange. Built-in hardware self-diagnosis and fault alarm function for system status monitoring. Widely used as core control unit for legacy MODICON 584L PLC system, serving as reliable CPU spare part.

InstallationCut off rack power before installation. Insert AS-584L-231 CPU module into MODICON 584L backplane slot and lock the card. Check gold finger contact condition. Connect serial communication cable. Download PLC program,configure I/O allocation and communication parameters,complete online running test before formal operation.

InterfaceBackplane bus connector,serial communication port,run/fault/battery status LED indicators for AS-584L-231 MODICON PLC processor module.

FeatureMODICON AS-584L-231 584L CPU,115/230V AC wide power input,classic modular rack design,real-time hardware fault diagnosis,backup battery for program retention,standard single slot rack structure,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON 584L PLC system main control maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-584L-231. PLC fault alarm: check program error,memory failure and I/O short circuit. Serial communication abnormal: check communication cable,station address and shielding grounding. Program lost: inspect backup battery aging and battery replacement. Intermittent offline: check backplane power stability and electromagnetic interference.

Product BriefAS-584L-231 is MODICON 584L series PLC CPU processor. It executes user control logic and manages I/O signal processing for MODICON 584L automation system,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
