MODICON AS-B885-100 Motion Control Module

Technical SpecificationsModel:AS-B885-100 Brand:MODICON(AEG) Product Type:984 Series Servo Motion Control Module Function:Multi-axis position control Indicators:17 LED status & diagnostic indicators Backplane Bus:Modicon 984 backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~80%, non-condensing Weight:1.2kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityAS-B885-100 belongs to MODICON 984 series motion control module. Compatible with MODICON 984 CPU,984 backplane and matching servo drive & servo motors. Suitable for packaging machinery,textile equipment,automated assembly lines multi-axis positioning control renovation and replacement as industrial spare part.

FunctionAS-B885-100 motion control module. It receives motion setpoint commands from MODICON 984 PLC CPU,generates pulse/direction command signals to servo drives for precise axis positioning. It reads encoder feedback signals to complete closed-loop position monitoring. It supports electronic cam,trajectory planning and motion logic. Built-in motion fault detection and hardware self-diagnosis function. Widely used for high-precision multi-axis motion control, serving as reliable motion control spare part.

InstallationCut off rack power and servo power before installation. Insert AS-B885-100 motion module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect servo command cable and encoder feedback cable. Configure axis parameters, motion profile and complete motion test before formal operation.

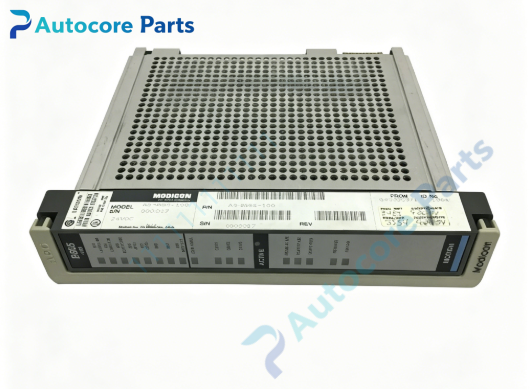

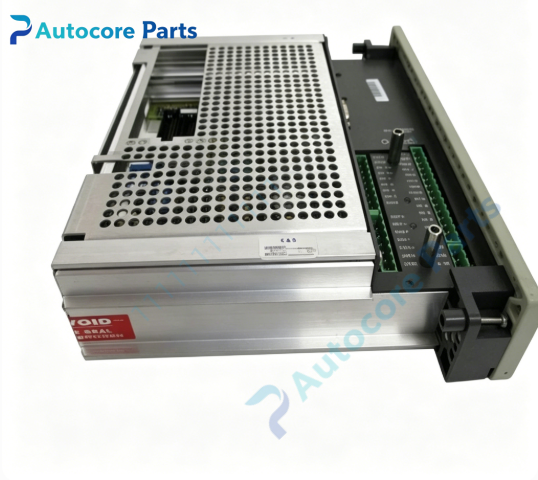

InterfaceBackplane bus connector,servo command/encoder terminal block,17-channel status and fault LED indicators for AS-B885-100 MODICON motion control module.

FeatureMODICON AS-B885-100 motion control card,multi-axis position control,17 LED diagnostic indicators,standard single slot rack design,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON 984 PLC multi-axis motion automation system maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-B885-100. Axis no movement: inspect command wiring,enable signal and motion program logic. Position tracking error: check encoder wiring,axis parameter setting and mechanical jamming. Motion alarm: verify overtravel limit and servo fault. Intermittent position drift: check electromagnetic interference and connector loose.

Product BriefAS-B885-100 is MODICON 984 series motion control module. It generates positioning commands and processes encoder feedback for multi-axis servo motion control,classic spare part for legacy MODICON industrial motion equipment overhaul.
