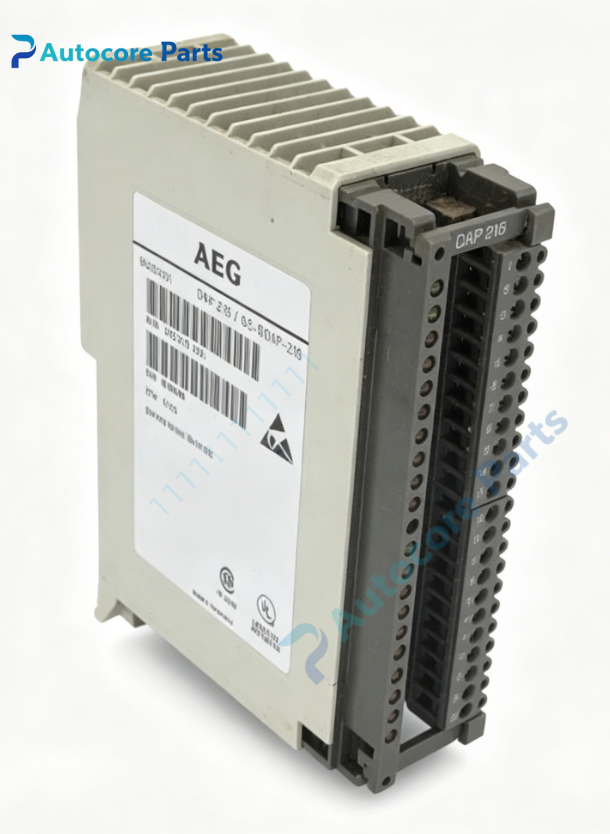

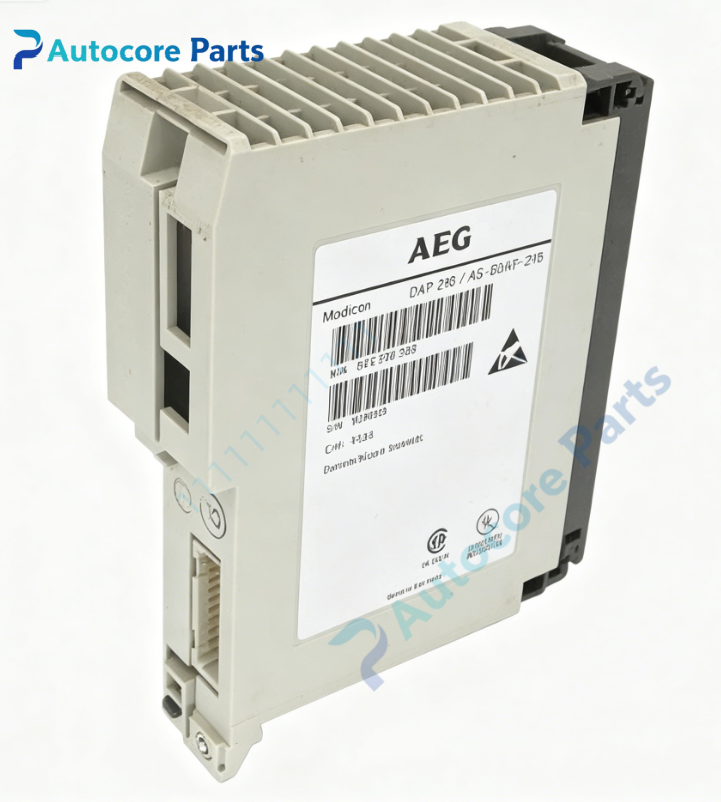

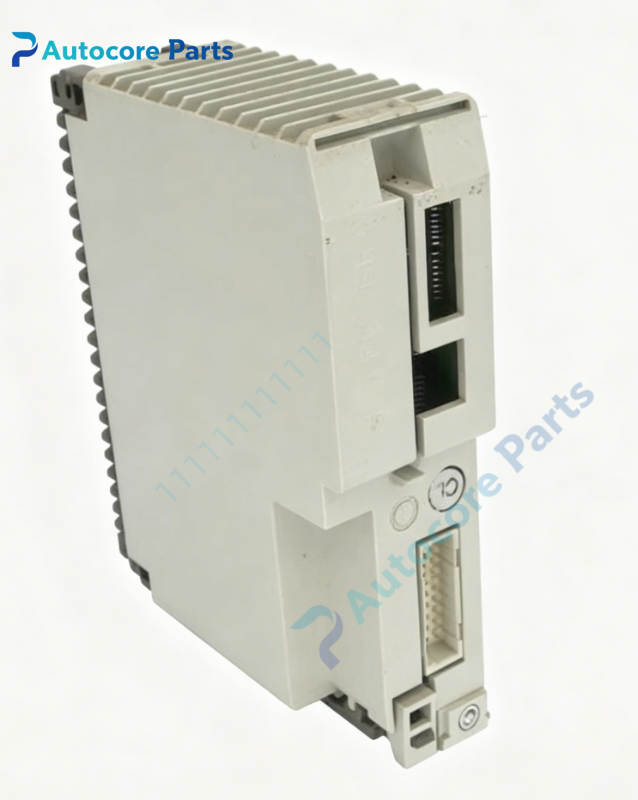

MODICON AS-BDAP-216 16 Channel Digital Output Module

Technical SpecificationsModel:AS-BDAP-216 Brand:MODICON(Schneider/AEG) Product Type:TSX Compact Series 16-Channel Discrete Digital Output Module Channels:16 independent digital output channels Output Signal:24V DC Rated Current:0.5A per channel Backplane Bus:TSX Compact backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:0.45kg Dimension:152mm127mm51mm Protection:IP20

System compatibilityAS-BDAP-216 belongs to MODICON TSX Compact series discrete output module. Compatible with TSX Compact CPU and matching backplane. It can be used for local rack digital signal output. Suitable for packaging machinery,conveyor line,water treatment small automation control renovation and replacement as industrial spare part.

FunctionAS-BDAP-216 16-channel digital output module. It receives digital on/off command from PLC CPU and outputs 24VDC signal to field equipment such as solenoid valves,indicator lights and alarm relays. Built-in overcurrent protection and module hardware self-diagnosis function. Widely used for switching control of field actuators, serving as reliable digital output spare part.

InstallationCut off rack and field load power before installation. Insert AS-BDAP-216 module into TSX Compact backplane slot and lock the card. Check gold finger contact condition. Connect field output wiring to terminal block. Configure channel allocation,verify switching action and complete function test before formal operation.

InterfaceBackplane bus connector,field digital output terminal block,channel status and fault LED indicators for AS-BDAP-216 MODICON discrete output module.

FeatureMODICON AS-BDAP-216 digital output module,16 points 24VDC output,per channel 0.5A load capacity,compact TSX rack design,overcurrent protection,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON TSX Compact PLC digital switching control maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for AS-BDAP-216. No output action: check field wiring,load power supply and PLC program logic. Channel short circuit alarm: inspect load short circuit and wiring damage. Intermittent output failure: check connector loose and electromagnetic interference. LED fault warning: verify backplane power and module hardware damage.

Product BriefAS-BDAP-216 is MODICON TSX Compact series 16-channel 24VDC discrete output module. It outputs switching signals to control valves,lights and relays for TSX Compact PLC system,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
