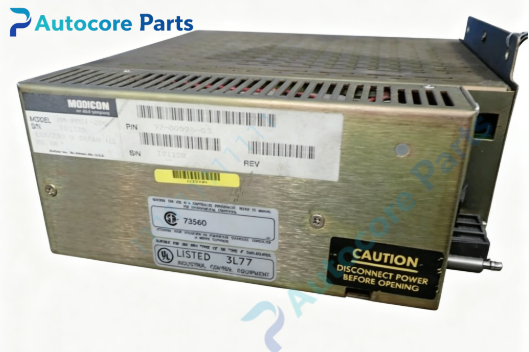

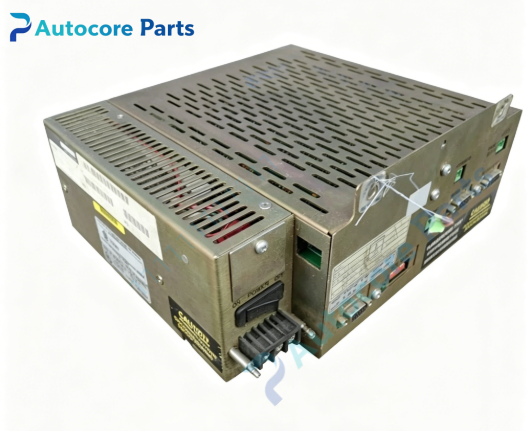

MODICON MMPMC1200 HMI Main Circuit Board

Technical Specifications

Model: MMPMC1200 Brand: MODICON(AEG/Schneider) Product Type: PanelMate CRT HMI Main Control Board Mounting: Installed inside PanelMate operator panel housing Operating temperature: 0℃ ~ +50℃ Storage temperature: -20℃ ~ +70℃ Relative humidity: 5%~95%, non-condensing Weight: 0.45kg Dimension: 225mm165mm22mm Protection: IP20 (when assembled in panel enclosure)

System compatibility

MMPMC1200 belongs to MODICON PanelMate series HMI mainboard. Compatible with PanelMate CRT display assembly, supports serial Modbus communication with MODICON 984 PLC series. Suitable for replacement and maintenance of old CRT operator panels in chemical plants, water treatment plants and power plants.

Function

MMPMC1200 HMI main control circuit board. It is the core board of MODICON PanelMate CRT operator panel. It processes touch and key input signals, stores HMI screen project, exchanges real-time process and alarm data with PLC through Modbus serial port, and drives CRT display. Onboard backup battery keeps project and runtime data when power fails. Built-in watchdog and hardware self-diagnosis function. Widely used for human-machine interaction in legacy MODICON process control system.

Installation

Cut off HMI power before installation. Open PanelMate panel housing, disconnect original board connectors. Install MMPMC1200 mainboard, fix screws and reconnect CRT display, touch/keyboard and Modbus communication cable. Download HMI project, verify screen display, touch response and PLC communication before formal operation.

Interface

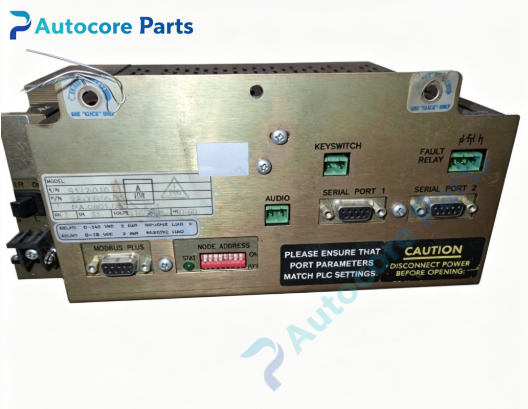

CRT display connector, touch/keyboard connector, Modbus serial port, power terminal, run/fault status LED indicators for MMPMC1200 MODICON HMI mainboard.

Feature

MODICON MMPMC1200 PanelMate mainboard, onboard project memory, Modbus serial communication, CRT display drive, battery backup for project retention, hardware watchdog, self-diagnosis, industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON PanelMate CRT operator panel hardware maintenance and replacement.

Diagnostic

No CRT display: check board power supply, backlight cable and mainboard hardware for MMPMC1200. Touch/key no response: inspect touch/keyboard wiring and signal circuit. Project lost after power off: check backup battery voltage and connector contact. Modbus communication failure: verify serial cable, baud rate, parity and shielding grounding. Intermittent screen crash: check loose connectors and component aging.

Product Brief

MMPMC1200 is MODICON PanelMate series CRT HMI main control board. It is the core circuit board for PanelMate CRT operator panel, responsible for CRT display, touch input and Modbus data exchange with Modicon PLC, classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer:

All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
