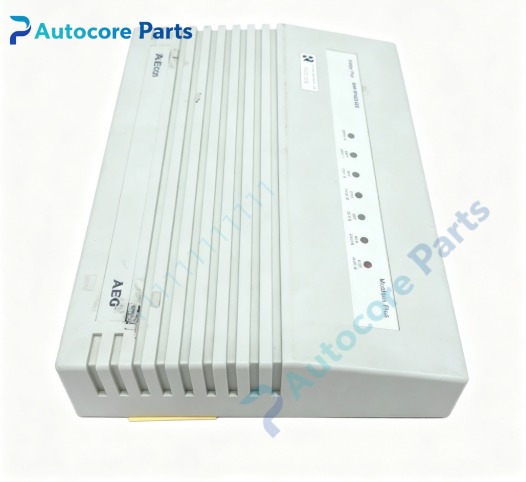

MODICON NW-BP85-002 Modbus Plus Bridge Module

Technical SpecificationsModel:NW-BP85-002 Brand:MODICON(Schneider) Product Type:Modbus Plus Bridge / Repeater Module Power Supply:115/230VAC,0.5/0.25A Interface:2×Modbus Plus bus port Mounting:DIN rail mounting Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.2kg Dimension:200mm120mm85mm Protection:IP20

System compatibilityNW-BP85-002 belongs to MODICON Modbus Plus network series bridge module. Compatible with Modicon 984, Quantum, Premium PLC series. It extends Modbus Plus bus distance and increases network nodes. Suitable for chemical plant,water treatment,power plant distributed control network renovation and replacement as industrial spare part.

FunctionNW-BP85-002 Modbus Plus bridge repeater module. It serves as signal repeater and network isolation gateway for Modbus Plus industrial bus. It amplifies bus signal,segments network to reduce communication load,isolates fault network segment to avoid whole network crash. It supports multi PLC node interconnection on Modbus Plus network. Built-in bus monitoring,communication self-diagnosis and fault alarm function. Widely used for distributed Modbus Plus network construction of legacy MODICON automation system, serving as reliable network spare part.

InstallationCut off AC power before installation. Mount NW-BP85-002 on DIN rail and lock. Connect 115/230VAC power wiring. Connect Modbus Plus shielded cable to two bus ports,configure terminal resistance. Set network segment parameters,test bus communication quality before formal operation.

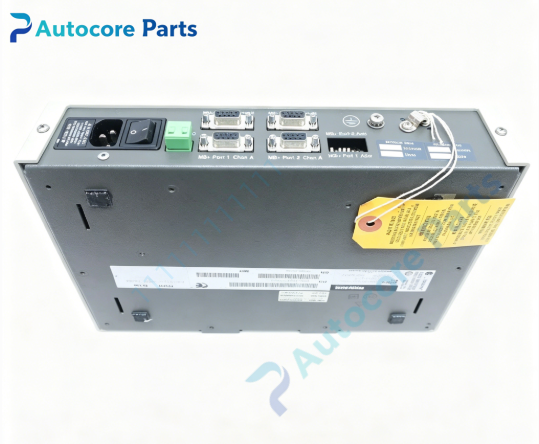

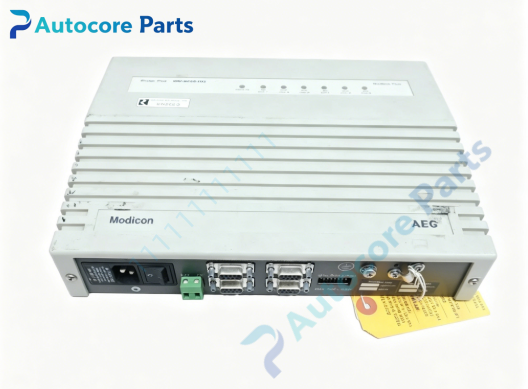

InterfaceAC power terminal block,Modbus Plus bus port A/B,run/fault/bus status LED indicators for NW-BP85-002 MODICON bridge module.

FeatureMODICON NW-BP85-002 Modbus Plus bridge repeater,bus signal amplification,network segment isolation,overload protection,hardware diagnostic LED,DIN rail installation,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON Modbus Plus distributed control network maintenance and replacement.

DiagnosticModule no power: check AC input supply,fuse and wiring for NW-BP85-002. Bus communication break: inspect shielded cable,termination resistor,network node address and grounding. Network segment overload: reduce number of connected PLC nodes. Intermittent communication dropout: check electromagnetic interference and loose connector. Fault LED lit: check module hardware failure.

Product BriefNW-BP85-002 is MODICON Modbus Plus network bridge repeater module. It amplifies bus signal,isolates network segments and expands Modbus Plus network coverage for legacy Modicon PLC distributed control system,classic spare part for legacy MODICON industrial automation equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
