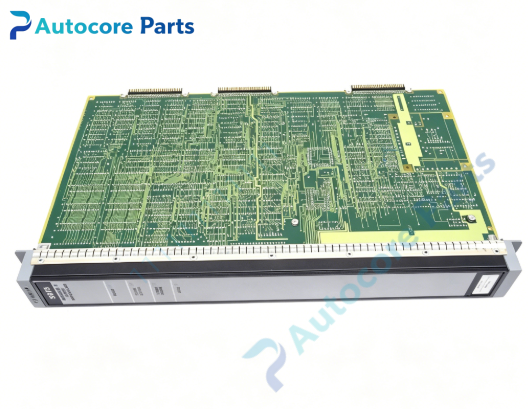

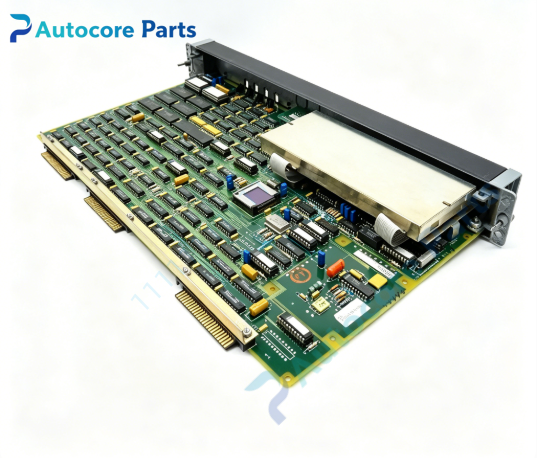

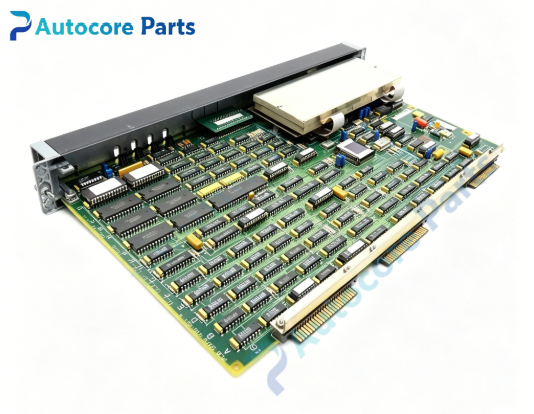

MODICON S975-000 Encoder Counter Module

Technical SpecificationsModel:S975-000 Brand:MODICON Product Type:984 Series High Speed Encoder Counter Module Signal Type:Incremental encoder A/B/Z phase pulse input Max Counting Frequency:1MHz Backplane Bus:Modicon 984 backplane Mounting:Backplane rack slot mount Operating temperature:0℃ ~ +60℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:1.3kg Dimension:260mm140mm30mm Protection:IP20

System compatibilityS975-000 belongs to MODICON 984 series high-speed counter module. Compatible with MODICON 984 CPU,984 backplane and motion control modules. It acquires encoder feedback signals for servo/stepper axis positioning. Suitable for packaging machinery,automated assembly lines,textile equipment high-precision position detection renovation and replacement as industrial spare part.

FunctionS975-000 high speed encoder counter module. It receives A/B/Z quadrature pulse signals from field incremental encoders,counts pulse values and calculates real-time axis position. It transmits position data to MODICON 984 PLC CPU for motion logic calculation. It supports overtravel limit monitoring and position comparison trigger. Built-in hardware self-diagnosis and pulse fault alarm function. Widely used for motion axis position feedback acquisition, serving as reliable high-speed counting spare part.

InstallationCut off rack power and encoder power before installation. Insert S975-000 counter module into MODICON backplane slot and lock the card. Check gold finger contact condition. Connect encoder shielded cable to terminal block. Configure counting mode,axis resolution and complete position tracking test before formal operation.

InterfaceBackplane bus connector,encoder A/B/Z phase terminal block,position status and fault LED indicators for S975-000 MODICON encoder counter module.

FeatureMODICON S975-000 quadrature encoder counter card,1MHz high-speed counting,hardware position capture,standard single slot rack design,industrial anti-interference design. This discontinued legacy industrial spare part used for old MODICON 984 PLC motion axis position feedback maintenance and replacement.

DiagnosticModule not recognized: check rack power supply,backplane contact and module insertion for S975-000. Position value no change: inspect encoder power supply,AB phase wiring and cable breakage. Position tracking error: check pulse resolution parameter and electromagnetic interference. Z phase index signal abnormal: verify Z channel wiring and encoder fault. Intermittent position jump: check shielding grounding and connector loose.

Product BriefS975-000 is MODICON 984 series high-speed encoder counter module. It collects quadrature encoder pulse signals and feeds real-time axis position to MODICON 984 PLC for motion positioning control,classic spare part for legacy MODICON industrial motion equipment overhaul.

Disclaimer: All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
