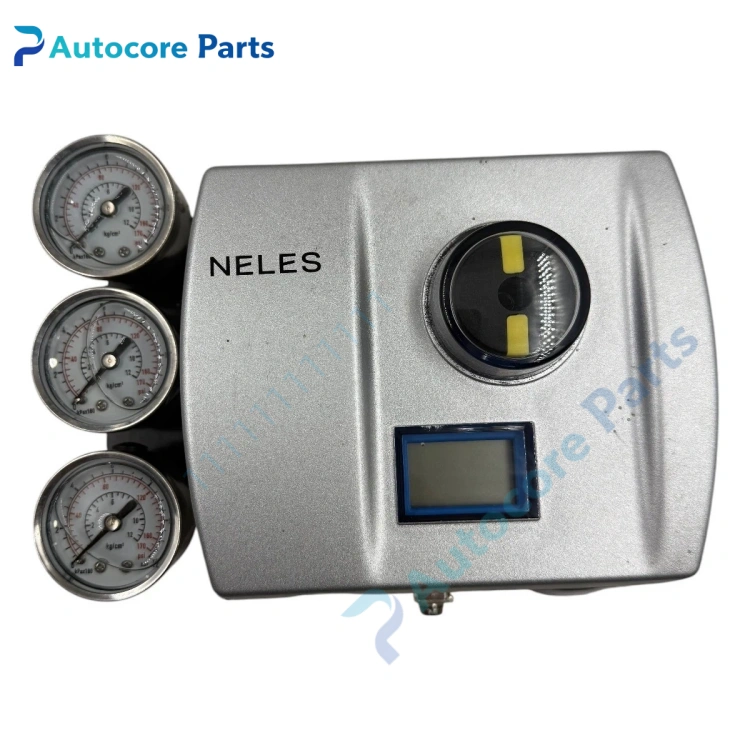

Neles ND9103HZ Smart Valve Positioner

Feature & Principle

It belongs to Neles ND9100 series digital intelligent valve positioner. It receives 4-20mA control signal from DCS, compares the set opening value with the actual valve position feedback signal, adjusts the output air pressure of pneumatic actuator through piezoelectric pilot valve, and realizes closed-loop precise positioning of regulating valve. It supports HART remote parameter setting, automatic calibration, valve signature diagnostic test, can detect valve friction, dead zone and air leakage fault in advance. Low power consumption design, strong anti-vibration performance, suitable for long-term stable operation in harsh process sites.

Specifications

Model: ND9103HZ Brand: Neles (Valmet) Series: ND9100 Input signal: 4-20mA Communication: HART Action type: Single acting Air supply: 0.14 ~ 0.7 MPa Protection class: IP65 Safety certification: SIL2 Diagnostic function: Valve stroke diagnostic, friction monitoring, air leakage alarm Mounting: IEC 60534-6 standard mounting bracket Application: Petrochemical, oil refining, chemical plant, boiler regulating valve flow, pressure and liquid level control Certification: ATEX, IECEx

Components & Diagnostics

Piezoelectric pilot valve, position feedback sensor, main control circuit board, local LCD display, air passage assembly, wiring terminal. Common faults: valve jitter, no air output, HART communication interruption, position deviation, internal air leakage.

Product Brief

ND9103HZ smart valve positioner, Neles pneumatic regulating valve spare widely used for chemical and petrochemical control valve overhaul and replacement.
