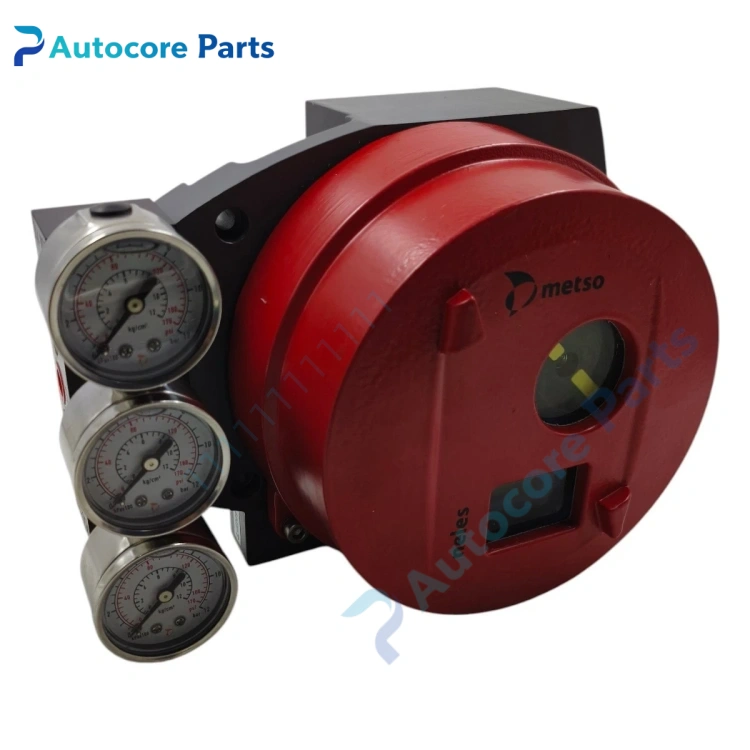

Neles VG9215HE5 Safety Solenoid Controller

Feature & Principle

It is an intelligent safety solenoid controller of Neles ValvGuard VG9000 series. It is powered by 4-20mA signal loop, built-in microprocessor, realizes valve position closed-loop control and partial stroke test (PST). It can detect the health status of shutdown valve online without full stroke operation, and upload diagnostic data through HART protocol. It integrates solenoid pilot valve, position feedback and fault diagnosis, suitable for SIS safety instrument system, to improve the reliability of emergency shutdown valve.

Specifications

Model: VG9215HE5 Brand: Neles (Valmet) Series: ValvGuard VG9000 Power supply: 4-20mA loop powered Communication: HART Pneumatic port: 1/4 NPT Air flow: 90 Nm³/h, Cv=0.7 Housing: Epoxy coated anodized aluminum alloy Protection class: IP66, NEMA 4X Safety certification: SIL3 IEC61508 Weight: 3.0 kg Application: Petrochemical, refinery SIS emergency shutdown valve control Certification: CE, ATEX, IECEx

Components & Diagnostics

Main control circuit board, built-in pilot solenoid valve, position feedback sensor, pneumatic channel, local display and operation panel. Common faults: PST test failure, HART communication interruption, air leakage, position feedback deviation.

Product Brief

VG9215HE5 intelligent safety solenoid controller, Neles ValvGuard SIS safety valve spare widely used for petrochemical emergency shutdown valve overhaul and replacement.
