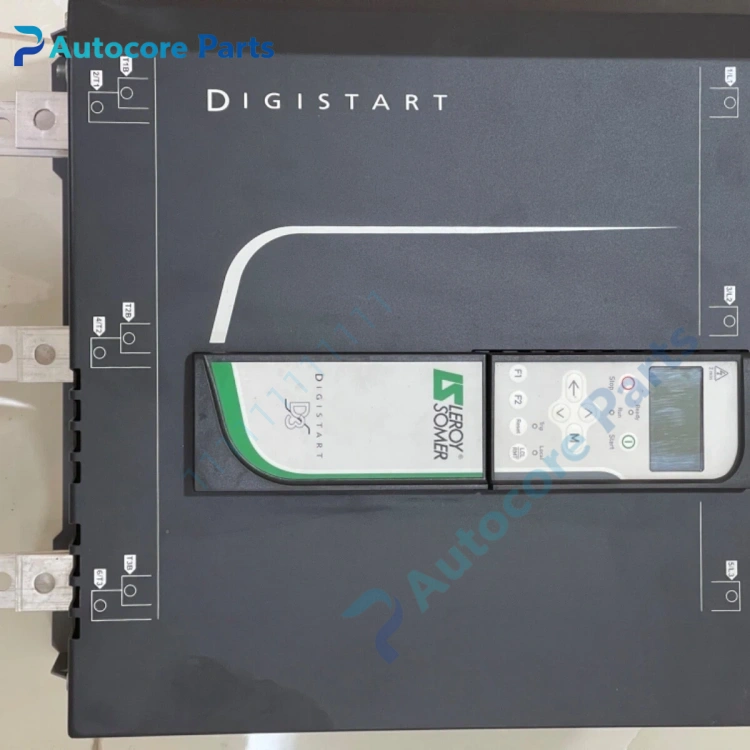

Nidec D3-14-0255-N Soft Starter Unit

Feature & Principle

This soft starter adopts thyristor voltage regulation control. It gradually increases motor terminal voltage during startup to reduce starting impact current, supports soft stop function. It integrates overload, phase loss and overheat protection, communicates with PLC via fieldbus for remote monitoring.

Specifications

Model: D3-14-0255-N Brand: Nidec (Control Techniques) Series: Digistart D3 Rated current: 255A Bypass: Without internal bypass Voltage: 208~600V 3-phase Control supply: 110-240VAC Communication: Modbus RTU Mounting: Cabinet installation Protection: IP00 Certification: CE, UL

Components & Diagnostics

Thyristor power module, main control board, trigger circuit, cooling fan, current transformer, status display. Common faults: overcurrent alarm, over-temperature trip, phase imbalance, fan failure.

Product Brief

D3-14-0255-N soft starter, Nidec motor control spare widely used for water pump, fan and compressor load start protection.
