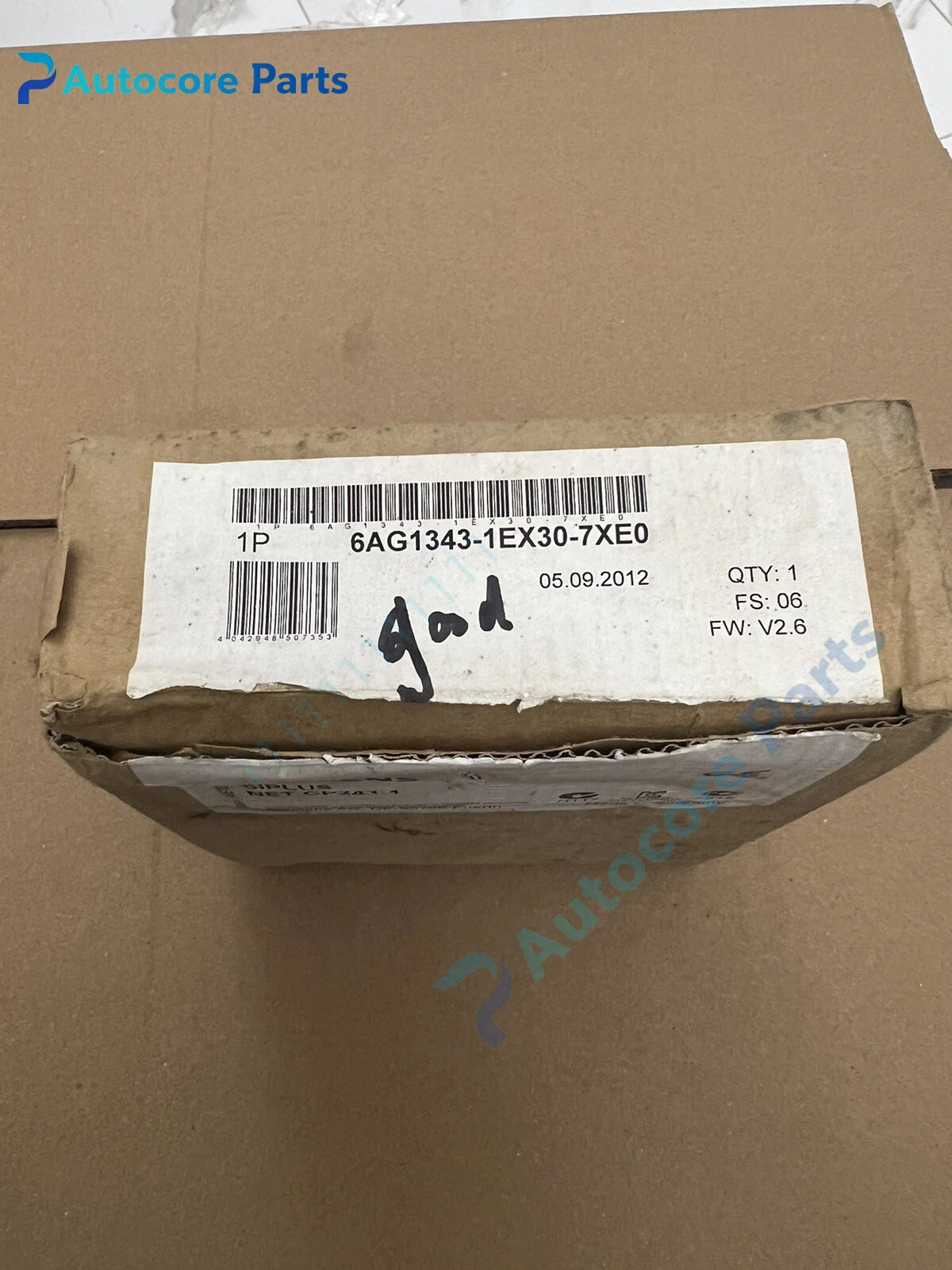

Siemens 6AG1343-1EX30-7XE0 SIPLUS CP343-1 Communication Module Unit

Feature & Principle

This communication processor integrates a 2-port ERTEC200 switch. It realizes S7 communication, TCP/IP, ISO and PROFINET IO controller/device functions for S7-300 CPU. The anti-corrosion coating supports wide temperature and harsh industrial environments for stable network data exchange.

Specifications

Model: 6AG1343-1EX30-7XE0 Brand: Siemens Series: SIPLUS NET CP343-1 Applicable PLC: SIMATIC S7-300 Ports: 2 × RJ45 10/100Mbps Protocol: PROFINET, TCP/IP, ISO, S7 communication Temperature range: -25 ~ +70℃ Protection: Conformal coated, IP20 Mounting: S7-300 rack installation Certification: CE

Components & Diagnostics

Main processing chip, Ethernet PHY, 2-port switch circuit, backplane bus interface, status LED. Common faults: network link failure, communication timeout, backplane bus abnormal, port damage.

Product Brief

6AG1343-1EX30-7XE0 communication processor, Siemens SIPLUS ruggedized PLC network spare widely used in chemical, outdoor and heavy dust automation sites.
