OPTIMATION E6474A & W1314A Drive Test System

Module Feature

Keysight E6474A is wireless network optimization and drive test software platform. W1314A is the matched multi-band RF measurement receiver hardware. This combined system is used for cellular mobile network coverage test, signal quality measurement, interference detection and network optimization. It can support GSM, WCDMA and LTE multi-network standard, and simultaneously measure up to 8 frequency bands. Built-in GPS 1PPS timing module, for geographic position tagging of measured RF data. It is a portable field test system, widely used for mobile communication network site survey, drive test and network troubleshooting. The product is obsolete, belongs to legacy wireless test instrument.

Working principle: W1314A receiver captures over-the-air RF cellular signals, converts RF signals to digital measurement data, transmits to PC via USB. E6474A software processes signal level, cell ID, timing and spectrum parameters, displays measurement data on digital map, records log files for post analysis. GPS provides position and time synchronization for each measurement point. Onboard components:W1314A multi-band RF receiver, GPS antenna, RF cables, USB communication interface, E6474A PC measurement software

LED indicatorsPower, RF status, GPS lock and USB communication LED indicators on W1314A receiver housing.

Hardware self-diagnosis

Visual inspection of RF port and USB connector, input power test, GPS signal lock test, RF path calibration and receiver amplitude verification.

Programming software

E6474A wireless measurement software, supports data logging, map visualization, signal analysis and report generation.

Electrical & Process Parameters

Power supply:9 ~ 34VDC RF input impedance:50 Ohm, Type-N connector Max safe input power:+10 dBm Frequency accuracy:±2 ppm Interface:USB2.0, SMA GPS port Receiver bandwidth options:1.25MHz,5MHz,7MHz,8.75MHz,10MHz,20MHz

Mechanical & Structure

Mounting:Portable backpack mounting for field drive test Protection class:IP30 receiver housing for field portable use

Environmental

Operating temperature:0℃ ~ +55℃ Ambient humidity:5~95% non-condensing Status:Obsolete portable multi-band wireless drive test receiver system

System compatibility

E6474A software only works with W1314A series receiver hardware, compatible with Windows PC for field measurement logging.

Function

E6474A + W1314A system manufactured by Keysight (Agilent). It performs cellular network drive test, collects RF signal strength and cell information. RF port damage, GPS antenna failure or USB communication error will cause measurement interruption. It is portable field test instrument for mobile communication network coverage survey and optimization.

Installation

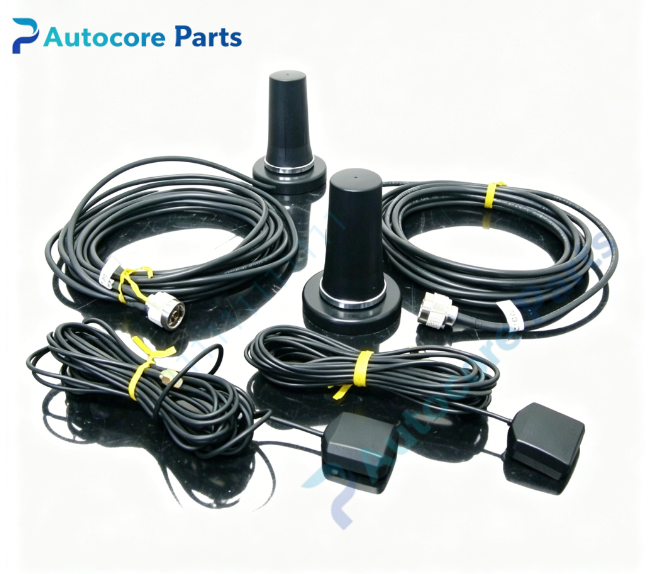

Follow lockout/tagout safety procedure before installation. Power off receiver. Connect GPS antenna and RF test antenna, connect USB cable to laptop, power on receiver. Launch E6474A software, configure frequency band parameters, wait for GPS lock, start drive test logging.

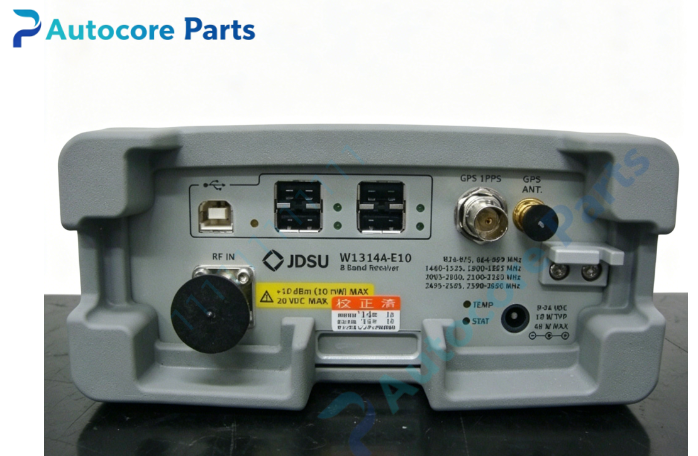

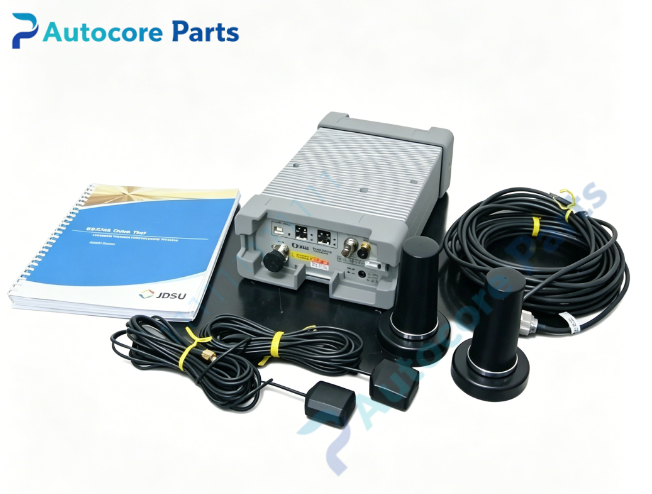

InterfaceType-N RF input port, SMA GPS antenna port, DC power jack, USB2.0 data port, status LED indicators on housing of W1314A.

Diagnostic

No RF measurement:Antenna cable broken or RF port damaged. GPS no fix:GPS antenna damaged, poor sky view or timing module not calibrated. Communication drop:USB cable loose or driver error. Amplitude reading error:Receiver needs re-calibration.

Product Brief

E6474A W1314A Keysight (Agilent) portable multi-band cellular drive test system,E6474A measurement software and W1314A RF receiver,supports GSM/WCDMA/LTE network coverage test and signal analysis,for mobile communication network survey and optimization.
