OPTIMATION OP-620 HMI Operator Terminal

Module Feature

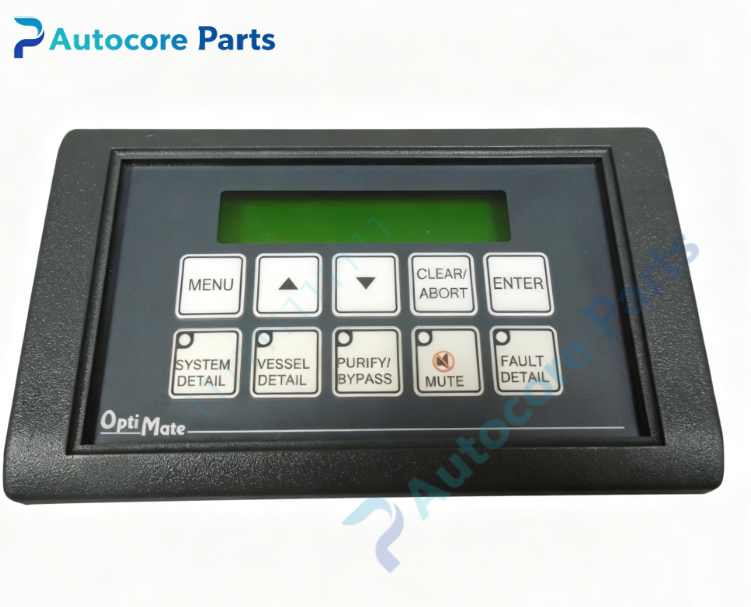

OPTIMATION OP-620 belongs to OptiMate series human machine interface operator terminal. It is equipped with 2 line × 20 character LCD display, 5 customizable function keys plus 5 menu navigation keys, supports multi-layer menu tree configuration. Stores up to 160 predefined alarm and status messages. Single DB15 serial port supports RS232 / RS422 communication, panel cutout mounting design, front face NEMA4 / IP66 protection. Widely used in semiconductor wet bench and chemical delivery control cabinet for process monitoring and manual operation.

Working principle: The panel communicates with PLC or OptiLogic RTU via serial bus. It reads real-time process variables and alarm data to display on LCD. Operator key inputs are transmitted back to host controller to modify setpoints or trigger manual commands. Custom key label inserts can be installed on front panel. Onboard components: 2×20 LCD screen, membrane keypad, main control PCB, serial communication circuit, DB15 connector, metal front housing, front LED indicators

LED indicatorsFunction key status LED indicators on front panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, serial communication test, message memory verification

Programming software

OP-WINEDIT configuration software for message editing, tag mapping, menu programming and project download

Electrical & Process Parameters

Power supply:8 ~ 30V DC Display:2×20 character LCD Input:5 programmable function keys + 5 menu keys Communication:RS232 / RS422 serial interface Power consumption:1.8VA Mount type:Control cabinet front panel cutout mounting

Mechanical & Structure

Mounting:Control cabinet front panel mounting Protection class:IP66 (front face)

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate series operator terminal

System compatibility

Compatible with OPTIMATION OptiLogic RTU rack and mainstream PLC brands, supports process data display, alarm popup and manual parameter entry.

Function

OP-620 operator terminal manufactured by OPTIMATION. It acts as HMI between operator and control system. Membrane keypad aging or serial communication parameter mismatch may lead to key failure or no data display. It is robust operator panel for wet process chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control system. Secure panel into cabinet cutout with mounting studs. Connect 24V DC power and DB15 serial cable. Download configuration project and test communication function before production startup.

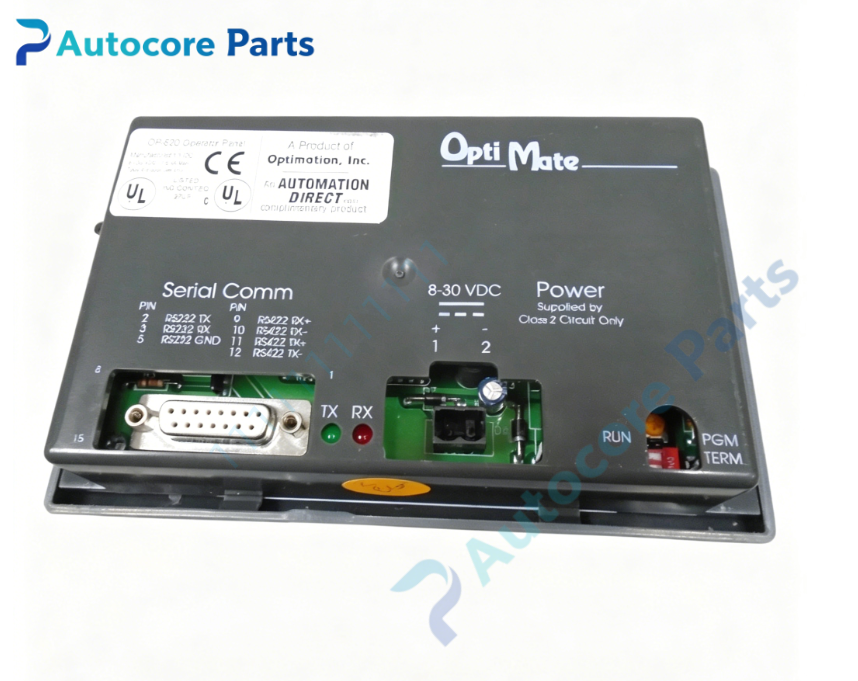

InterfaceDB15 serial port for RS232/RS422, DC power terminal, front panel keypad and LED indicators on housing of OP-620.

Diagnostic

Blank LCD: Power supply failure or display damage. Key no response: Membrane keypad wear. No PLC data: Serial baud rate mismatch or wiring fault. Intermittent communication: Loose DB15 connector.

Product Brief

OP-620 OPTIMATION OptiMate operator terminal,2×20 LCD,menu tree function,RS232/RS422 serial port,IP66 front panel,for semiconductor wet bench and chemical delivery HMI monitoring and parameter setup.
