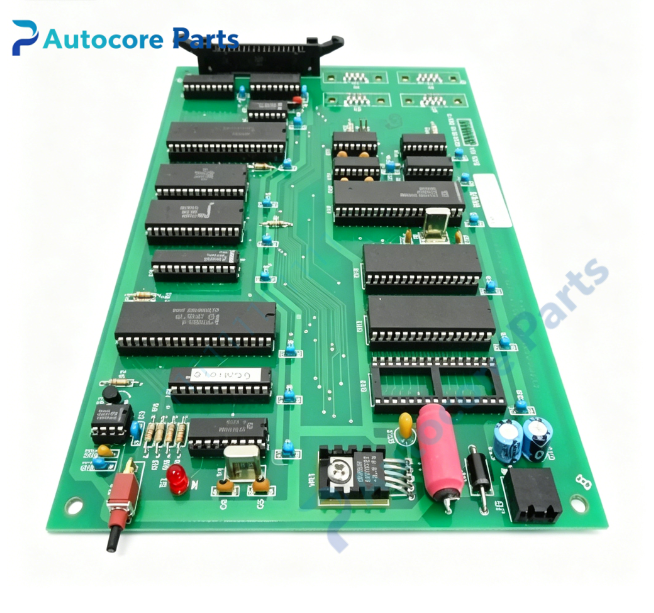

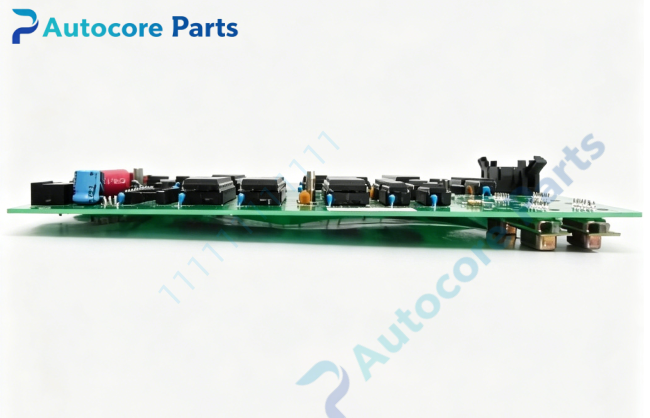

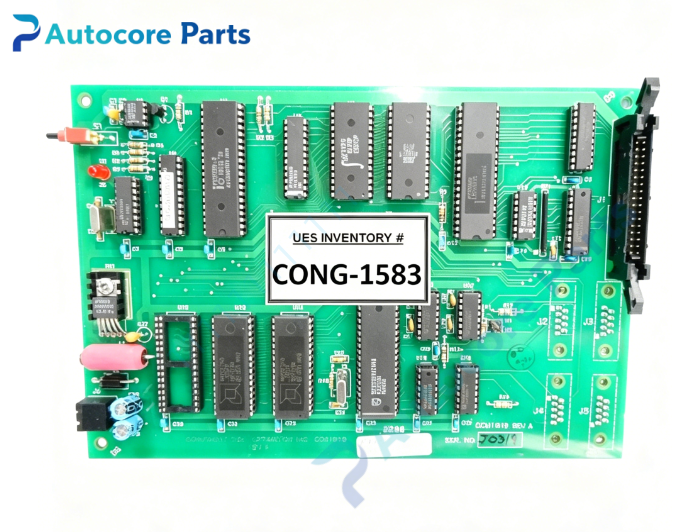

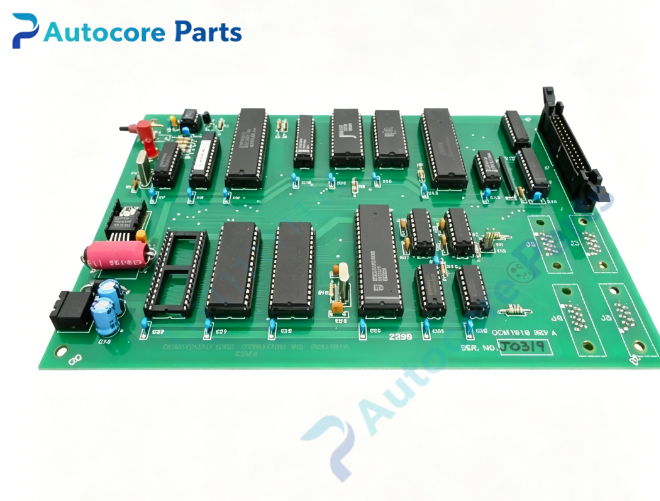

OPTIMATION GCM1010 Communication Interface Module

Module Feature

OPTIMATION GCM1010 belongs to OptiLogic series rack-mounted communication interface module. It is designed to be installed inside OL4054, OL4058 and OL4228 OptiLogic RTU card slots. This module realizes protocol conversion and signal transfer between OptiLogic backplane bus and external field serial devices. Same mechanical dimensions and snap locking structure as standard OptiLogic I/O modules and supports hot-plug operation. Widely used for external device communication integration in semiconductor wet bench and chemical delivery control cabinet.

Working principle: GCM1010 communicates with RTU mainboard via backplane parallel bus. It converts internal rack bus data into external serial signals and exchanges data with third-party field instruments. It isolates external device signals to protect the RTU mainboard from surge and interference. Onboard components:Communication processing PCB, serial transceiver circuit, backplane edge connector, front panel communication status LED indicators

LED indicatorsFront panel bi-color LED indicators for module power and data transmission status

Hardware self-diagnosis

Visual inspection, module seating test, backplane communication test, serial port loopback test

Programming software

OPTIMATION OL System Builder software for module identification, communication port parameter configuration and fault diagnostics.

Electrical & Process Parameters

Power supply:Power supplied from rack backplane Mount type:OptiLogic rack slot snap-in mounting Protection class:IP20

Mechanical & Structure

Mounting:OptiLogic card cage slot installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiLogic communication interface module

System compatibility

Compatible with OL4054, OL4058, OL4228 OptiLogic RTU racks and OL series I/O modules.

Function

GCM1010 communication interface module manufactured by OPTIMATION. It serves as the bridge between OptiLogic rack and external serial field devices. Poor backplane contact or incorrect serial parameter settings will cause communication failure. It is dedicated communication expansion component for wet bench automation control rack.

Installation

Follow lockout/tagout safety procedure before installation. Power off OptiLogic RTU rack. Insert GCM1010 module into empty slot and lock latches. Wire external serial device cables. Configure communication parameters in OL System Builder, verify data exchange after power on.

InterfaceBackplane edge connector for rack internal bus, external serial terminal block, front status LED indicators on housing of GCM1010.

Diagnostic

Module not detected:Damaged edge connector or poor seating. No serial communication:Baud rate mismatch or wiring error. Intermittent data loss:Unshielded cable or ground loop interference.

Product Brief

GCM1010 OPTIMATION OptiLogic rack-mounted communication interface module,hot pluggable slot card,for connecting external serial instruments to OptiLogic RTU in semiconductor wet bench and chemical delivery control cabinet.
