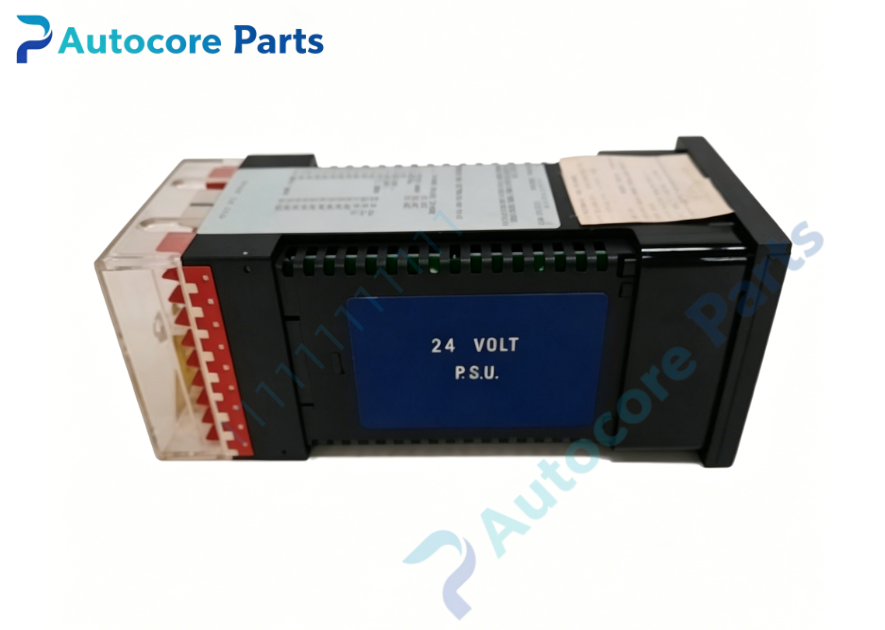

OPTIMATION Inc. NSB SF-429217 Interface Module

Module Feature

OPTIMATION Inc. NSB SF-429217 is a signal interface conversion module compatible with OptiLogic control rack. It converts field analog sensor signals into standard industrial signals for OptiLogic I/O cards. Built-in signal filtering and surge protection, compact DIN rail mounting structure, strong anti-interference capability. Widely deployed for signal conditioning in semiconductor wet bench and chemical fluid delivery systems.

Working principle: Raw analog signal from field sensor enters the module, filter circuit suppresses electrical noise, signal level is conditioned and converted to standard analog signal, then transmitted to OptiLogic I/O module. Onboard components: Signal conditioning PCB, surge protection circuit, noise filter, metal housing, input/output terminal blocks

LED indicatorsPower and signal status LED indicators on module front panel

Hardware self-diagnosis

Visual inspection, input-output signal matching test, surge protection inspection, wiring continuity test

Programming software

OPTIMATION OL System Builder software for signal range setup and scaling configuration

Electrical & Process Parameters

Power supply:24V DC Signal:Analog signal conversion Protection:Surge and overvoltage protection Mount type:DIN rail mounting

Mechanical & Structure

Mounting:DIN rail cabinet mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION signal interface module

System compatibility

Works with OptiLogic OL4228 rack and OL series I/O modules, used for field sensor signal preprocessing.

Function

NSB SF-429217 interface module manufactured by OPTIMATION Inc. It conditions weak field analog signals and filters interference before sending to I/O modules. Component aging or ground loop will lead to signal drift and unstable reading. It is auxiliary signal conditioning component for wet process automation control cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control system. Mount module on DIN rail. Connect 24V DC power, field sensor input cable and I/O module output cable. Perform signal calibration before production startup.

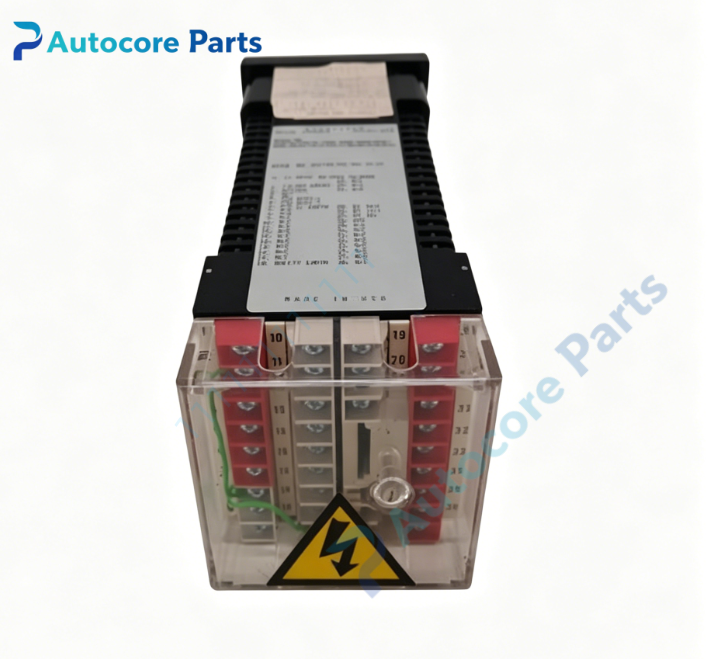

InterfaceField signal terminal block, output terminal block for OptiLogic I/O, status LED indicators on housing of NSB SF-429217.

Diagnostic

Signal reading drift: Ground loop interference or filter component aging. No signal transmission: Power loss or wiring open circuit. Signal noise: Improper shielding wiring. Intermittent signal: Loose terminal screw connection.

Product Brief

NSB SF-429217 OPTIMATION Inc. analog signal interface module,24V DC supply,signal filtering and surge protection,for semiconductor wet bench and chemical delivery field sensor signal conditioning.
