Module Feature

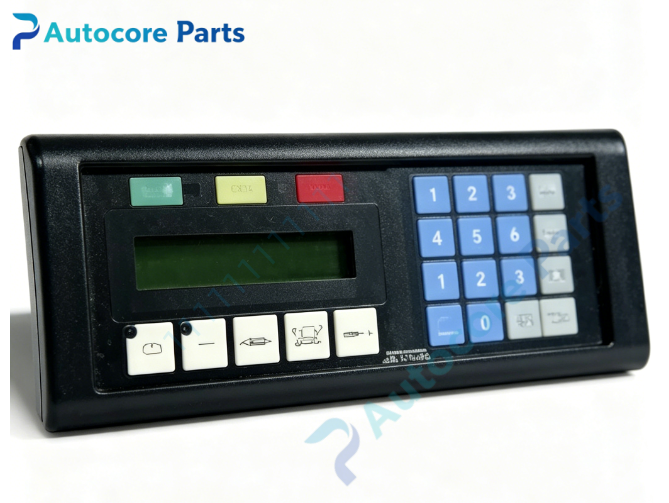

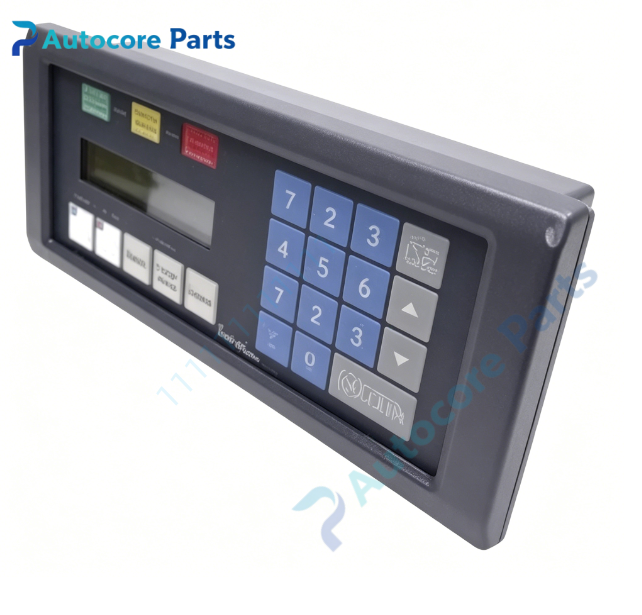

OPTIMATION OM-1510 belongs to OptiMate series human machine interface operator terminal. Equipped with 2 line × 20 character LCD display, full numeric keypad, 2 custom function keys plus multi-layer menu navigation keys, 3 front panel LED status indicators. It can store up to 160 predefined alarm and process messages, supports layered menu configuration. Serial communication interface supports RS232 / RS422 multi-drop bus. Panel cutout mounting, NEMA4 / IP65 front protection. Widely used in semiconductor wet bench and chemical fluid delivery control cabinets for process value display, parameter input and alarm monitoring.

Working principle: OM-1510 communicates with host PLC or OptiLogic RTU via serial bus. It reads real-time process variables and alarm status to LCD screen. Operator keypad inputs are transmitted back to controller to modify setpoints or trigger manual operations. Custom paper label inserts can be installed on front panel for function key marking. Onboard components:2×20 LCD screen, membrane numeric & function keypad, main logic PCB, serial communication circuit, metal front frame, 3 LED indicator lights

LED indicators3 bi-color LED status indicators on front panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display check, serial communication test, message memory verification

Programming software

OP-WINEDIT OptiMate configuration software for message editing, menu tree programming, tag mapping and baud rate setup

Electrical & Process Parameters

Power supply:10 ~ 30VDC Display:2 lines × 20 character LCD Keypad:Numeric keypad + 2 function keys + menu keys Communication:RS232 / RS422 serial multi-drop Message storage:max 160 predefined messages Mount type:Control cabinet panel cutout mounting

Mechanical & Structure

Mounting:Front panel cutout installation Protection class:IP65 / NEMA4 front face

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate operator terminal

System compatibility

Compatible with OPTIMATION OP-9001 communication master, OL4054, OL4058, OL4228 OptiLogic RTU racks; supports GE 90-30, Allen-Bradley, Modbus RTU PLC.

Function

OM-1510 operator terminal manufactured by OPTIMATION. It provides local HMI operation for wet bench process control. Incorrect baud rate or bus termination resistor missing will cause communication timeout. It is field operator interface for chemical delivery automation cabinet.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Fit panel into cutout and fasten mounting clamps. Wire 10-30VDC power and RS422/RS232 serial cable. Download project via OP-WINEDIT and test keypad & display before production startup.

InterfaceSerial D-sub connector, DC power terminal block, LCD display, membrane keypad and 3 status LED indicators on housing of OM-1510.

Diagnostic

No serial communication:Baud rate mismatch, wrong wiring or missing bus termination resistor. Blank LCD:Power loss or backlight failure. Key no response:Membrane keypad wear. Message garbled:Noise interference without shielded cable.

Product Brief

OM-1510 OPTIMATION OptiMate operator terminal,2x20 LCD with numeric keypad,RS232/RS422 multi-drop serial,IP65 front panel,for semiconductor wet bench and chemical delivery process parameter setup and alarm display.
