OPTIMATION OM620 Operator Terminal

Module Feature

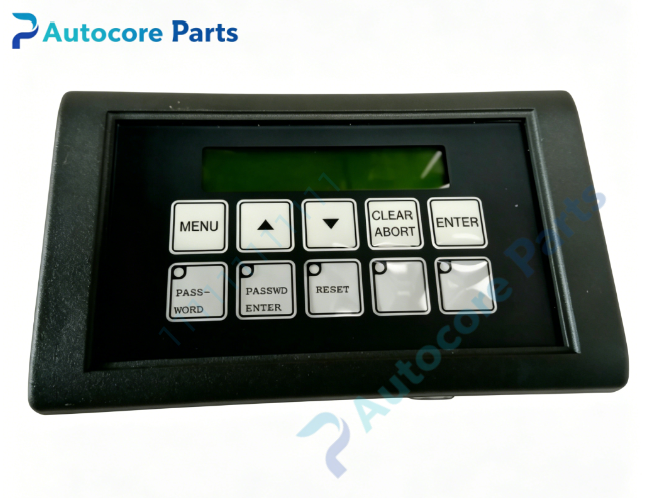

OPTIMATION OM620 belongs to OptiMate series serial HMI operator terminal. Equipped with character LCD display and industrial sealed membrane keypad for parameter setting, equipment manual operation and alarm message display. Supports dual serial interface: RS232 point-to-point and RS422 multi-drop bus, compatible with OP-9001 / OM-9001-2 communication master. DIP switches located on rear panel for baud rate selection and station address configuration, built-in bus termination resistor switch. Front panel meets NEMA4 / IP65 protection grade. Widely used for local process operation and status monitoring in semiconductor wet bench and chemical delivery control cabinets.

Working principle: OM620 communicates with host PLC via RS422 multi-drop or RS232 serial link. It receives process value, equipment status and alarm messages from PLC and displays on LCD screen. Keypad operation commands are uploaded back to PLC to modify setpoints and trigger discrete control actions. Multiple OptiMate HMI and annunciator panels can share a single PLC serial port over RS422 multi-drop network. Onboard components: Character LCD module, sealed membrane keypad, main control PCB, RS232 / RS422 dual serial transceiver circuit, DIP switch bank, metal front frame, rear power terminal block

LED indicatorsPower and bi-color TX/RX communication LED indicators on rear side of panel

Hardware self-diagnosis

Visual inspection, keypad function test, LCD display test, RS232 / RS422 communication test, station address conflict verification

Programming software

OP-WINEDIT OptiMate configuration software for screen layout, alarm message definition, baud rate and station address assignment

Electrical & Process Parameters

Power supply:8 ~ 30VDC Display:Character LCD Input:Sealed industrial membrane keypad Communication:RS232 point-to-point, RS422 multi-drop serial bus Mount type:Cabinet panel cutout mounting

Mechanical & Structure

Mounting:Panel cutout installation with locking clamps Protection class:IP65 / NEMA4 front face, IP20 rear side

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:OPTIMATION OptiMate serial operator HMI terminal

System compatibility

Compatible with OP-9001, OM-9001-2 communication master gateway; works with OL4054, OL4058, OL4228 OptiLogic RTU racks and mainstream PLC.

Function

OM620 operator panel manufactured by OPTIMATION. It provides local human machine interface for process control. Mismatched baud rate, duplicated station address or disabled bus termination resistor will trigger communication failure. It is local operation interface component for wet bench chemical delivery automation control system.

Installation

Follow lockout/tagout safety procedure before installation. Power off control cabinet. Install panel into cabinet cutout and secure locking clamps. Wire 8~30VDC power and shielded RS422 / RS232 serial cable. Set DIP switch parameters, download HMI project by OP-WINEDIT, verify LCD display and keypad operation before system startup.

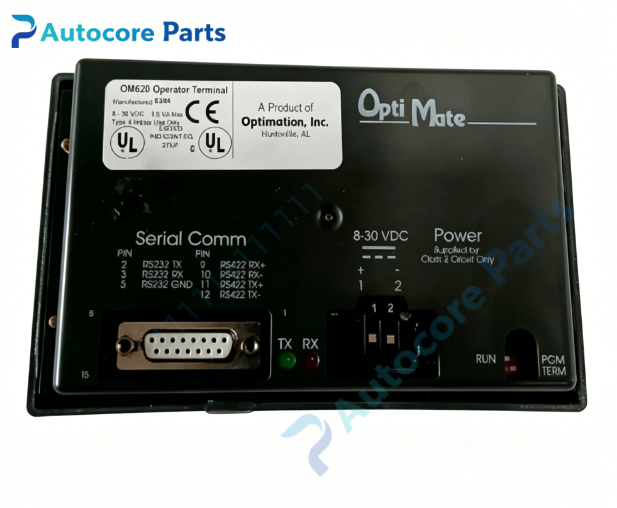

InterfaceDC power terminal block, RS232 / RS422 serial terminal block, front membrane keypad and character LCD display on housing of OM620.

Diagnostic

No serial communication:Baud rate mismatch, wrong wiring or address conflict. LCD no backlight:Power supply out of 8~30VDC range. Single key no response:Membrane keypad damage. Intermittent connection:Unshielded cable causing electromagnetic interference.

Product Brief

OM620 OPTIMATION OptiMate operator terminal HMI panel,8~30VDC,character LCD and membrane keypad,supports RS232 and RS422 multi-drop bus,IP65 front panel,for semiconductor wet bench and chemical delivery equipment local operation and alarm monitoring.
