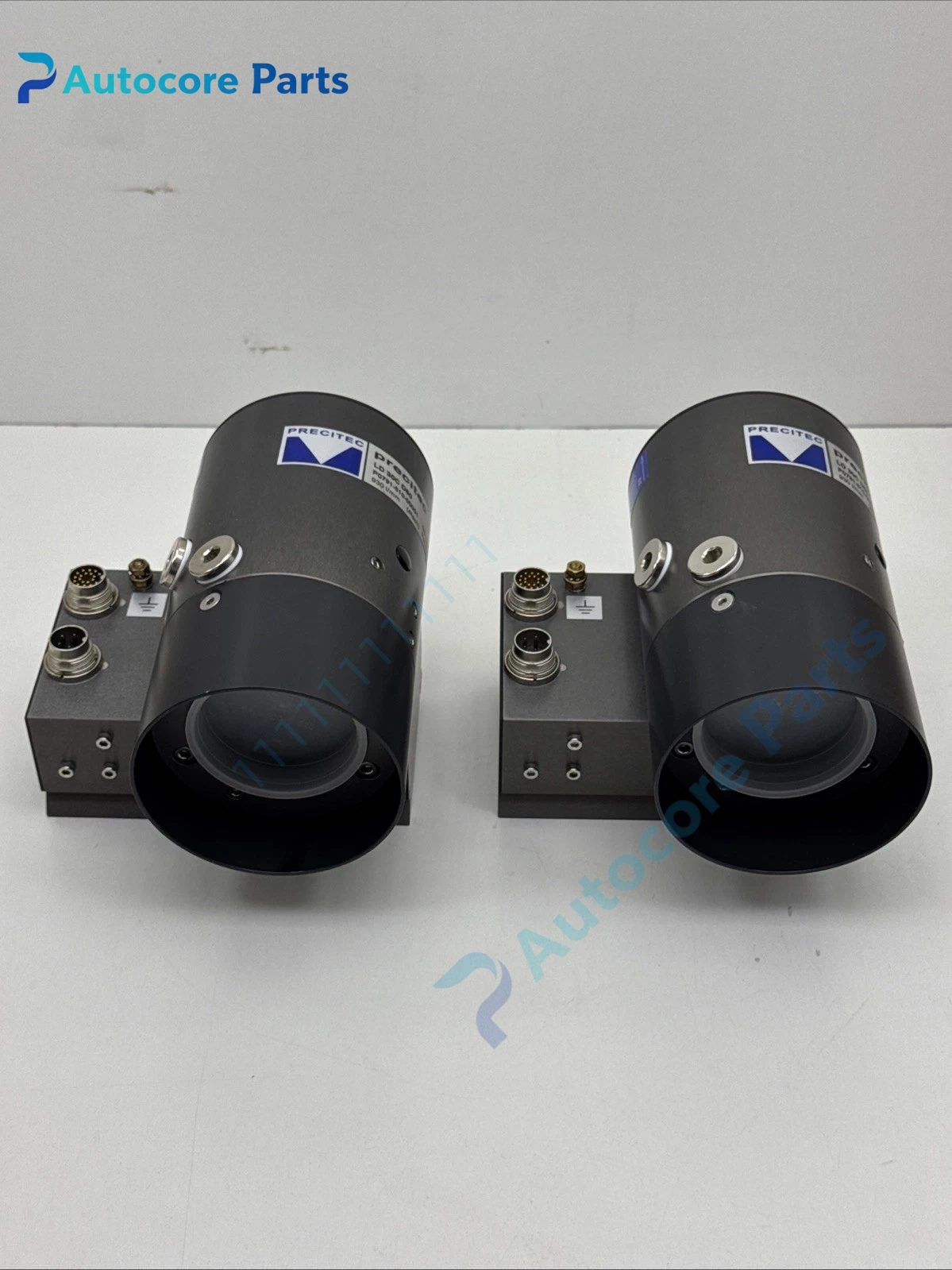

Precitec P0791-510-00001 Laser Control Unit

Feature & Principle

This controller receives capacitance sensing signal from laser cutting head, calculates gap distance between nozzle and workpiece, realizes closed-loop height tracking. It communicates with laser machine numerical control system, outputs adjustment instruction to maintain stable cutting gap, and implements fault alarm for collision and signal loss.

Specifications

Model: P0791-510-00001 Brand: Precitec Type: Laser height tracking controller Power supply: 24VDC Interface: Analog / digital communication Mounting: Cabinet installation Protection: IP20 Certification: CE

Components & Diagnostics

Signal processing board, capacitance signal conditioning circuit, communication interface, terminal block and status LED. Common faults: height tracking drift, signal loss, collision detection misjudgment and communication interruption.

Product Brief

P0791-510-00001 laser control unit, Precitec laser spare widely used for fiber laser cutting machine height control system.
