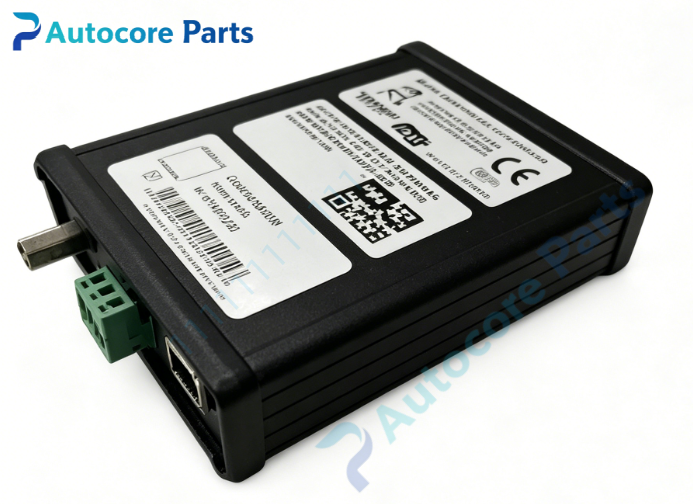

ProSoft AN-X-MOD EtherNet/IP to Modicon S908 Gateway

Technical Specifications

Model:AN-X-MOD

Brand:ProSoft

Product type:Protocol Communication Gateway

Power supply:18-32VDC

Communication:EtherNet/IP, Modicon S908 Remote I/O

Weight:0.35kg

Operating temperature:-40℃ ~ +70℃

Dimension:127mm102mm35mm

Certification:CE,UL

System compatibility

AN-X-MOD belongs to ProSoft AN-X series DIN rail gateway.It connects modern EtherNet/IP control network with old Modicon S908 Remote I/O racks,suitable for obsolete Modicon automation system upgrade and spare replacement.

Function

It acts as EtherNet/IP adapter,realizes bidirectional real-time I/O data mapping between EtherNet/IP controller and legacy Modicon S908 Remote I/O devices,supports master mode and monitor mode for system migration verification.

Installation

DIN rail mounting,connect 24VDC power,wire Ethernet and S908 bus,configure rack address and data mapping via web configuration page,check LED indicators.

Interface

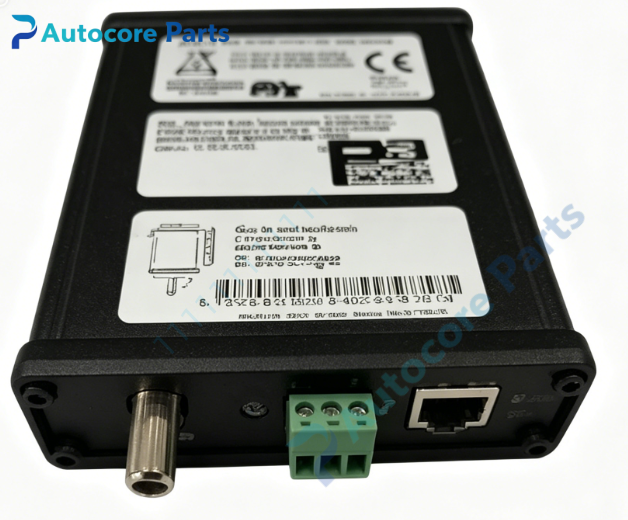

1*10/100Mbps Ethernet RJ45 port,S908 bus terminal,power terminal,run and fault status LED indicators.

Feature

Compact DIN rail housing,supports automatic S908 scan list generation,firmware upgradable over Ethernet,monitor mode for parallel system testing,stable operation in industrial cabinet environment.

Diagnostic

Check power,link and fault LED;communication failure:verify network cable,bus wiring,drop address and baud rate;data abnormal:check I/O mapping and network configuration.

Product Brief

AN-X-MOD is ProSoft AN-X series protocol gateway,bridge EtherNet/IP network and legacy Modicon S908 Remote I/O racks,for old industrial automation system maintenance and transformation.

Disclaimer

Product parameters are for reference only and shall not be used as pricing basis. Goods are in short supply and will be powered on for inspection before shipment. Overseas delivery lead time is 3-7 working days. The product is only used for equipment maintenance and renovation.
