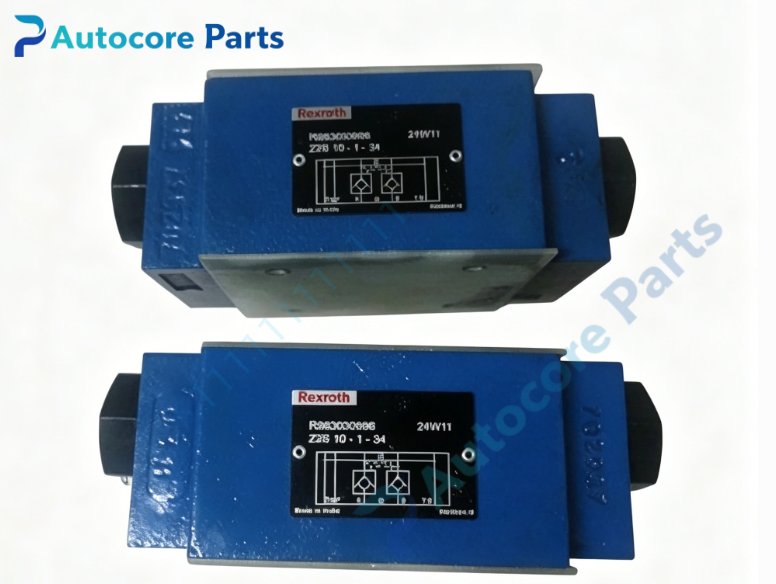

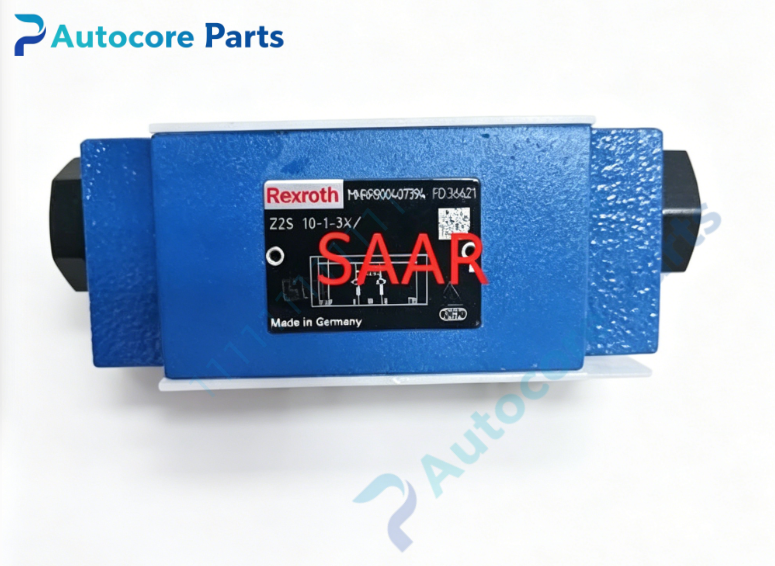

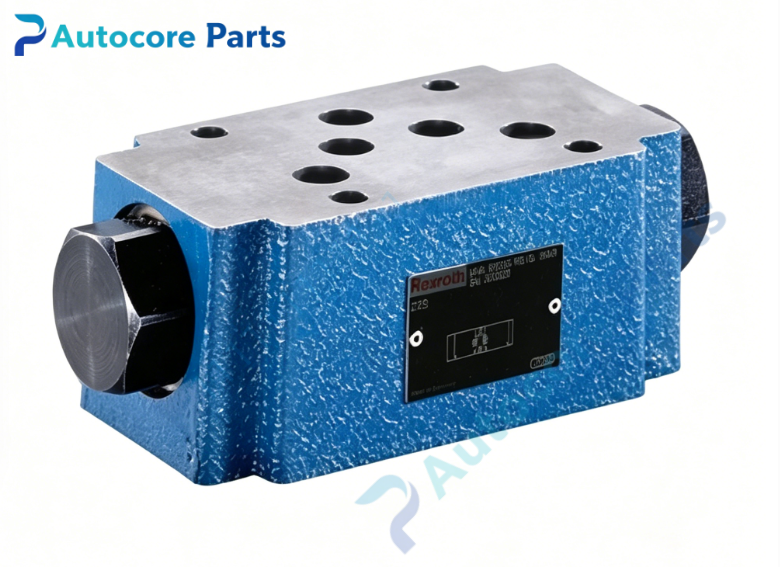

Rexroth 10-1-32/V Spare Part

Technical Specifications

Model:10-1-32/V

Brand:Rexroth

Product type:Hydraulic pressure reducing valve

Power supply:No external power supply,hydraulic media driven

Control function:Hydraulic pressure regulation,pressure stabilization,overpressure protection,mechanical self-diagnosis

Communication:No digital bus

Mounting:Cartridge / manifold block mounting

Operating temperature:-20~80℃

Storage temperature:-25~85℃

Relative humidity:5~95% non-condensing

Max working altitude:2000m

Weight:1.12kg

Dimension:142mm76mm70mm

Certification:CE

Protection class:IP65

System compatibility

10-1-32/V belongs to Rexroth industrial hydraulic valve series,matched with hydraulic pump,hydraulic cylinder and manifold block.Widely applied in automation assembly,press-fit and hydraulic power unit workstations.This is a discontinued legacy spare part for equipment maintenance replacement.

Function

10-1-32/V is a Rexroth hydraulic pressure reducing valve for industrial hydraulic circuits.It reduces inlet high hydraulic pressure to a stable preset outlet pressure independent of flow fluctuation.It maintains constant working pressure for downstream hydraulic actuators.It integrates built-in overpressure relief function to protect rear hydraulic components.It acts as pressure regulation component for industrial hydraulic workstation.

Installation

Install 10-1-32/V into manifold valve block and lock fixing bolts.Make sure oil flow direction matches the marking on valve body.Check sealing and oil circuit cleanliness before system commissioning.

Interface

‑Hydraulic oil inlet port

‑Hydraulic oil outlet port

‑Drain port

‑Pressure adjustment knob

Circuit feature

Precision spring and spool structure,anti-pollution design,stable pressure output under industrial hydraulic working environment.

Feature

10-1-32/V is obsolete Rexroth spare part.Typical faults:pressure unstable,pressure cannot be adjusted,internal oil leakage,spool stuck.Inspect spool,spring and sealing rings before replacement.This valve must match hydraulic medium and working pressure,direct substitution without inspection is not recommended.

Diagnostic

When spool jam,seal aging or spring fatigue occurs,the system will report hydraulic pressure abnormal alarm.

Built‑in function:Hydraulic pressure reduction and stabilization,overpressure protection,pressure adjustment,used as hydraulic control system spare replacement.

Product Brief

10-1-32/V is old Rexroth hydraulic pressure reducing valve for industrial hydraulic workstation.Confirm working pressure and hydraulic oil medium before ordering.ESD protection required during handling and installation.
