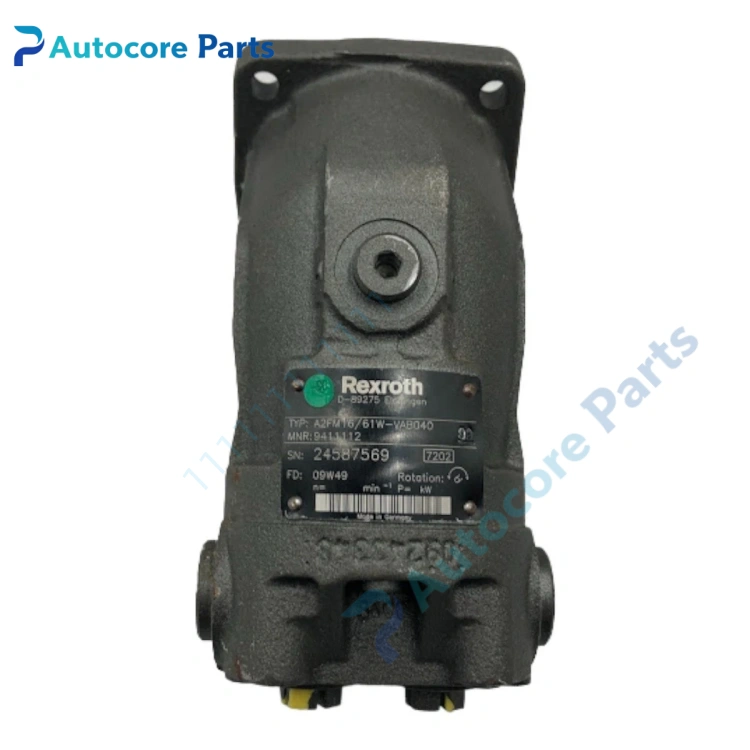

Rexroth A2FM16 Hydraulic Motor

Feature & Principle

It is Rexroth A2FM series bent-axis fixed displacement axial piston hydraulic motor. It converts hydraulic pressure energy into rotary mechanical torque based on the bent-axis piston drive principle. It features high power density, high total efficiency and excellent low-speed starting performance. It can work in both open circuit and closed hydrostatic transmission systems. The robust structure supports continuous heavy-load operation, optional splined or keyed shaft, FKM seal for wide hydraulic fluid compatibility.

Specifications

Model: A2FM16 Brand: Rexroth Type: Bent axis fixed displacement axial piston motor Displacement: 16 cm³/rev Nominal pressure: 400 bar Peak pressure: 450 bar Rotation direction: Reversible Mounting: ISO 3019-2 flange Seal: FKM Application: Construction machinery, drilling equipment, conveyor, winch hydraulic drive Certification: CE

Components & Diagnostics

Piston cylinder assembly, drive shaft, valve plate, housing, bearing set, sealing kit, oil drain port. Common faults: internal leakage, insufficient output torque, abnormal noise, shaft seal oil leakage, valve plate wear.

Product Brief

A2FM16 hydraulic motor, Rexroth A2FM bent axis piston hydraulic spare widely used for construction and industrial hydraulic system overhaul and replacement.
