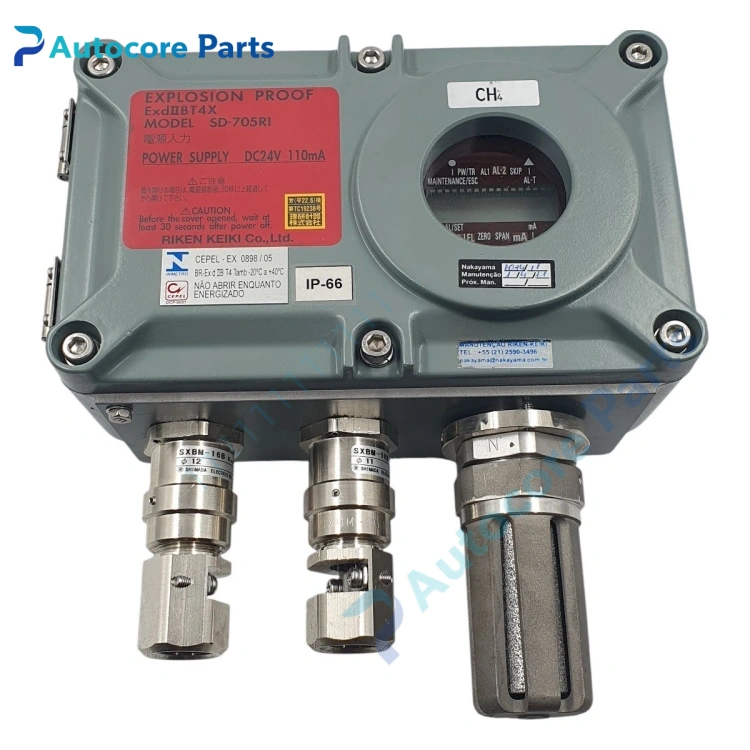

RKI SD-705RL Gas Detector

Feature & Principle

It is RKI SD-705 series non-dispersive infrared combustible gas detector. Based on NDIR infrared absorption principle, it detects methane and hydrocarbon gas concentration. Diffusion sampling structure, built-in alarm relay contacts. It converts gas concentration into 4-20mA analog signal to DCS or gas alarm controller. Automatic optical fault diagnosis, anti-poisoning design, suitable for long-term stable operation in oil and chemical hazardous areas. Magnetic adjustment simplifies field calibration without opening the housing.

Specifications

Model: SD-705RL Brand: RKI Detection principle: NDIR infrared Sampling method: Diffusion Measuring range: 0-100%LEL Output: 4-20mA + alarm relay Response time: T60 ≤30s Explosion protection: Ex d Ingress protection: IP66 Application: Oil platform, refinery, chemical plant, hazardous area combustible gas monitoring Certification: ATEX, IECEx

Components & Diagnostics

Infrared light source, optical measuring chamber, photoelectric receiver, signal processing board, relay module, explosion-proof enclosure, wiring terminal. Common faults: optical window contamination, light source aging, signal drift, relay failure, calibration failure.

Product Brief

SD-705RL infrared combustible gas detector, RKI SD-705 series gas monitoring spare widely used for petrochemical hazardous area overhaul and replacement.
