Siemens 7SJ6325-5EB92-3FG0 Protection Relay

Feature & Principle

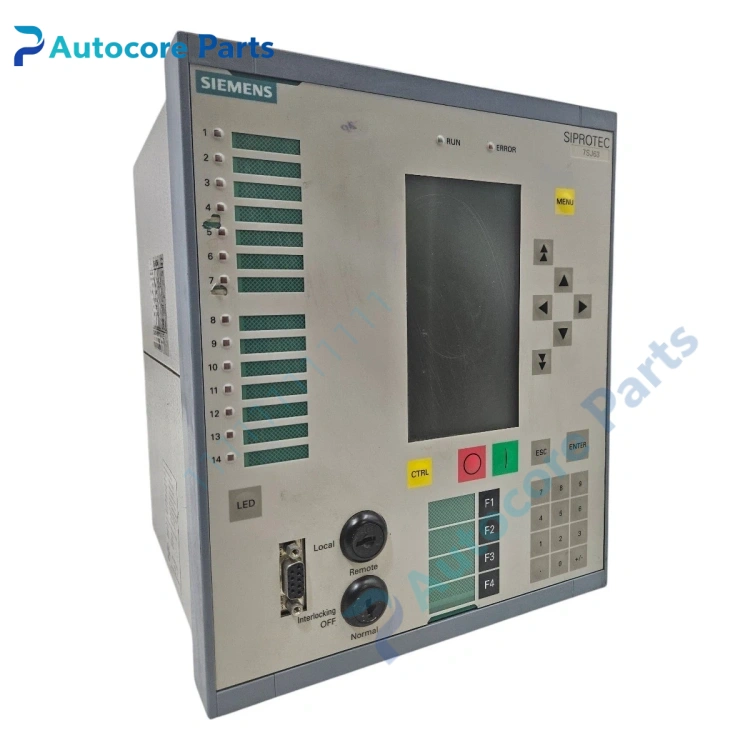

It is Siemens SIPROTEC 7SJ63 multifunctional overcurrent protection relay. It collects three-phase current and voltage signals, judges fault conditions according to protection setting values, and quickly sends trip signal to circuit breaker when overcurrent, earth fault or overload occurs. It has built-in measurement, fault recording and event logging functions, supports DIGSI software parameter configuration. Profibus-DP interface realizes data interaction with upper monitoring system. It is widely used for distribution feeder, motor and transformer backup protection in substation.

Specifications

Model: 7SJ6325-5EB92-3FG0 Brand: Siemens Series: SIPROTEC 7SJ63 Protection function: Phase overcurrent, earth fault, overload, negative sequence protection Communication: Profibus-DP Display: Backlit graphic LCD Binary I/O: Multi configurable DI/DO Mounting: 19 inch rack mounting Power supply: DC/AC wide range Application: Substation feeder, motor, distribution transformer protection Certification: CE, IEC60255

Components & Diagnostics

Main CPU board, signal acquisition board, power module, relay output board, graphic display panel, status LED indicators. Common faults: communication interruption, measurement drift, relay contact burnout, power supply failure.

Product Brief

7SJ6325-5EB92-3FG0 multifunction protection relay, Siemens SIPROTEC 7SJ63 power protection spare widely used for substation protection cabinet overhaul and replacement.
