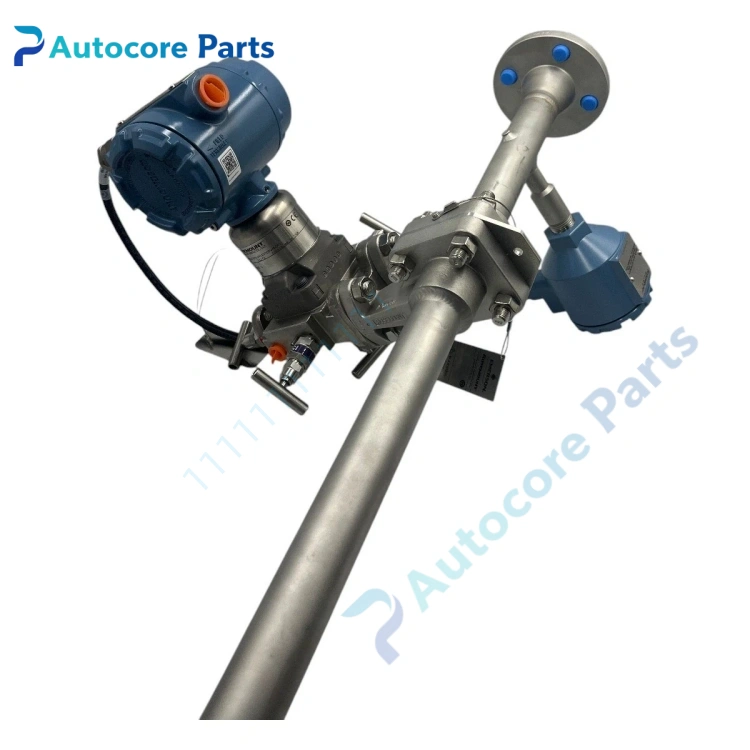

Rosemount 3051SFP Integral Orifice Flow Meter Inquiry Item

Feature & Principle

It is Emerson Rosemount 3051S series integrated orifice multivariable flow meter. The orifice plate, meter run and differential pressure sensor are integrated as one assembly. It collects differential pressure, static pressure and process temperature at the same time, built-in flow algorithm to output compensated mass flow. Adopting all-welded SuperModule structure, it supports plugged impulse line diagnosis, suitable for gas, liquid and steam flow measurement on small pipelines.

Specifications

Model: 3051SFP Brand: Rosemount (Emerson) Applicable pipe size: 15~40 mm Communication: 4-20mA HART, WirelessHART, FOUNDATION Fieldbus Wetted material: 316 stainless steel Accuracy: ±0.04% reading (Ultra for Flow) Safety certification: SIL2 / SIL3 Application: Petrochemical, power, energy small pipeline flow monitoring Certification: CE, UL

Components & Diagnostics

Differential pressure SuperModule sensor, integrated orifice meter run, temperature sensor, transmitter display, valve manifold. Common faults: orifice blockage, impulse pipe leakage, HART communication failure, sensor zero drift.

Product Brief

3051SFP integral orifice flow meter, Rosemount small-caliber multivariable flow spare widely used for petrochemical and power process pipeline overhaul and replacement.
