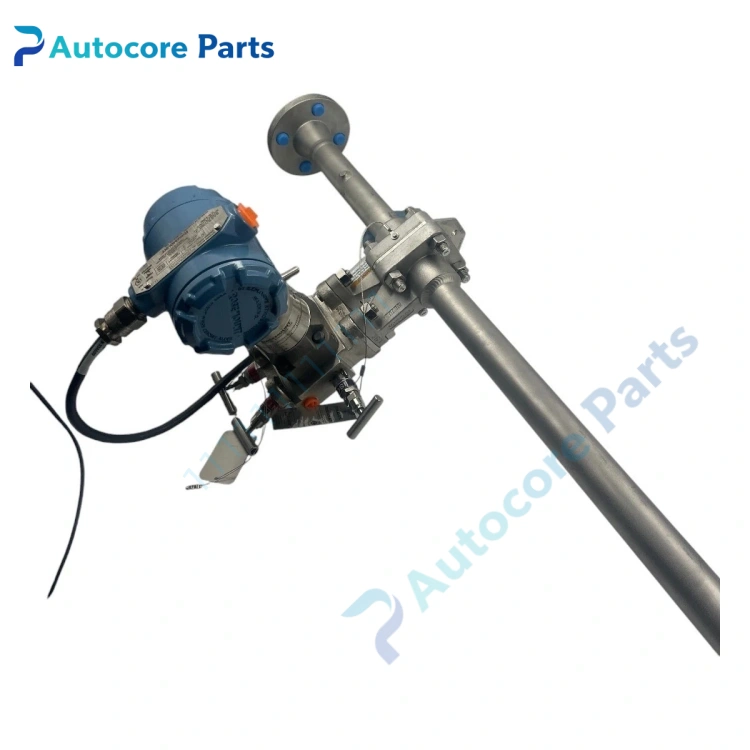

Rosemount 3051SFP Integral Orifice Flow Meter

Feature & Principle

It is Emerson Rosemount 3051S series integrated orifice multivariable flow meter. The orifice plate, measuring pipe and differential pressure sensor are integrated as one assembly. It collects differential pressure, static pressure and process temperature signals at the same time, and completes internal flow calculation to output compensated mass flow. Adopting SuperModule all-welded structure, it supports advanced loop diagnosis, suitable for gas, liquid and steam flow measurement in small-caliber pipelines.

Specifications

Model: 3051SFP Brand: Rosemount (Emerson) Pipe size: 15~40 mm (0.5~1.5 inch) Communication: 4-20mA HART, WirelessHART, FF Wetted material: 316 stainless steel Accuracy: ±0.04% of reading (Ultra for Flow) Certification: SIL2 / SIL3 Application: Petrochemical, power, energy small pipeline flow monitoring Certification: CE, UL

Components & Diagnostics

Differential pressure SuperModule sensor, integrated orifice meter run, temperature sensor, transmitter display head, valve manifold. Common faults: orifice blockage, pressure impulse pipe leakage, HART communication failure, sensor drift.

Product Brief

3051SFP integral orifice flow meter, Rosemount small-caliber multivariable flow spare widely used for petrochemical and power process pipeline overhaul and replacement.
