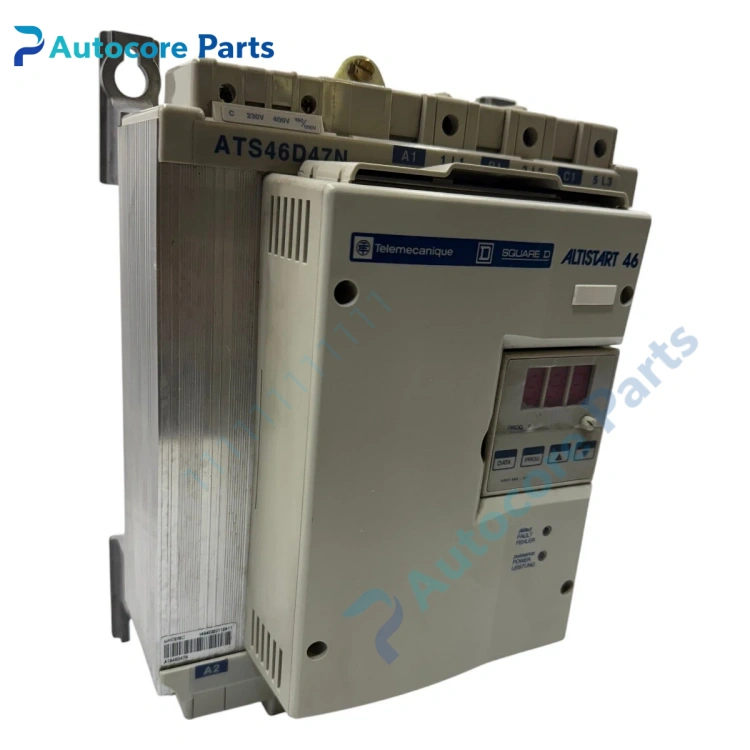

Schneider ATS46D47N Soft Starter

Feature & Principle

It is Schneider Altistart 46 series torque-controlled soft starter. It adopts thyristor voltage regulation and patented torque control algorithm, realizes smooth ramp start and soft stop, suppresses starting inrush current and water hammer effect. Built-in bypass contactor, low heat loss after startup. It integrates overload, phase loss, current unbalance protection, suitable for fans, pumps and conveyors. This model is discontinued for maintenance spare.

Specifications

Model: ATS46D47N Brand: Schneider Series: Altistart 46 Rated current: 47 A Main voltage: 3AC 208–500 VAC Control mode: Torque control Built-in bypass: Yes Protection: Overload, phase failure, current unbalance Enclosure: IP20 Application: Water pump, blower, conveyor, HVAC equipment Certification: CE, UL

Components & Diagnostics

Thyristor power module, integrated bypass contactor, main control board, current transformer, status LED, terminal block. Common faults: thyristor breakdown, bypass contact burnout, overcurrent alarm, phase loss detection error.

Product Brief

ATS46D47N soft starter, Schneider Altistart46 motor starting spare widely used for pump and fan control cabinet overhaul and replacement.
