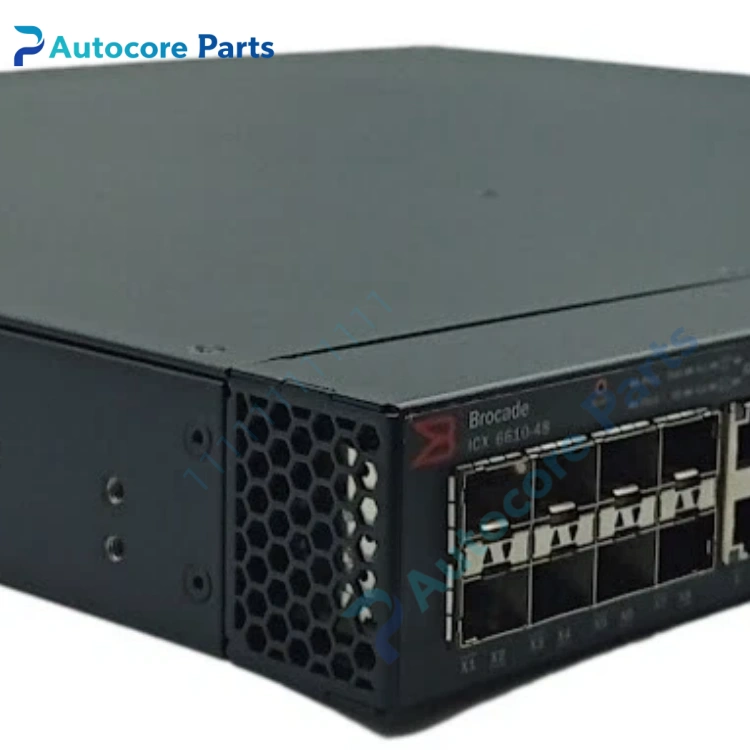

Ruckus Brocade ICX6610-48-I Network Switch

Feature & Principle

It is Ruckus Brocade ICX6610 series 1U rack-mount gigabit aggregation switch. It supports L2/L3 switching, advanced routing, ACL and QoS functions. 8 uplink SFP+ ports can be upgraded to 10G for high-speed uplink. Four 40G QSFP stacking ports enable high-bandwidth stack grouping. "-I" means intake airflow, suitable for standard hot-aisle cabinet layout. It supports redundant power supply and hot-swap fan modules, stable for factory control network, data center and enterprise core network deployment.

Specifications

Model: ICX6610-48-I Brand: Ruckus (Brocade) Series: ICX6610 Port: 48 × 10/100/1000 RJ45, 8 × SFP+, 4 × 40G QSFP stacking Form factor: 1U rack mount Airflow: Intake Switching capacity: 160 Gbps stacking bandwidth Function: Static routing, ACL, QoS, VLAN, stacking Power supply: Redundant AC/DC optional Application: Industrial control network, data center aggregation, enterprise backbone network Certification: CE, FCC

Components & Diagnostics

Main switching board, fan tray, power supply module, SFP+ / QSFP interface, status LED indicator. Common faults: port offline, fan failure, stacking link breakdown, power module failure, firmware crash.

Product Brief

ICX6610-48-I ethernet switch, Ruckus Brocade ICX6610 aggregation network spare widely used for industrial and data center network cabinet overhaul and replacement.
