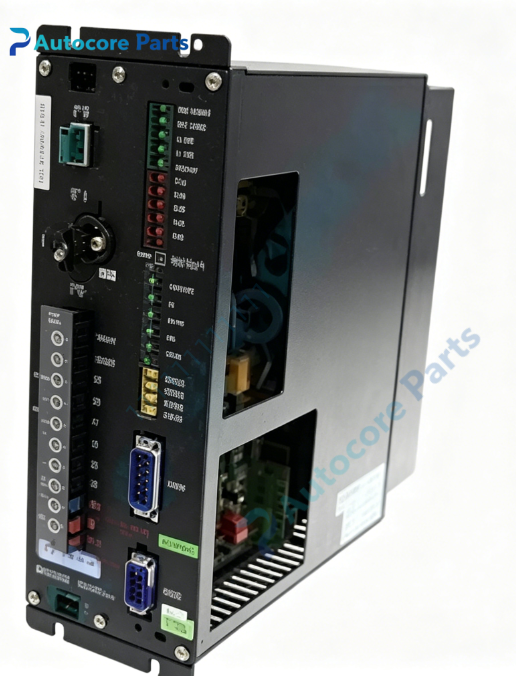

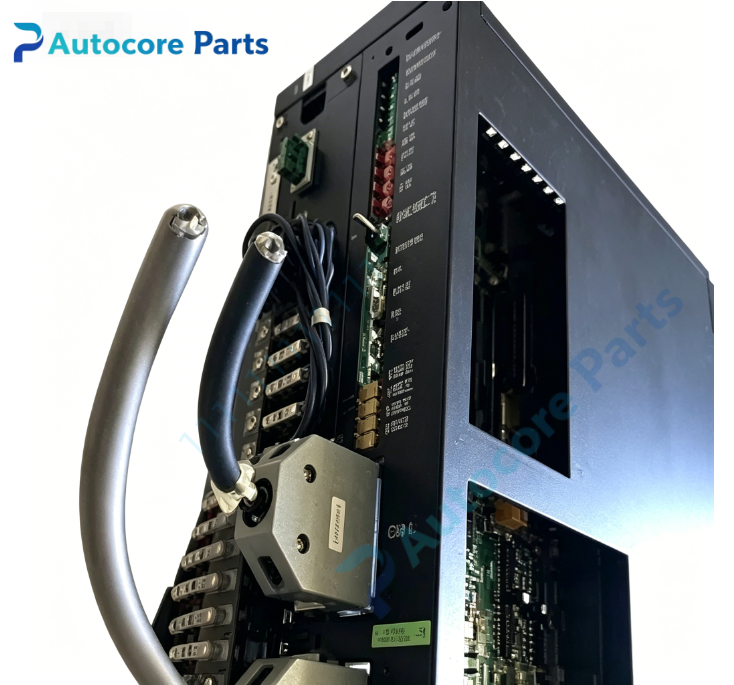

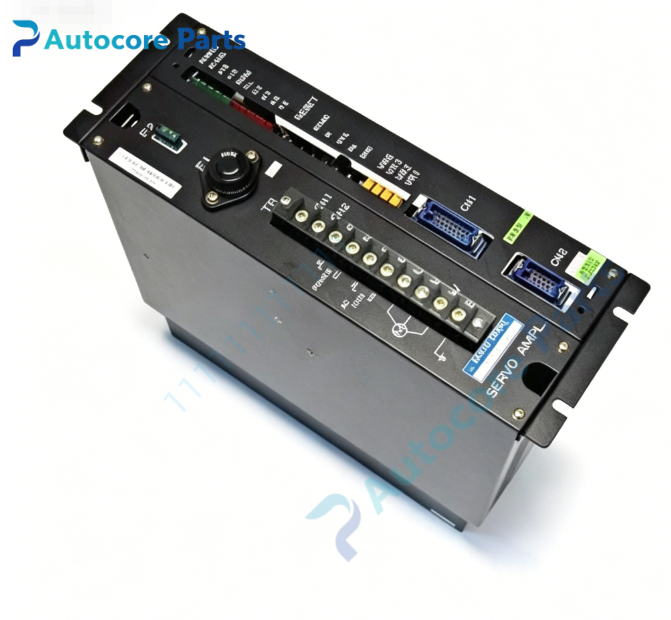

Sanyo Denki 27BA050FXTH1 Servo Amplifier

Module Feature

Sanyo Denki 27BA050FXTH1 belongs to BL Super series high performance digital AC servo amplifier. 3-phase AC200-230V input, 50/60Hz. It adopts vector dual closed-loop control algorithm, supports position, speed and torque control modes. Equipped with RS485 serial communication interface and offline auto-tuning function. Built-in multiple protection functions including overcurrent, short circuit, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. Robust metal housing structure, high electrical isolation, good anti-interference performance. Widely applied to heavy load precision motion axis in semiconductor wet bench and industrial automation equipment.

Working principle

The upper motion controller transmits command signals to this servo amplifier. The drive converts 3-phase AC input power into variable frequency 3-phase AC power to drive matched BL Super series servo motors. Encoder feeds back real-time rotor position and speed signals to the amplifier. High speed closed-loop calculation adjusts output current to realize precise torque, speed and position control. Once fault condition is detected, the amplifier immediately cuts off power output and activates alarm signal.

Onboard components

Power IGBT module, digital main control PCB, RS485 communication circuit, pulse/analog command terminal block, encoder feedback connector, AC power terminal, front panel LED status indicators, emergency stop terminal.

LED indicators

Front panel LED indicators for power ready, servo ready, servo enable, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals, encoder connectors and PCB surface; power-on self-test; input voltage detection; motor wiring continuity inspection; alarm code reading and signal loop verification.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Model: 27BA050FXTH1 Input voltage: 3-phase AC200~230V,50/60Hz Control mode: Position / Speed / Torque Communication: RS485 Command interface: Pulse train, analog signal Cooling: Forced air cooling Protection: Overcurrent, short circuit, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting: Cabinet panel mount

Mechanical & Structure

Mounting: Panel mounting Protection class: IP20

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: Sanyo Denki BL Super series AC servo amplifier

System compatibility

Compatible with Sanyo Denki BL Super series servo motors for automation heavy load axis positioning.

Function

27BA050FXTH1 servo amplifier manufactured by Sanyo Denki. It supplies high power drive and closed-loop motion control for matched BL Super servo motors to realize high precision positioning. Improper wiring, mechanical jam or incorrect parameter settings will trigger servo alarm and stop axis movement. It is high power motion control unit for semiconductor wet bench and industrial automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system completely. Fix amplifier on cabinet panel and reserve enough space for heat dissipation. Wire 3-phase AC power cable, motor power cable, encoder feedback cable and control signal cables. Configure servo parameters via SANMOTION software, perform motor jog test and positioning verification before formal operation.

Interface3-phase AC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal, RS485 communication port, emergency stop terminal, front LED indicators on housing of 27BA050FXTH1.

Diagnostic

Servo not ready: Power supply missing or internal hardware damage.

Motor cannot rotate: Servo enable signal missing, wiring error or incorrect motor parameters.

Overcurrent / short alarm: Motor short circuit, cable damage or power module breakdown.

Overheat alarm: Insufficient cooling air flow or continuous overload operation.

Encoder alarm: Damaged encoder cable, poor contact or encoder failure.

Product Brief

27BA050FXTH1 Sanyo Denki BL Super series AC servo amplifier,3-phase AC200~230V input,supports position/speed/torque control with RS485 communication,panel mount,compatible with BL Super series servo motors,for semiconductor wet bench and industrial automation heavy load precision motion axis control.
