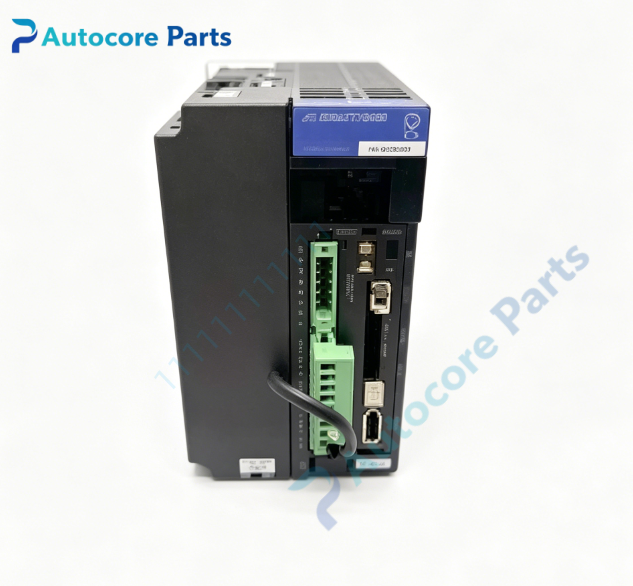

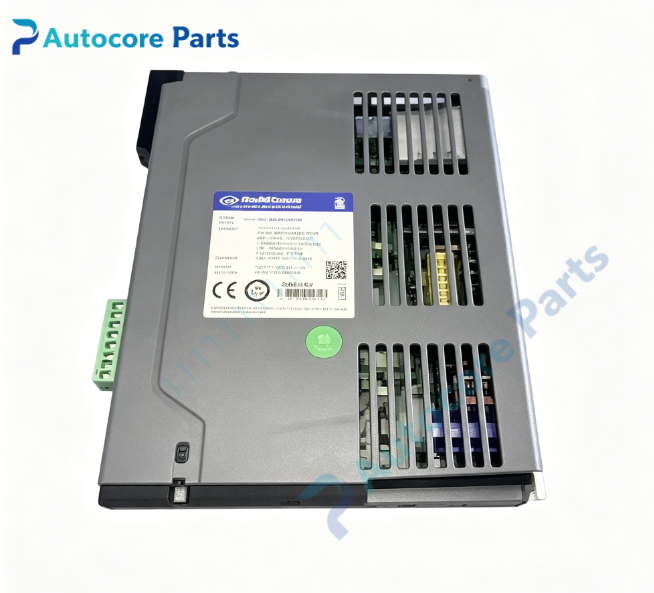

Sanyo Denki RS1A05AE Servo Amplifier

Module Feature

Sanyo Denki RS1A05AE belongs to SANMOTION RS series compact digital AC servo amplifier. AC200V single/three phase input. It adopts current and speed dual closed-loop vector control algorithm, delivering fast dynamic response and stable low-speed performance. Supports position, speed and torque control modes, accepting pulse train and analog command input. Built-in multi-protection functions including overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. Compact DIN rail mounting structure for easy cabinet installation and maintenance. Widely used for precision motion axis in semiconductor wet bench and chemical automation equipment.

Working principle

The upper motion controller sends motion commands to this servo amplifier. The drive converts AC200V input power into three-phase variable frequency AC power to drive matched SANMOTION servo motors. The encoder feeds real-time rotor position and speed signals back to the amplifier. High speed digital closed-loop calculation adjusts output current to realize precise torque, speed and position control. Once fault occurs, the amplifier cuts off power output immediately and triggers alarm signal.

Onboard components

Power IGBT module, digital main control PCB, pulse / analog command terminal block, encoder feedback connector, AC power terminal, front panel LED status indicators, emergency stop terminal.

LED indicators

Front panel LED indicators for power ready, servo ready, servo enable, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals, encoder connectors and PCB surface; power-on self-test; input voltage detection; motor wiring continuity inspection; alarm code reading and signal loop verification.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Model: RS1A05AE Input voltage: AC200V class (single / 3 phase) Control mode: Position / Speed / Torque Command interface: Pulse train, analog signal Cooling: Natural air cooling Protection: Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting: DIN rail

Mechanical & Structure

Mounting: Cabinet DIN rail installation Protection class: IP20

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: Sanyo Denki SANMOTION RS series AC servo amplifier

System compatibility

Compatible with Sanyo Denki SANMOTION R2 / RS series servo motors for automation precision axis positioning.

Function

RS1A05AE servo amplifier manufactured by Sanyo Denki. It provides power drive and closed-loop motion control for matched servo motors to achieve high precision positioning. Improper wiring, mechanical jam or incorrect parameter settings will trigger servo alarm and stop axis movement. It is compact motion control unit for semiconductor wet bench and chemical automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system completely. Mount servo amplifier on DIN rail and reserve enough space for heat dissipation. Wire AC power cable, motor power cable, encoder feedback cable and control signal cables. Configure servo parameters via SANMOTION software, perform motor jog test and positioning verification before formal operation.

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal block, emergency stop terminal, front LED indicators on housing of RS1A05AE.

Diagnostic

Servo not ready: Power supply missing or internal hardware damage.

Motor cannot rotate: Servo enable signal missing, wiring error or incorrect motor parameters.

Overload alarm: Mechanical jam, overloaded load or motor winding defect.

Encoder alarm: Damaged encoder cable, poor contact or encoder failure.

Product Brief

RS1A05AE Sanyo Denki SANMOTION RS series AC servo amplifier, AC200V class, digital dual closed-loop control, supports pulse and analog command, DIN rail mount, compatible with R2/RS series servo motors, for semiconductor wet bench and chemical automation precision motion axis control.
