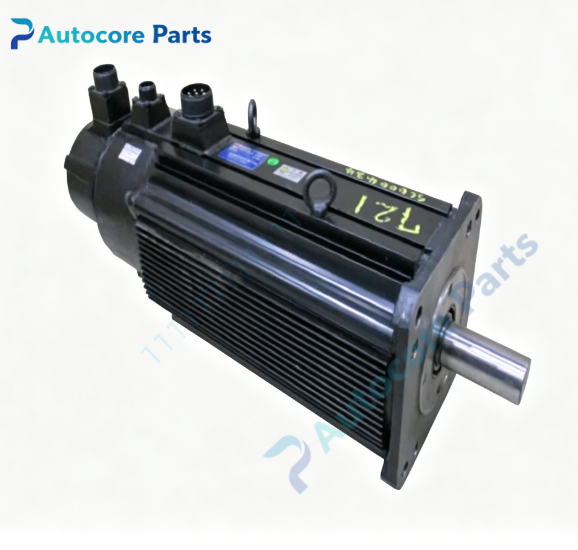

Sanyo Denki 61BM030BBAT0 AC Servo Motor

Module Feature

Sanyo Denki 61BM030BBAT0 belongs to SANMOTION BM series compact AC brushless servo motor. Rated power 300W, AC200V power supply, low inertia rotor design. Built-in high resolution rotary encoder for closed-loop position feedback. Small square flange structure, compact volume, high torque density, low torque ripple. High precision double ball bearing assembly, excellent vibration resistance and stable low-speed running characteristic. No built-in power-off holding brake, suitable for horizontal axis light load positioning application. Widely used for small precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched servo amplifier outputs three-phase AC power to motor windings. The built-in encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. Without power-off brake, external mechanical locking device should be equipped for vertical load application.

Onboard components:Motor stator & rotor assembly,built-in high resolution rotary encoder,precision double ball bearing set,aluminum housing,3-phase power connector,encoder feedback signal connector

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Rated power:300W Rated voltage:AC200V Rotor type:Low inertia Feedback:Built-in rotary encoder Brake:Without holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:Square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION BM compact AC servo motor

System compatibility

Compatible with Sanyo Denki RS / QS series servo drives for automation equipment light load axis positioning.

Function

61BM030BBAT0 servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for light load axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. It is compact small power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable and encoder feedback cable. Configure servo parameters via SANMOTION software, perform jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback connector on housing of 61BM030BBAT0.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing. Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch. Overheat alarm:Overloaded load or bearing wear. Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

61BM030BBAT0 Sanyo Denki SANMOTION BM compact 300W AC servo motor,AC200V,built-in high resolution encoder,square flange mount,no holding brake,for semiconductor wet bench and chemical delivery light load precision horizontal axis motion control.
