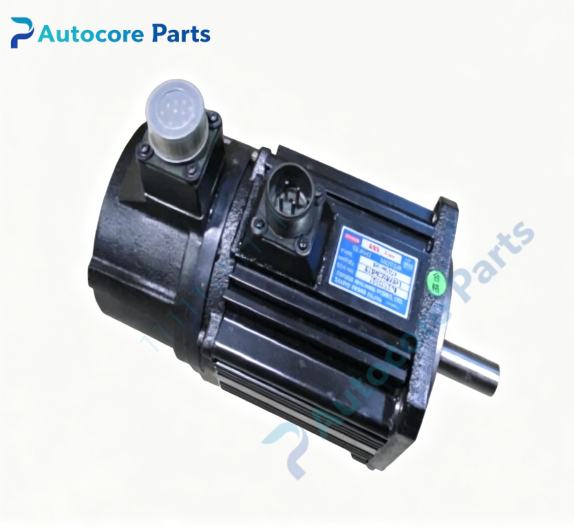

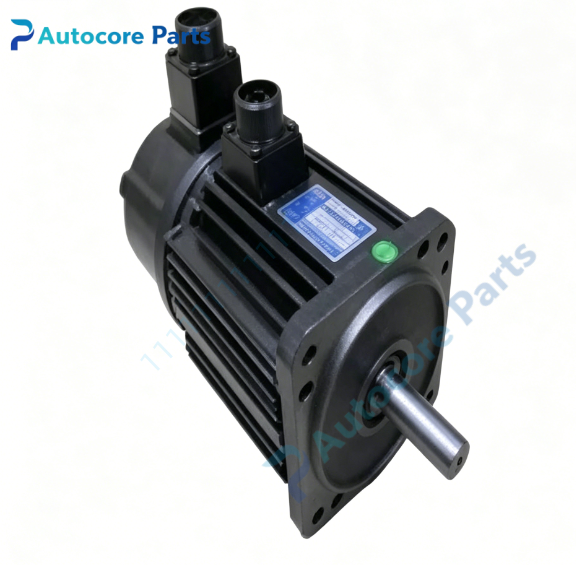

Sanyo Denki 61BM030BXAF0 AC Servo Motor

Module Feature

Sanyo Denki 61BM030BXAF0 belongs to SANMOTION BM series compact AC brushless servo motor. Rated power 300W, AC200V power class, low inertia rotor design. Built-in 24V electromagnetic power-off holding brake, it can lock the shaft immediately when brake power is cut off to prevent vertical load from falling. Equipped with high resolution rotary encoder for closed-loop position feedback. Small square flange structure, compact size, high torque density and low torque ripple. High precision double ball bearing assembly, good vibration resistance and stable low-speed performance. Widely used for light load vertical positioning axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The matched servo amplifier outputs three-phase AC power to motor windings. The built-in encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. When the brake power supply is disconnected, the 24V power-off brake locks the motor shaft to keep vertical load position.

Onboard components:Motor stator & rotor assembly,built-in high resolution rotary encoder,24V electromagnetic holding brake,precision double ball bearing set,aluminum housing,3-phase power connector,encoder feedback connector,brake wiring terminal

LED indicatorsNo LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; brake release and holding function test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Rated power:300W Rated voltage:AC200V Rotor type:Low inertia Feedback:Built-in high resolution rotary encoder Brake:24V DC electromagnetic holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:Square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION BM compact AC servo motor

System compatibility

Compatible with Sanyo Denki RS / QS series servo drives for automation equipment light load vertical axis positioning.

Function

61BM030BXAF0 servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for light vertical load axis. Winding damage,encoder failure or brake malfunction will trigger servo alarm and stop movement. It is compact small power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable,encoder feedback cable and 24V brake control wiring. Configure servo parameters via SANMOTION software, test brake function, perform jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback connector, 24V brake control connector on housing of 61BM030BXAF0.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing or brake not released. Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch. Overheat alarm:Overloaded load or bearing wear. Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

61BM030BXAF0 Sanyo Denki SANMOTION BM compact 300W AC servo motor,AC200V,built-in 24V holding brake,square flange mount,for semiconductor wet bench and chemical delivery light load vertical axis precision motion control.
