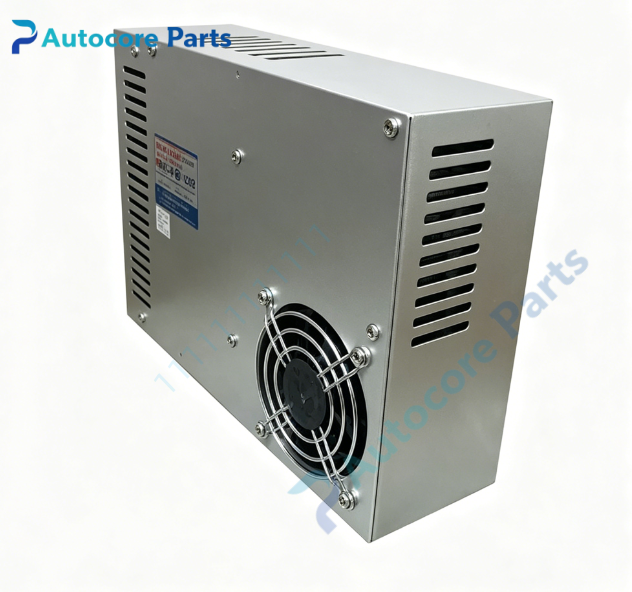

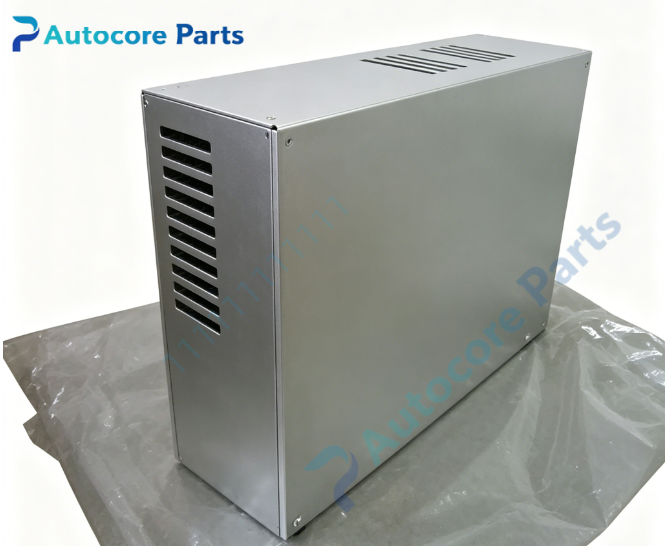

Sanyo Denki PMM-BA-5604 Stepper Motor Driver

Module Feature

Sanyo Denki PMM-BA-5604 belongs to PMM series digital stepper motor driver. Power supply input AC100/115V, 50/60Hz. Adopts micro-step driving technology, low vibration and low noise during operation. Supports pulse + direction command input, compatible with upper motion controller pulse signal output. Built-in protection functions including overcurrent, overvoltage, overheat and motor wiring fault protection. Compact structure, simple wiring, suitable for cabinet installation. Widely used for light load precision positioning axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle

The upper controller sends pulse and direction signal to this stepper driver. The driver converts AC100/115V input power into multi-phase current to drive matched Sanyo Denki stepper motor. The driver changes current phase sequence according to pulse instruction to realize precise angular rotation and linear positioning. When fault detected, the driver will cut off output and trigger alarm signal.

Onboard components

Power rectifier module,IGBT power output chip,digital control PCB,pulse/direction signal terminal block,motor phase wiring terminal,AC power input terminal,status LED indicators,alarm output terminal

LED indicators

Front panel LED indicators for power ready,run status and fault alarm.

Hardware self-diagnosis

Visual inspection of power terminals and motor wiring terminals; power-on self-test; input voltage detection; motor phase wiring continuity inspection; read alarm code and check signal loop.

Programming software

Sanyo Denki parameter setting software for micro-step resolution setting and alarm log reading.

Electrical & Process Parameters

Model:PMM-BA-5604 Input voltage:AC100/115V,50/60Hz Command type:Pulse + Direction Control mode:Open loop stepping drive Cooling:Natural air cooling Protection:Overcurrent, overvoltage, overheat, motor wiring error Mounting:Cabinet mounting

Mechanical & Structure

Mounting:Panel mounting Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki PMM series stepper motor driver

System compatibility

Compatible with Sanyo Denki matching PMM series stepper motors for automation light load precision positioning.

Function

PMM-BA-5604 driver manufactured by Sanyo Denki. It provides phase current driving for matched stepper motors, converting pulse command into mechanical rotation to realize high precision positioning. Improper wiring, overload or wrong parameter setting will trigger alarm and stop axis movement. It is compact stepper motion control unit for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole system completely. Fix driver on cabinet panel. Wire AC power cable, motor phase cable and pulse/direction control signal. Configure micro-step resolution via software, perform motor jog test and positioning verification before formal operation.

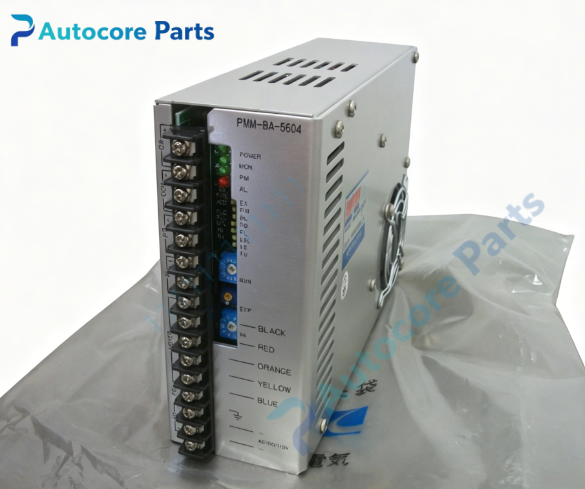

InterfaceAC power input terminal, motor phase output terminal, pulse/direction signal terminal, alarm output terminal, front status LED indicators on housing of PMM-BA-5604.

Diagnostic

Driver no ready:Power supply missing or internal hardware damage.

Motor no rotation:Pulse enable signal missing, wiring error or wrong micro-step parameter.

Overcurrent alarm:Motor short circuit, wiring fault or internal power module damage.

Overheat alarm:Poor ventilation or continuous overload operation.

Product Brief

PMM-BA-5604 Sanyo Denki PMM series stepper motor driver,AC100/115V input,micro-step drive,supports pulse and direction command,panel mounting,matching PMM series stepper motors,for semiconductor wet bench and chemical delivery light load precision motion axis control.
